S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

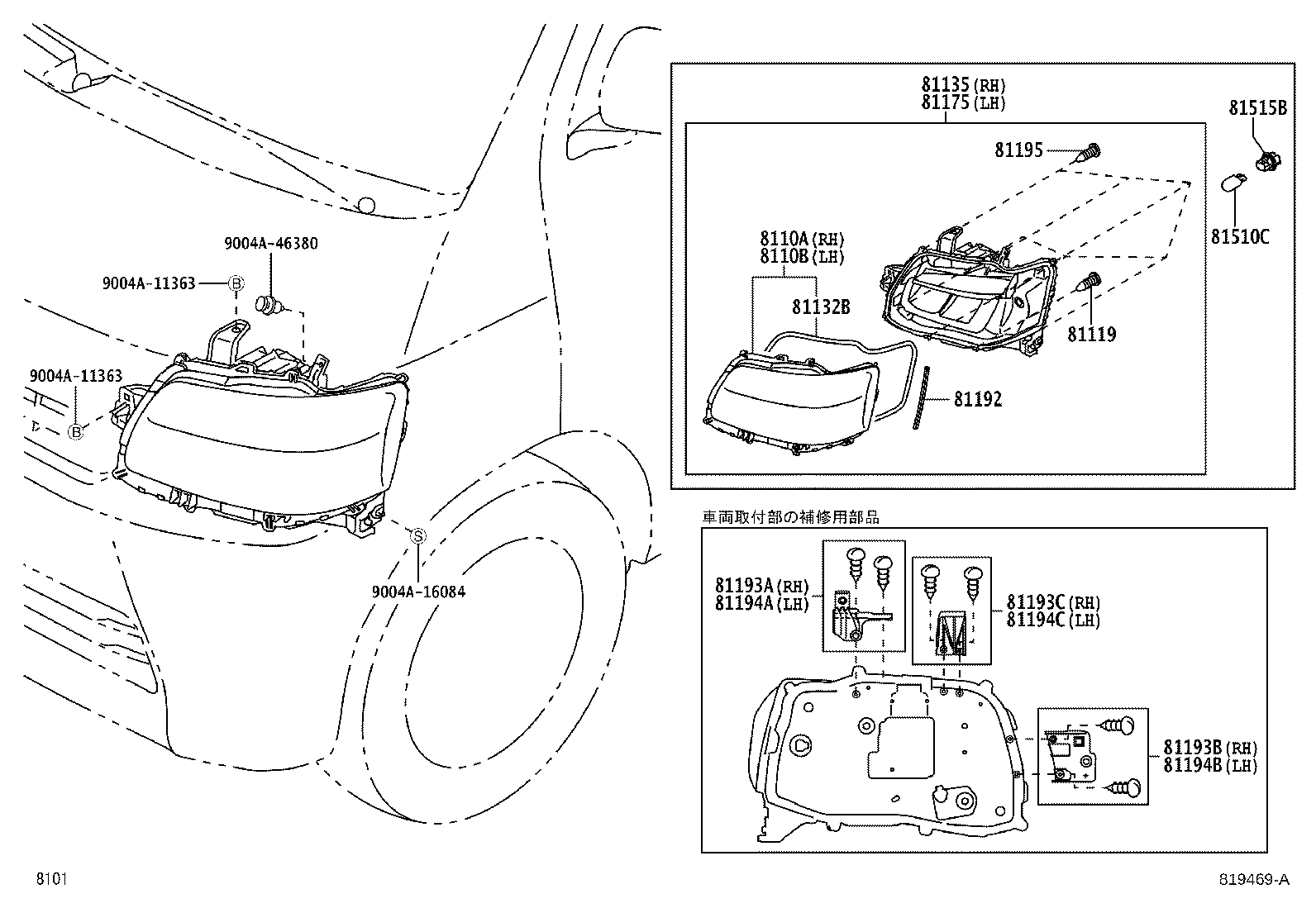

Click highlighted areas on diagram

diagram 8110A 8110B 81119 81132B 81135 81175 81192 81193A 81193B 81193C 81194A 81194B 81194C 81195 81510C 81515B 9004A11363 9004A11363 9004A16084 9004A46380
Part # Description Qty Price
8110A - LENS SUB-ASSY, HEADLAMP, RH
8110A-BZ010

S403,413

 1
8110B - LENS SUB-ASSY, HEADLAMP, LH
8110B-BZ010

S403,413

 1
81119 - SCREW, HEADLAMP
81195-B2120

S403,413

 2
81132B - GASKET, HEADLAMP LENS
81132-B2010

S403,413

 2
81135 - UNIT ASSY, HEADLAMP, RH
81105-BZ010

S403,413

 1
81175 - UNIT ASSY, HEADLAMP, LH
81106-BZ010

S403,413

 1
81192 - SEAL, HEADLAMP
81192-BZ020

S403,413

ｽﾎﾟﾝｼﾞ ｺﾞﾑ

 2
81193A - PROTECTOR, HEADLAMP, RH
81193-BZ040

S403,413

 1
81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2
81193-BZ020

S403,413

 1
81193C - RETAINER, RH HEADLAMP PROTECTOR, UPPER RH
81193-BZ031

S403,413

 1
81194A - PROTECTOR, HEADLAMP, LH
81194-BZ040

S403,413

 1
81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2
81194-BZ020

S403,413

 1
81194C - RETAINER, LH HEADLAMP PROTECTOR, UPPER RH
81194-BZ031

S403,413

 1
81195 - SCREW, HEADLAMP
81195-B2020

S403,413

 12
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
9004A-81031

S403,413

12V 21W AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
81945-B1010

S403,413

 2
Common parts
9004A-11363
9004A-16084
9004A-46380
