S413M-ZMDFJD (2020)
Toyota Lite/Townace
Production
Jul 2020
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )
Click highlighted areas on diagram

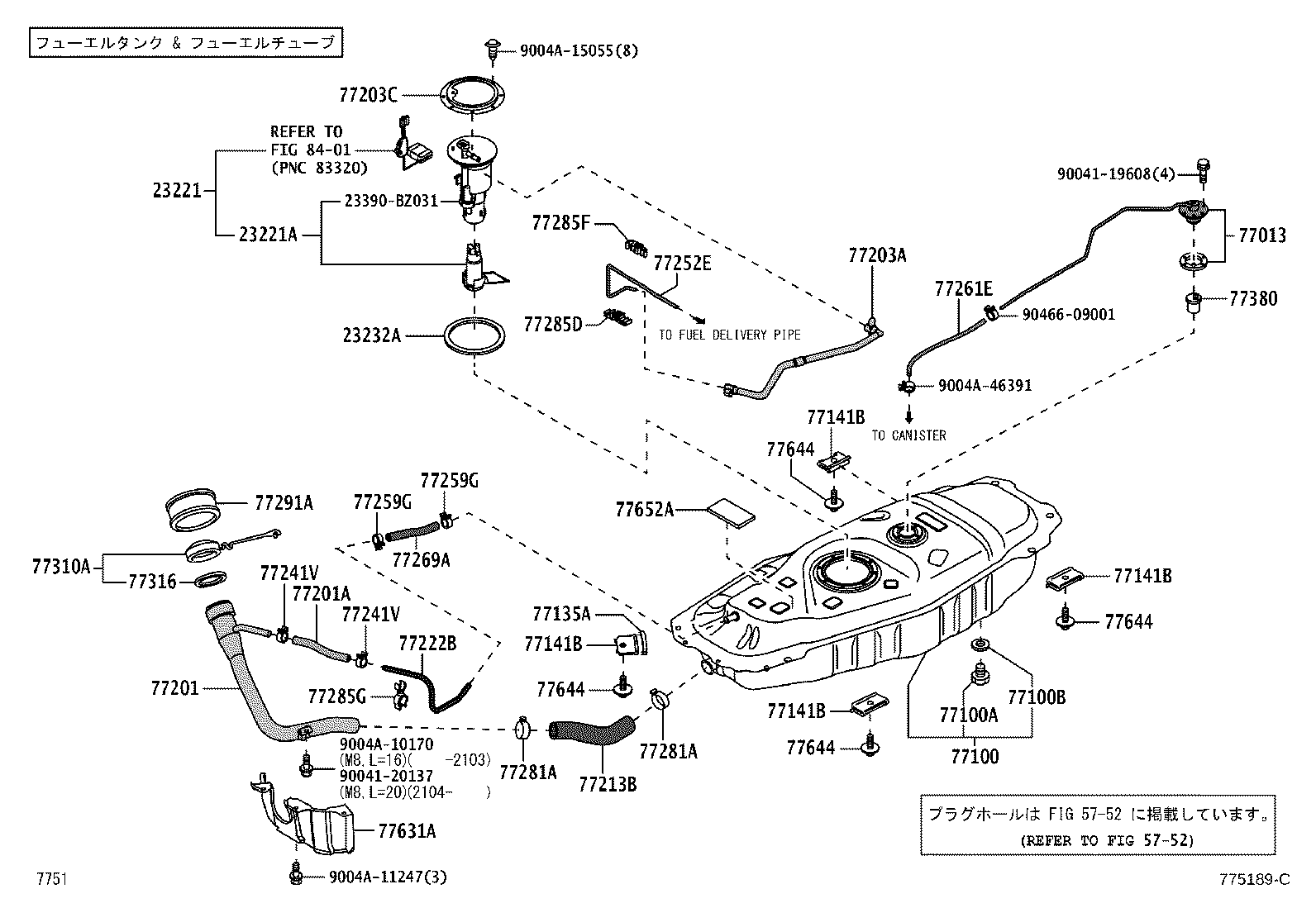

TANK&TUBING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23210-BZ020 |
2NRVE..S403,413 |
1 | ||
| 23221A - PUMP, FUEL, NO.1 | ||||
| 23100-BZ181 |
2NRVE..S403,413 |
1 | ||
| 23232A - GASKET, FUEL PUMP | ||||
| 23232-BZ010 |
2NRVE..S403,413 |
1 | ||
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77013-BZ030 |
S403,413 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-BZ610 |
S403,413 |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 9004A-10137 |
S403,413 |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90044-30291 |
S403,413 |
1 | ||
| 77135A - PROTECTOR, FUEL TANK SIDE | ||||
| 55358-BZ090 |
S403,413 |
1 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-BZ090 |
S403,413 |
4 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-BZ090 |
S403,413 |
4 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-BZ090 |
S403,413 |
4 | ||
| 77141B - REINFORCEMENT, FUEL TANK FLANGE, NO.1 | ||||
| 77141-BZ090 |
S403,413 |
4 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-BZ220 |
S403,413 |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 77269-BZ060 |
S403,413 長さ=195 |
1 | ||
| 77203A - TUBE SUB-ASSY, FUEL SUCTION | ||||
| 77203-BZ120 |
S403,413 |
1 | ||
| 77203C - BRACKET, FUEL PUMP | ||||
| 23265-BZ010 |
S403,413 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-BZ060 |
S403,413 |
1 | ||
| 77222B - TUBE, FUEL TANK BREATHER, NO.2 | ||||
| 77222-BZ030 |
S403,413 |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 90959-04001 |
S403,413 |
2 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 90959-04001 |
S403,413 |
2 | ||
| 77252E - TUBE, FUEL MAIN, NO.2 (FOR FRONT FUEL MAIN) | ||||
| 77251-BZ360 |
S403,413..VAN |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90959-04001 |
S403,413 |
2 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90959-04001 |
S403,413 |
2 | ||
| 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) | ||||
| 77259-BZ030 |
S403,413 |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-BZ060 |
S403,413 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 90044-60129 |
S403,413 |
2 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 90044-60129 |
S403,413 |
2 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-BZ010 |
S403,413 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-BZ010 |
S403,413 |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 23841-B5010 |
S403,413 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-BZ041 |
S403,413 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
S403,413 |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
S403,413 |
1 | ||
| 77380 - VALVE ASSY, FUEL CUT OFF | ||||
| 77380-0K010 |
S403,413 |
1 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-BZ030 |
S403,413 |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20292 |
S403,413 |
4 | ||
| 90041-20155 |
S403,413 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20292 |
S403,413 |
4 | ||
| 90041-20155 |
S403,413 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20292 |
S403,413 |
4 | ||
| 90041-20155 |
S403,413 |
4 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 90041-20292 |
S403,413 |
4 | ||
| 90041-20155 |
S403,413 |
4 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77651-BZ030 |
S403,413 |
1 | ||
| Common parts | ||||
| 23390-BZ031 | ||||
| 90041-19608 | ||||
| 90041-20137 | ||||
| 9004A-10170 | ||||
| 9004A-11247 | ||||
| 9004A-15055 | ||||
| 9004A-46391 | ||||
| 90466-09001 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 8401 | ||||
(2007- )
Click highlighted areas on diagram

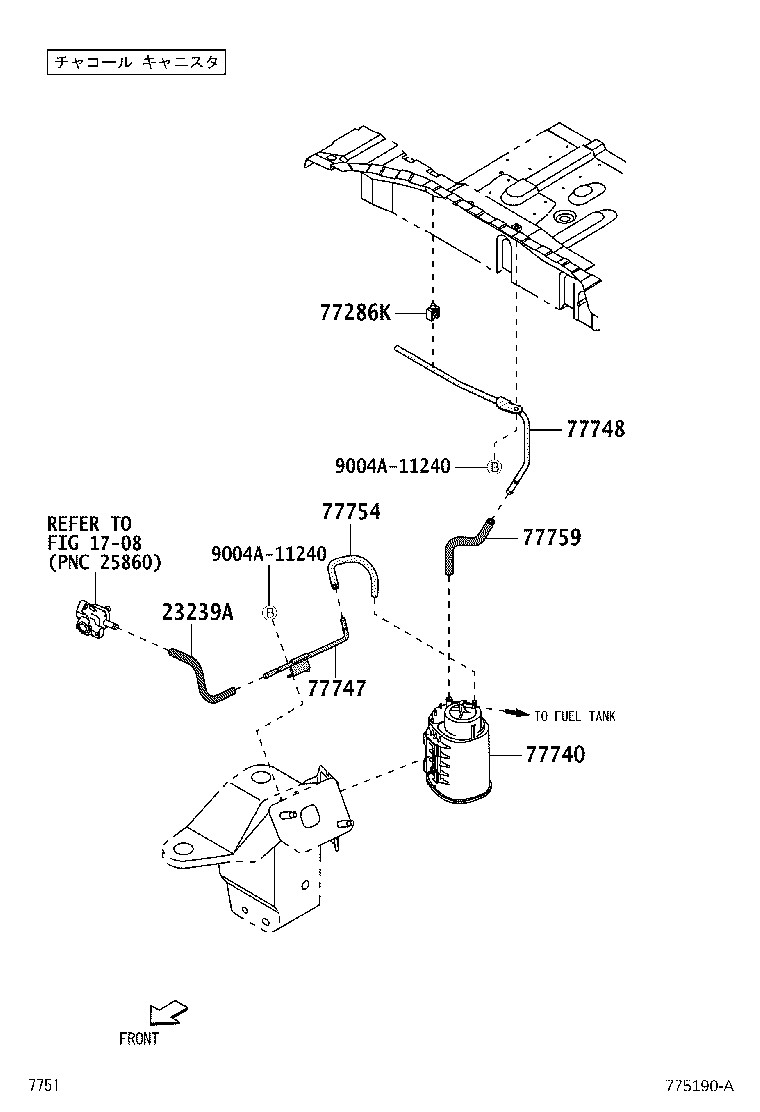

CANISTER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23239A - HOSE | ||||
| 77795-BZ120 |
2NRVE..S403,413 |
1 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 9004A-46361 |
S403,413 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-BZ100 |
S403,413 |
1 | ||
| 77747 - PIPE, CHARCOAL CANISTER, NO.1 | ||||
| 77747-BZ060 |
S403,413 |
1 | ||
| 77748 - PIPE, CHARCOAL CANISTER, NO.2 | ||||
| 77748-BZ020 |
S403,413 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-BZ390 |
S403,413 # |
1 | ||
| 77759 - HOSE, CHARCOAL CANISTER | ||||
| 77759-BZ180 |
S403,413 # |
1 | ||
| Common parts | ||||
| 9004A-11240 | ||||
| Linked diagrams | ||||
| 1708 | ||||
(2007- )
Click highlighted areas on diagram

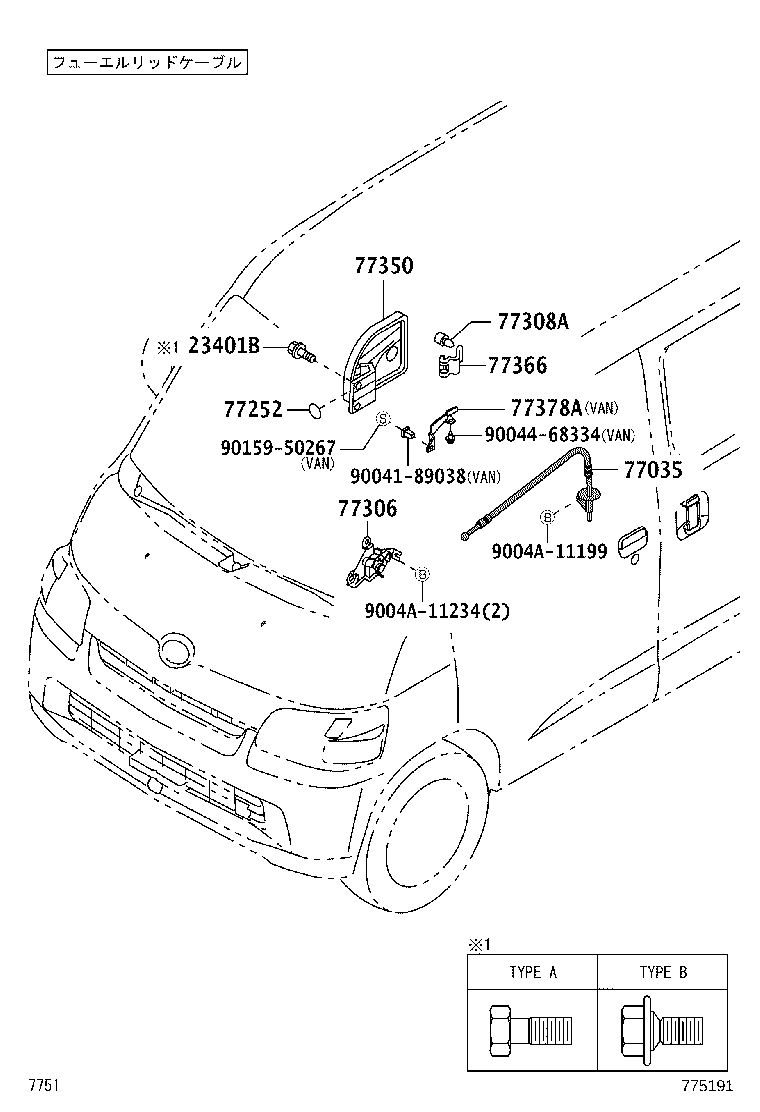

FUEL LID CABLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23401B - BOLT | ||||
| 90041-05448 |
2NRVE..S403,413 ﾀｲﾌﾟ B |
2 | ||
| 91621-B0612 |
2NRVE..S403,413 ﾀｲﾌﾟ A |
2 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-BZ080 |
S403,413 |
1 | ||
| 77252 - PROTECTOR, FUEL TUBE | ||||
| 87268-BZ030 |
S403,413 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-B5021 |
S403,413 |
1 | ||
| 77308A - CUSHION(FOR FUEL INLET BOX COVER) | ||||
| 9004A-54027 |
S403,413 |
2 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-BZ051 |
S403,413 ﾎﾞﾙﾄ径=M6 |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-B2050 |
S403,413 |
1 | ||
| 77378A - COVER, FUEL FILLER OPENING LID LOCK | ||||
| 77399-BZ010 |
S403,413..VAN |
1 | ||
| Common parts | ||||
| 90041-89038 | ||||
| 90044-68334 | ||||
| 9004A-11199 | ||||
| 9004A-11234 | ||||
| 90159-50267 | ||||
