S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

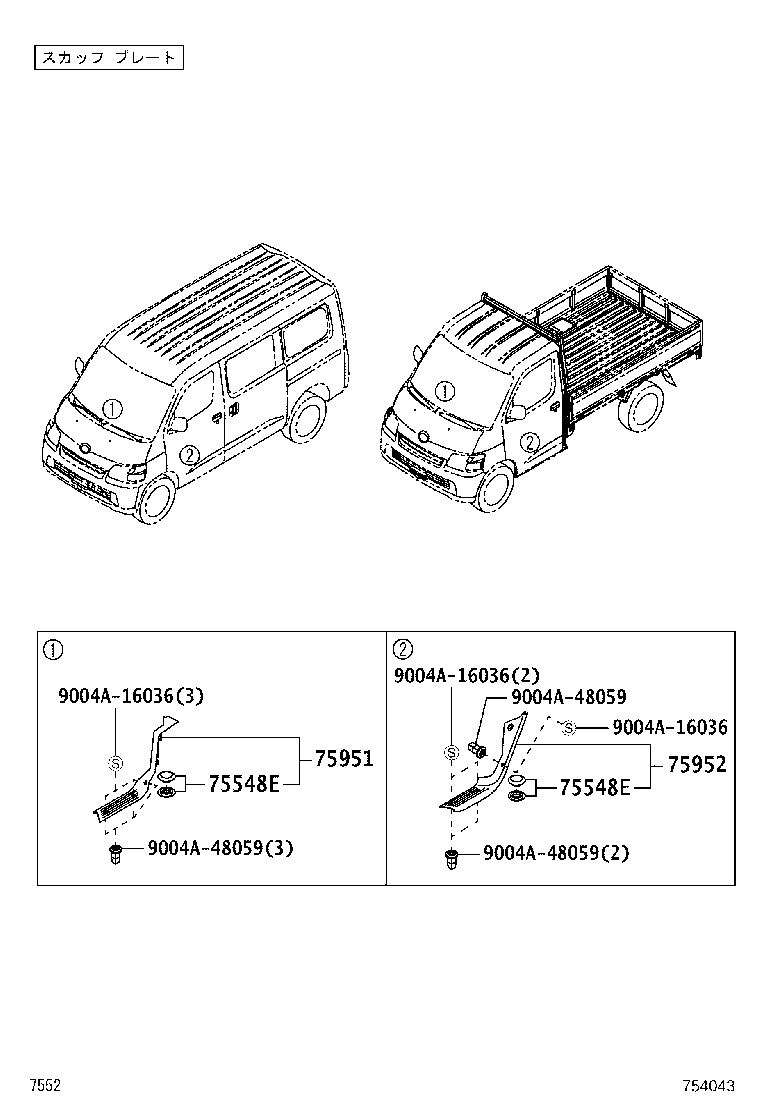

ILLUST NO. 2 OF 2(2007- )

Click highlighted areas on diagram

ｽｶｯﾌﾌﾟﾚｰﾄ

diagram 75548E 75548E 75951 75952 9004A16036 9004A16036 9004A16036 9004A48059 9004A48059 9004A48059
Part # Description Qty Price
75548E - FASTENER, WINDSHIELD OUTSIDE MOULDING
58521-BZ500B0

S403,413

DK.GRAY,TRIM1#

 2
75548E - FASTENER, WINDSHIELD OUTSIDE MOULDING
58521-BZ500B0

S403,413

DK.GRAY,TRIM1#

 2
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-BZ190B0

S403,413

DK.GRAY,TRIM1#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67914-BZ190B0

S403,413

DK.GRAY,TRIM1#

 1
Common parts
9004A-16036
9004A-48059
