S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

Click highlighted areas on diagram

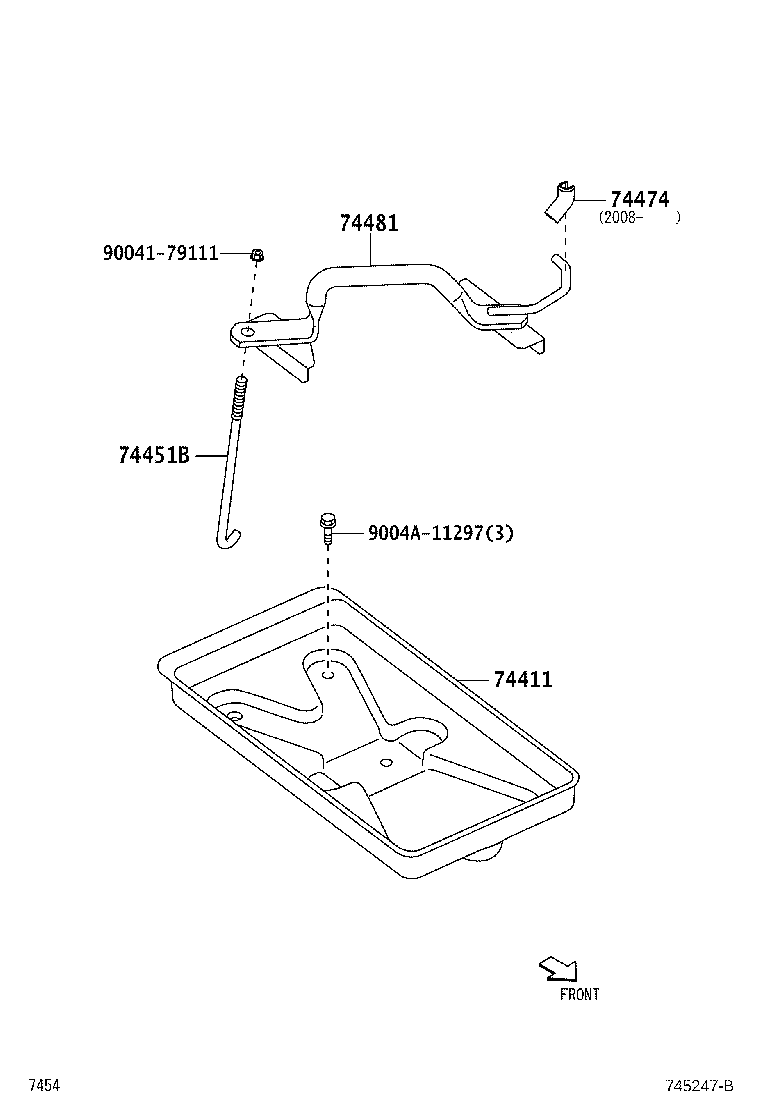

diagram 74411 74451B 74474 74481 9004179111 9004A11297
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-BZ130

S403,413

 1
74451B - BOLT, BATTERY CLAMP
74451-BZ140

S403,413

 1
74474 - PAD, BATTERY
74423-BZ020

S403,413

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-BZ181

S403,413

 1
Common parts
90041-79111
9004A-11297
