S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

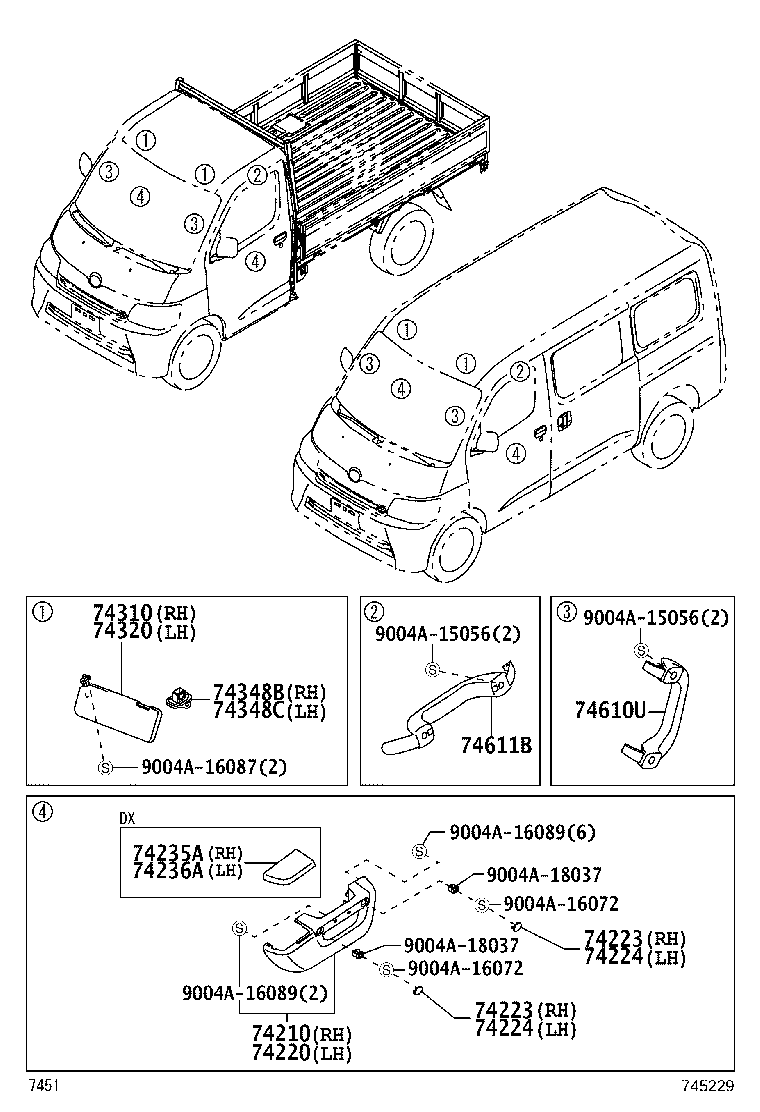

Click highlighted areas on diagram

diagram 74210 74220 74223 74223 74224 74224 74235A 74236A 74310 74320 74348B 74348C 74610U 74611B 9004A15056 9004A15056 9004A16072 9004A16072 9004A16087 9004A16089 9004A16089 9004A18037 9004A18037
Part # Description Qty Price
74210 - ARMREST ASSY, FRONT, RH
74210-BZ021B1

S403,413

DK.GRAY,TRIM1#

 1
74220 - ARMREST ASSY, FRONT, LH
74220-BZ011B1

S403,413

DK.GRAY,TRIM1#

 1
74223 - CAP, DOOR ARMREST, RH
74223-BZ010B0

S403,413

DK.GRAY,TRIM1#

 2
74223 - CAP, DOOR ARMREST, RH
74223-BZ010B0

S403,413

DK.GRAY,TRIM1#

 2
74224 - CAP, DOOR ARMREST, LH
74223-BZ010B0

S403,413

DK.GRAY,TRIM1#

 2
74224 - CAP, DOOR ARMREST, LH
74223-BZ010B0

S403,413

DK.GRAY,TRIM1#

 2
74310 - VISOR ASSY, RH
74310-BZA30B0

S403,413..IV;S403,413..VAN

LT.GRAY,TRIM1#

 1
74320 - VISOR ASSY, LH
74320-BZ830B0

S403,413

LT.GRAY,TRIM1#

 1
74348B - HOLDER, VISOR, RH
74348-BZ060B0

S403,413

LT.GRAY,TRIM1#

 1
74348C - HOLDER, VISOR, LH
74348-BZ060B0

S403,413

LT.GRAY,TRIM1#

 1
74610U - GRIP ASSY, ASSIST
74610-BZ030B0

S403,413

LT.GRAY,TRIM1#

 2
74611B - GRIP, ASSIST
74611-87Z06B0

S403,413

LT.GRAY,TRIM1#

 1
Common parts
9004A-15056
9004A-16072
9004A-16087
9004A-16089
9004A-18037
