S413M-ZMDFJD (2020)
Toyota Lite/Townace
Production
Jul 2020
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )VAN
Click highlighted areas on diagram

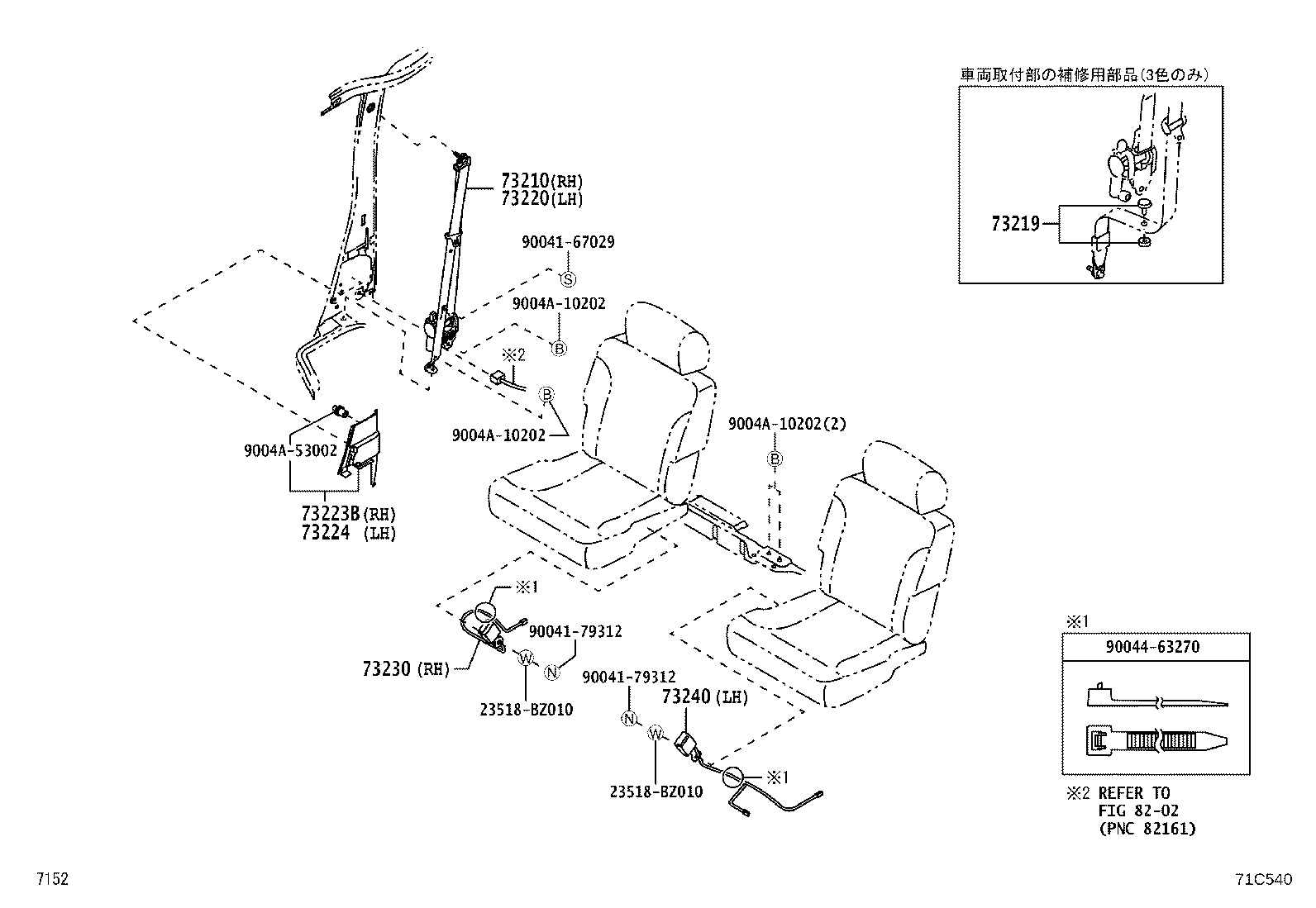

ﾌﾛﾝﾄｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-BZ700B0 |
S403,413..VAN SHADOW GRAY,TRIM1# |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
S403,413 ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
S403,413 ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
S403,413 ﾍﾞｰｼﾞｭ |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-BZ550B0 |
S403,413..VAN SHADOW GRAY,TRIM1# |
1 | ||
| 73223B - COVER, FRONT SEAT BELT RETRACTOR, RH | ||||
| 73223-BZ010B0 |
S403,413..VAN DK.GRAY,TRIM1# |
1 | ||
| 73224 - COVER, FRONT SEAT BELT RETRACTOR, LH | ||||
| 73224-BZ040B0 |
S403,413..VAN DK.GRAY,TRIM1# |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-BZ820B0 |
S403,413..VAN DK.GRAY,TRIM1# |
1 | ||
| 73240 - BELT ASSY, FRONT SEAT INNER, LH | ||||
| 73230-BZ830B0 |
S403,413..VAN DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 23518-BZ010 | ||||
| 90041-67029 | ||||
| 90041-79312 | ||||
| 90044-63270 | ||||
| 9004A-10202 | ||||
| 9004A-53002 | ||||
| Linked diagrams | ||||
| 8202 | ||||
(2007- )VAN
Click highlighted areas on diagram

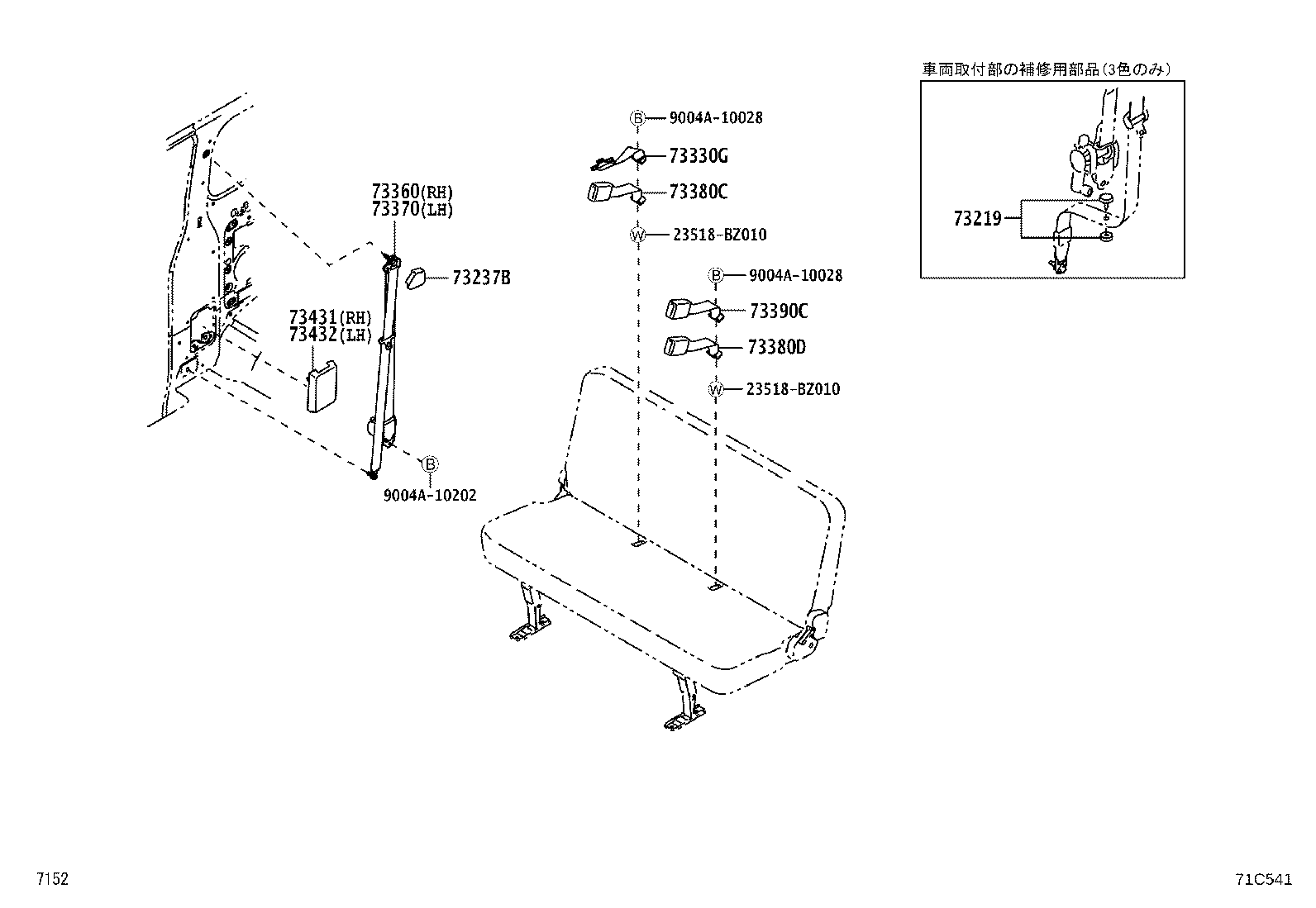

ﾘﾔｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
S403,413 ﾌﾞﾗｯｸ |
1 | ||
| 73219-33020 |
S403,413 ｸﾞﾚｰ |
1 | ||
| 73219-33030 |
S403,413 ﾍﾞｰｼﾞｭ |
1 | ||
| 73237B - COVER, SHOULDER BELT ANCHOR | ||||
| 73237-BZ010B1 |
S403,413..VAN DK.GRAY,TRIM1# |
2 | ||
| 73330G - BELT ASSY, RR SEAT LAP TYPE | ||||
| 73330-BZ150B0 |
S403,413..VAN SHADOW GRAY,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-BZ280B0 |
S403,413..VAN SHADOW GRAY,TRIM1# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-BZ280B0 |
S403,413..VAN SHADOW GRAY,TRIM1# |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-BZ250B0 |
S403,413..VAN SHADOW GRAY,TRIM1# |
1 | ||
| 73380D - BELT ASSY, REAR SEAT, INNER | ||||
| 73340-BZ140B0 |
S403,413..VAN SHADOW GRAY,TRIM1# |
1 | ||
| 73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH | ||||
| 73380-BZ250B0 |
S403,413..VAN SHADOW GRAY,TRIM1# |
1 | ||
| 73432 - COVER, REAR SEAT BELT RETRACTOR, LH | ||||
| 73223-BZ030B0 |
S403,413..VAN DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 23518-BZ010 | ||||
| 9004A-10028 | ||||
| 9004A-10202 | ||||
