S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )VAN

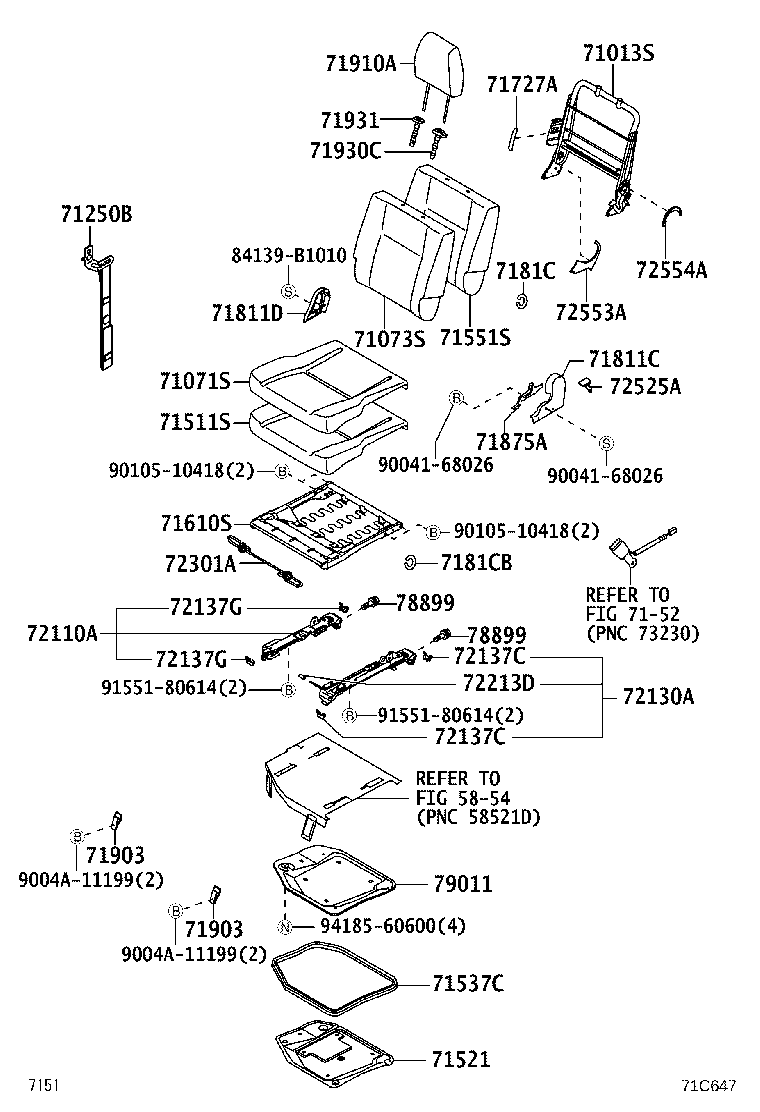

Click highlighted areas on diagram

ｳﾝﾃﾝｾｷ

diagram 5854 71013S 71071S 71073S 71250B 71511S 7152 71521 71537C 71551S 71610S 71727A 71811C 71811D 7181C 7181CB 71875A 71903 71903 71910A 71930C 71931 72110A 72130A 72137C 72137C 72137G 72137G 72213D 72301A 72525A 72553A 72554A 78899 78899 79011 84139B1010 9004168026 9004168026 9004A11199 9004A11199 9010510418 9010510418 9155180614 9155180614 9418560600
Part # Description Qty Price
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-BZ130

S403,413..VAN

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-BZM70B0

S403,413..VAN

GRAY,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-BZN80B0

S403,413..VAN

GRAY,TRIM1#

 1
71250B - BRACKET ASSY, SEAT, OUTER RH
71250-BZ020

S403,413..VAN

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-BZ510

S403,413..VAN

 1
71521 - PAD, FRONT SEAT CUSHION SILENCER, A
58431-BZ040

S403,413..VAN

 1
71537C - PROTECTOR, FRONT SEAT CUSHION EDGE, RH
58435-BZ030

S403,413

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71505-BZ520

S403,413..VAN

 1
71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71610-BZ140

S403,413..VAN

 1
71727A - TRIM, SEAT CORNER, NO.1
71727-BZ010

S403,413..VAN

 2
71811C - COVER, RECLINING ADJUSTER, RH
71811-BZ290B0

S403,413..VAN

DK.GRAY,TRIM1#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-BZ280B0

S403,413..VAN

DK.GRAY,TRIM1#

 1
7181C - RING, HOG, SMALL (FOR FRONT SEAT BACK)
9004A-46143

S403,413..VAN

 3
7181CB - RING, HOG, SMALL (FOR FRONT SEAT CUSHION)
9004A-46143

S403,413

 18
71875A - COVER, RECLINING ADJUSTER INSIDE, RH
71875-BZ090B0

S403,413..VAN

DK.GRAY,TRIM1#

 1
71903 - CATCH SUB-ASSY, SEAT CUSHION, FRONT
72504-B5022

S403,413

 4
71903 - CATCH SUB-ASSY, SEAT CUSHION, FRONT
72504-B5022

S403,413

 4
71910A - HEADREST ASSY, FRONT SEAT
71910-BZG00B0

S403,413..VAN

GRAY,TRIM1#

 2
71930C - SUPPORT, FRONT SEAT HEADREST, LH
71930-BZ050B0

S403,413..VAN

DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-BZ060B0

S403,413..VAN

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
72110A - TRACK ASSY, FRONT SEAT, OUTER RH
72110-BZ270

S403,413..VAN

 1
72130A - TRACK ASSY, FRONT SEAT, INNER RH
72130-BZ280

S403,413..VAN

 1
72137C - COVER, SEAT TRACK INNER, RH
72137-BZ011

S403,413

 2
72137C - COVER, SEAT TRACK INNER, RH
72137-BZ011

S403,413

 2
72137G - COVER, SEAT TRACK, OUTER RH
72137-BZ011

S403,413

 2
72137G - COVER, SEAT TRACK, OUTER RH
72137-BZ011

S403,413

 2
72213D - KNOB, SEAT TRACK ADJUSTING HANDLE
72213-BZ010

S403,413..VAN

 1
72301A - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, RH
72301-BZ030

S403,413

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-B5010B2

S403,413..VAN

DK.GRAY,TRIM1#

 1
72553A - PROTECTOR, RECLINING COVER, RH
72553-BZ010B0

S403,413..VAN

DK.GRAY,TRIM1#

 1
72554A - PROTECTOR, RECLINING COVER, LH
72553-BZ020B0

S403,413..VAN

DK.GRAY,TRIM1#

 1
78899 - BOLT, FRONT SEAT
90041-05547

S403,413

M8,L=23.5

 4
78899 - BOLT, FRONT SEAT
90041-05547

S403,413

M8,L=23.5

 4
79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH
58410-BZ270

S403,413

 1
Common parts
84139-B1010
90041-68026
9004A-11199
90105-10418
91551-80614
94185-60600
Linked diagrams
5854
7152

(2007- )VAN

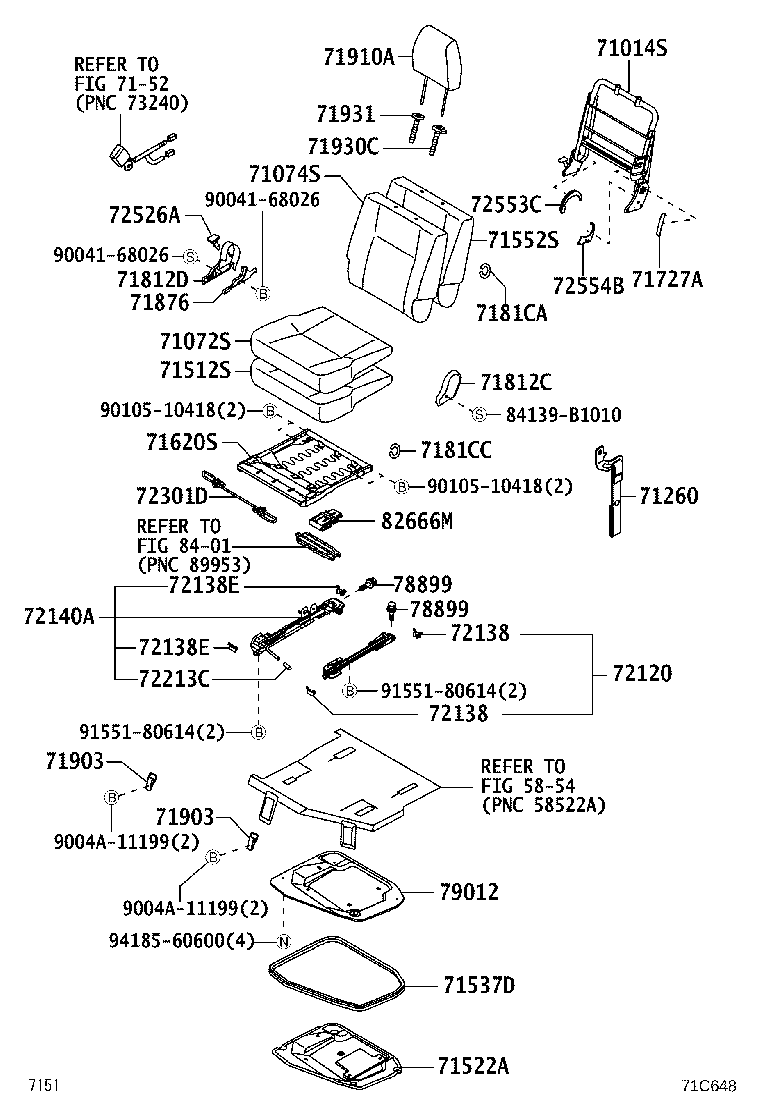

Click highlighted areas on diagram

ｼﾞｮｼｭｾｷ

diagram 5854 71014S 71072S 71074S 71260 71512S 7152 71522A 71537D 71552S 71620S 71727A 71812C 71812D 7181CA 7181CC 71876 71903 71903 71910A 71930C 71931 72120 72138 72138 72138E 72138E 72140A 72213C 72301D 72526A 72553C 72554B 78899 78899 79012 82666M 8401 84139B1010 9004168026 9004168026 9004A11199 9004A11199 9010510418 9010510418 9155180614 9155180614 9418560600
Part # Description Qty Price
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-BZ140

S403,413..VAN

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-BZM70B0

S403,413..VAN

GRAY,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-BZK00B0

S403,413..VAN

GRAY,TRIM1#

 1
71260 - BRACKET ASSY, SEAT, OUTER LH
71260-BZ020

S403,413..VAN

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71502-BZ450

S403,413..VAN

 1
71522A - PAD, FRONT SEAT CUSHION SILENCER, B
58441-BZ090

S403,413..VAN

 1
71537D - PROTECTOR, FRONT SEAT CUSHION EDGE, LH
58436-BZ040

S403,413

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71506-BZ390

S403,413..VAN

 1
71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71610-BZ140

S403,413..VAN

 1
71727A - TRIM, SEAT CORNER, NO.1
71727-BZ010

S403,413..VAN

 2
71812C - COVER, RECLINING ADJUSTER, LH
71812-BZ240B0

S403,413..VAN

DK.GRAY,TRIM1#

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-BZ230B0

S403,413..VAN

DK.GRAY,TRIM1#

 1
7181CA - RING, HOG, SMALL (FOR FRONT SEAT BACK)
9004A-46143

S403,413..VAN

 3
7181CC - RING, HOG, SMALL (FOR FRONT SEAT CUSHION)
9004A-46143

S403,413

 18
71876 - COVER, RECLINING ADJUSTER INSIDE, LH
71876-BZ070B0

S403,413..VAN

DK.GRAY,TRIM1#

 1
71903 - CATCH SUB-ASSY, SEAT CUSHION, FRONT
72504-B5022

S403,413

 4
71903 - CATCH SUB-ASSY, SEAT CUSHION, FRONT
72504-B5022

S403,413

 4
71910A - HEADREST ASSY, FRONT SEAT
71910-BZG00B0

S403,413..VAN

GRAY,TRIM1#

 2
71930C - SUPPORT, FRONT SEAT HEADREST, LH
71930-BZ050B0

S403,413..VAN

DK.GRAY,TRIM1#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-BZ060B0

S403,413..VAN

ﾛｯｸ無,DK.GRAY,TRIM1#

 2
72120 - TRACK ASSY, FRONT SEAT, OUTER LH
72120-BZ250

S403,413..VAN

 1
72138 - COVER, SEAT TRACK, OUTER LH
72137-BZ011

S403,413

 2
72138 - COVER, SEAT TRACK, OUTER LH
72137-BZ011

S403,413

 2
72138E - COVER, SEAT TRACK, INNER LH
72137-BZ011

S403,413

 2
72138E - COVER, SEAT TRACK, INNER LH
72137-BZ011

S403,413

 2
72140A - TRACK ASSY, FRONT SEAT,INNER LH
72140-BZ260

S403,413..VAN

 1
72213C - KNOB, SEAT TRACK ADJUSTING HANDLE, LH
72213-BZ010

S403,413

 1
72301D - WIRE SUB-ASSY, SEAT TRACK EQUALIZING, LH
72301-BZ030

S403,413

 1
72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-B5010B2

S403,413..VAN

DK.GRAY,TRIM1#

 1
72553C - PROTECTOR, RECLINING COVER, RH
72554-BZ020B0

S403,413..VAN

DK.GRAY,TRIM1#

 1
72554B - PROTECTOR, RECLINING COVER, LH
72554-BZ010B0

S403,413..VAN

DK.GRAY,TRIM1#

 1
78899 - BOLT, FRONT SEAT
90041-05547

S403,413

M8,L=23.5

 4
78899 - BOLT, FRONT SEAT
90041-05547

S403,413

M8,L=23.5

 4
79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
58420-BZ070

S403,413

 1
82666M - HOLDER, CONNECTOR
82666-22150

S403,413

 1
Common parts
84139-B1010
90041-68026
9004A-11199
90105-10418
91551-80614
94185-60600
Linked diagrams
5854
7152
8401

(2007- )VAN

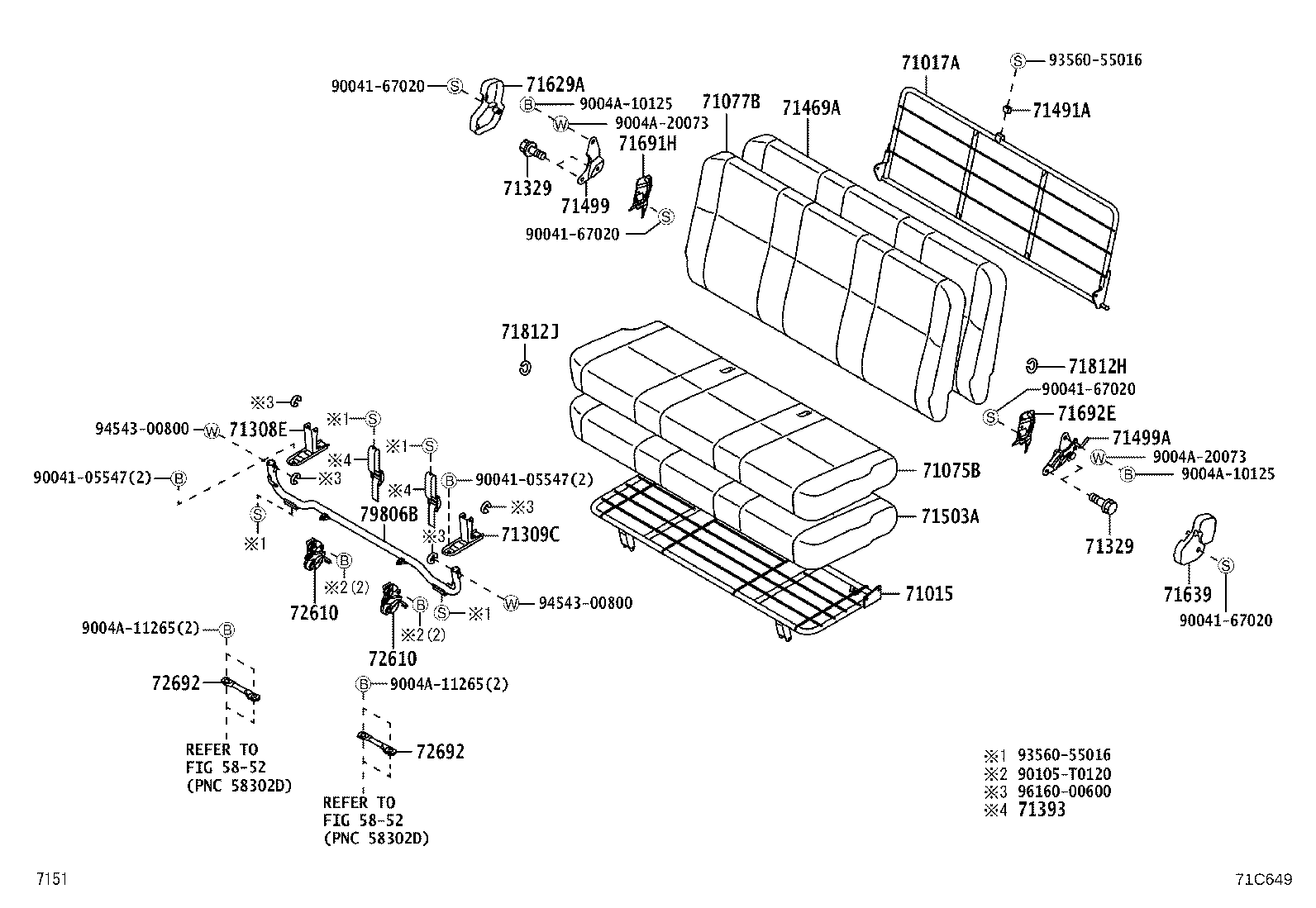

Click highlighted areas on diagram

ﾘﾔｼｰﾄ

diagram 5852 5852 71015 71017A 71075B 71077B 71308E 71309C 71329 71329 71393 71469A 71491A 71499 71499A 71503A 71629A 71639 71691H 71692E 71812H 71812J 72610 72610 72692 72692 79806B 9004105547 9004105547 9004167020 9004167020 9004167020 9004167020 9004A10125 9004A10125 9004A11265 9004A11265 9004A20073 9004A20073 90105T0120 9356055016 9356055016 9454300800 9454300800 9616000600
Part # Description Qty Price
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-BZ110

S403,413..VAN

 1
71017A - FRAME SUB-ASSY, REAR SEAT BACK
71017-BZ130

S403,413..VAN

 1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-BZ430B2

S403,413..VAN

GRAY,TRIM1#

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-BZ410B0

S403,413..VAN

GRAY,TRIM1#

 1
71308E - LEG SUB-ASSY, REAR SEAT, RH
71308-BZ030

S403,413..VAN

 1
71309C - LEG SUB-ASSY, REAR SEAT, REAR LH
71308-BZ040

S403,413..VAN

 1
71329 - BOLT, REAR SEAT HINGE
90105-10418

S403,413..VAN

 4
71329 - BOLT, REAR SEAT HINGE
90105-10418

S403,413..VAN

 4
71393 - BAND, REAR SEAT CUSHION
71393-BZ010

S403,413..VAN

 2
71469A - PAD, REAR SEAT BACK
71507-BZ110

S403,413..VAN

 1
71491A - CUSHION, REAR SEAT SET
78936-BZ010

S403,413..VAN

 1
71499 - STOPPER, REAR SEAT BACK
72667-BZ020

S403,413..VAN

 1
71499A - STOPPER, REAR SEAT BACK, NO.2
72668-BZ020

S403,413..VAN

 1
71503A - PAD SUB-ASSY, REAR SEAT CUSHION
71503-BZ150

S403,413..VAN

 1
71629A - COVER, REAR SEAT CUSHION HINGE, RH
71629-BZ040B0

S403,413..VAN

DK.GRAY,TRIM1#

 1
71639 - COVER, REAR SEAT CUSHION HINGE, LH
71639-BZ040B0

S403,413..VAN

DK.GRAY,TRIM1#

 1
71691H - COVER, REAR SEAT CUSHION HINGE, NO.2
71692-BZ010B0

S403,413..VAN

DK.GRAY,TRIM1#

 1
71692E - COVER, REAR SEAT CUSHION HINGE, NO.2
71692-BZ020B0

S403,413..VAN

DK.GRAY,TRIM1#

 1
71812H - RING, HOG, SMALL (FOR REAR SEAT)
9004A-46143

S403,413..VAN

 6
71812J - CLIP, REAR SEAT COVER
9004A-46143

S403,413..VAN

 25
72610 - LOCK ASSY, REAR SEAT CUSHION
72680-BZ070

S403,413..VAN

 2
72610 - LOCK ASSY, REAR SEAT CUSHION
72680-BZ070

S403,413..VAN

 2
72692 - STRIKER, REAR SEAT CUSHION LOCK, NO.2
72692-BZ030

S403,413..VAN

 2
72692 - STRIKER, REAR SEAT CUSHION LOCK, NO.2
72692-BZ030

S403,413..VAN

 2
79806B - LEG SUB ASSY, FOLD SEAT REAR
71309-BZ030

S403,413..VAN

 1
Common parts
90041-05547
90041-67020
9004A-10125
9004A-11265
9004A-20073
90105-T0120
93560-55016
94543-00800
96160-00600
Linked diagrams
5852
