S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )VAN

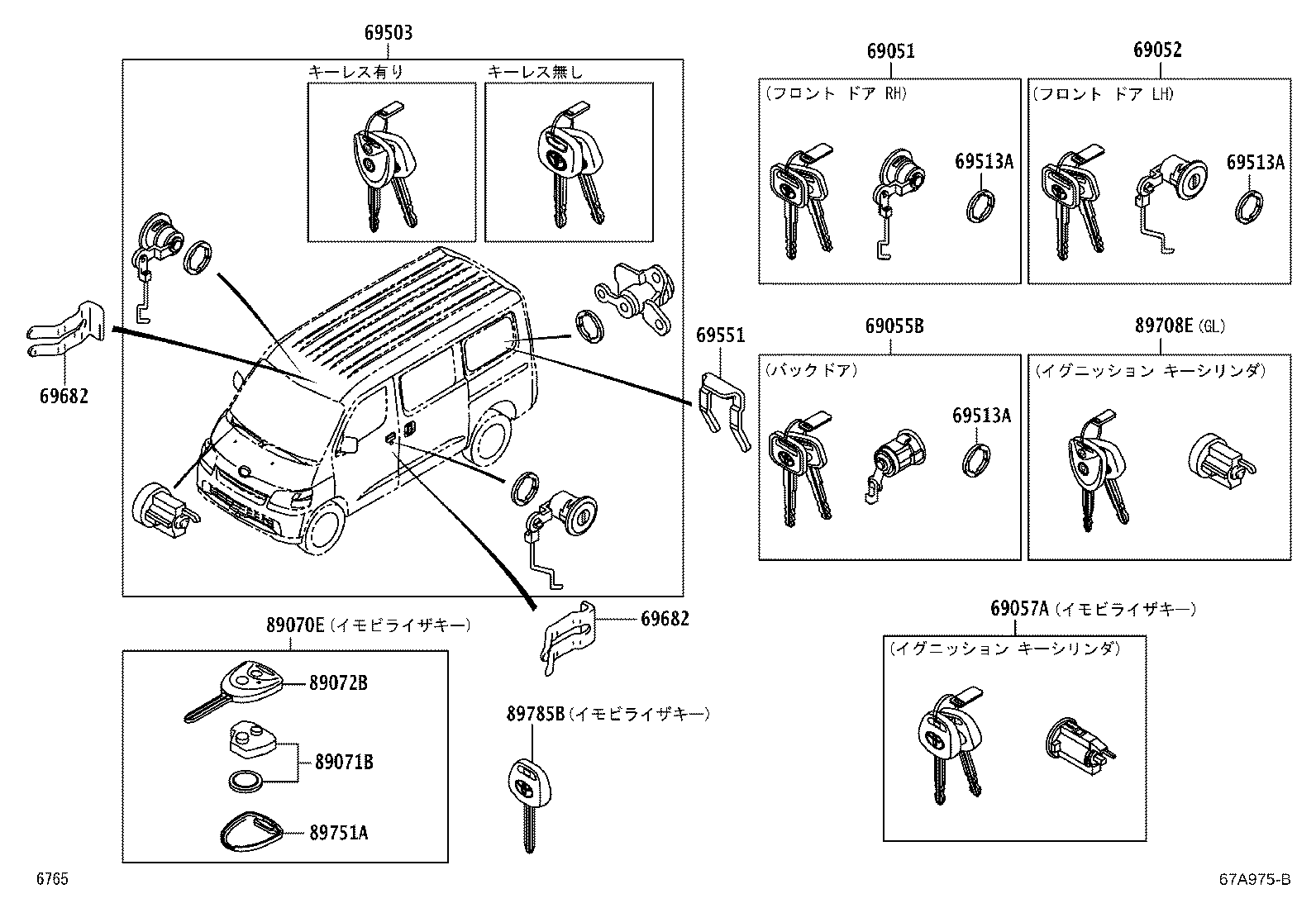

Click highlighted areas on diagram

diagram 69051 69052 69055B 69057A 69503 69513A 69513A 69513A 69551 69682 69682 89070E 89071B 89072B 89708E 89751A 89785B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-BZ050

S403,413

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-BZ050

S403,413

 1
69055B - CYLINDER & KEY SET, BACK DOOR LOCK
69055-BZ070

S403,413..VAN

 1
69503 - CYLINDER SET, LOCK
69005-BZC30

S403,413..GL

 1
69513A - PAD, DOOR CYLINDER
69513-BZ010

S403,413..VAN

ﾊﾞｯｸ

 1
69513-BZ010

S403,413..VAN

 3
69513A - PAD, DOOR CYLINDER
69513-BZ010

S403,413..VAN

ﾊﾞｯｸ

 1
69513-BZ010

S403,413..VAN

 3
69513A - PAD, DOOR CYLINDER
69513-BZ010

S403,413..VAN

ﾊﾞｯｸ

 1
69513-BZ010

S403,413..VAN

 3
69551 - RETAINER, BACK DOOR LOCK CYLINDER
69682-B2010

S403,413..VAN

 1
69682 - RETAINER, LOCK CYLINDER
61317-BZ020

S403,413..VAN

 2
69682 - RETAINER, LOCK CYLINDER
61317-BZ020

S403,413..VAN

 2
89070E - TRANSMITTER ASSY, DOOR CONTROL
89070-BZ370

S403,413..DXED,GL

 1
89071B - MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
89071-BZ120

S403,413..DXED,GL

 1
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-BZ260

S403,413..DXED,GL

 1
89708E - CYLINDER SET, LOCK W/TRANSMITTER
89708-BZ190

S403,413..DXED,GL

 1
89751A - COVER, TRANSMITTER HOUSING
89751-BZ160

S403,413..DXED,GL

 1
89785B - TRANSMITTER, TRANSPONDER KEY MASTER
89785-BZ260

S403,413

 1
