S413M-ZMDFJD (2020)
Toyota Lite/Townace
Production
Jul 2020
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )VAN

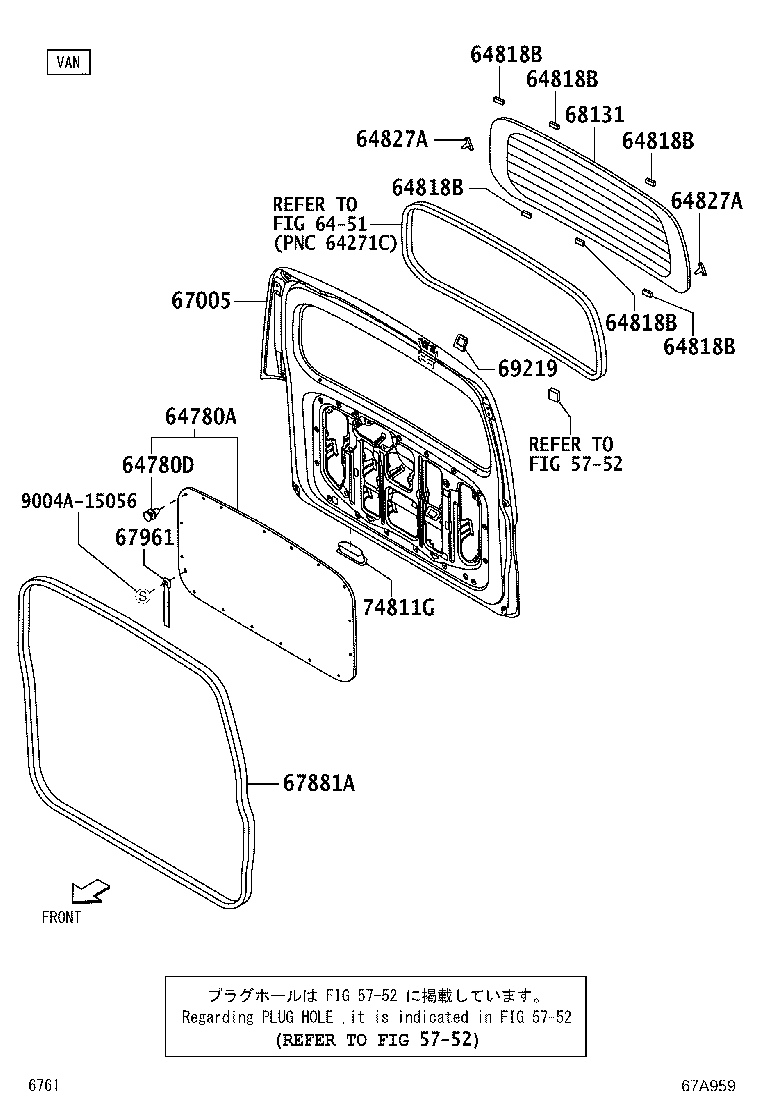

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64780A - PANEL ASSY, BACK DOOR TRIM | ||||
| 64780-BZ072B0 |
S403,413..VAN DK.GRAY,TRIM1#,ｽﾎﾟﾝｼﾞ付き(3個) |
1 | ||
| 64780D - RETAINER(FOR BACK DOOR TRIM BOARD) | ||||
| 67771-BZ070 |
S403,413..VAN |
17 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-BZ060 |
S403,413..VAN |
6 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-BZ060 |
S403,413..VAN |
6 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-BZ060 |
S403,413..VAN |
6 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-BZ060 |
S403,413..VAN |
6 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-BZ060 |
S403,413..VAN |
6 | ||
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-BZ060 |
S403,413..VAN |
6 | ||
| 64827A - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-BZ030 |
S403,413..VAN |
2 | ||
| 64827A - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-BZ030 |
S403,413..VAN |
2 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-BZE70 |
S403..GL;S413..VAN |
1 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-BZ082 |
S403,413..VAN 成型天井用 |
1 | ||
| 67961 - STRAP, BACK DOOR PULL | ||||
| 67908-BZ010B0 |
S403,413..VAN DK.GRAY,TRIM1# |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-BZ270 |
S403,413..GL ｽﾓｰｸ |
1 | ||
| 69219 - SEAL, BACK DOOR OUTSIDE HANDLE | ||||
| 69219-BZ010 |
S403,413..VAN |
1 | ||
| 74811G - HANDLE, DOOR PULL | ||||
| 74811-BZ030 |
S403,413..VAN |
1 | ||
| Common parts | ||||
| 9004A-15056 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 6451 | ||||
