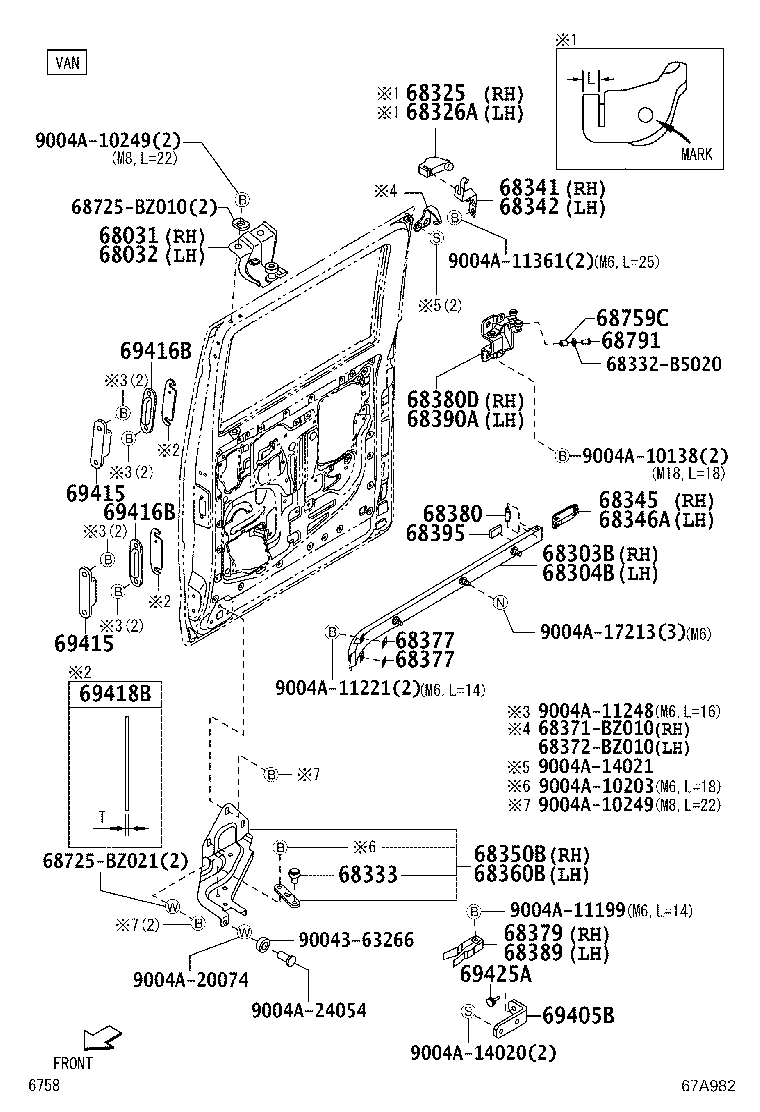

S413M-ZMDFJD (2020)
Toyota Lite/Townace
(2007- )VAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68031 - ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, RH | ||||
| 68031-BZ020 |
S403,413..VAN ﾛｰﾗｰ有り |
1 | ||
| 68032 - ARM SUB-ASSY, SLIDE DOOR UPPER ROLLER, LH | ||||
| 68032-BZ020 |
S403,413..VAN ﾛｰﾗｰ有り |
1 | ||
| 68303B - RAIL SUB-ASSY, SLIDE DOOR, CENTER RH | ||||
| 68303-B5021 |
S403,413..VAN |
1 | ||
| 68304B - RAIL SUB-ASSY, SLIDE DOOR, CENTER LH | ||||
| 68304-B5031 |
S403,413..VAN |
1 | ||
| 68325 - CUSHION, SLIDE DOOR UPPER RAIL, RH | ||||
| 68325-BZ051 |
S403,413..VAN 識別記号=3R,L=11.5 |
1 | ||
| 68325-BZ041 |
S403,413..VAN 識別記号=6R,L=8.5 |
1 | ||
| 68326A - CUSHION, SLIDE DOOR UPPER RAIL, LH | ||||
| 68326-BZ031 |
S403,413..VAN 識別記号=6L,L=8.5 |
1 | ||
| 68326-BZ041 |
S403,413..VAN 識別記号=3L,L=11.5 |
1 | ||
| 68333 - ROLLER, SLIDE DOOR CENTER, NO.1 | ||||
| 68332-B5011 |
S403,413..VAN |
2 | ||
| 68341 - BASE, SLIDE DOOR UPPER ROOLER, RH | ||||
| 68033-BZ010 |
S403,413..VAN |
1 | ||
| 68342 - BASE, SLIDE DOOR UPPER ROOLER, LH | ||||
| 68034-BZ010 |
S403,413..VAN |
1 | ||
| 68345 - COVER, SLIDE DOOR CENTER RAIL | ||||
| 68345-BZ011 |
S403,413..VAN |
1 | ||
| 68346A - COVER, SLIDE DOOR CENTER RAIL, LH | ||||
| 68346-BZ011 |
S403,413..VAN |
1 | ||
| 68350B - ROLLER ASSY, SLIDE DOOR, LOWER RH | ||||
| 68350-BZ013 |
S403,413..VAN |
1 | ||
| 68360B - ROLLER ASSY, SLIDE DOOR, LOWER LH | ||||
| 68360-BZ013 |
S403,413..VAN |
1 | ||
| 68377 - PAD, SLIDE DOOR CENTER RAIL, FRONT | ||||
| 68377-97502 |
S403,413..VAN |
4 | ||
| 68377 - PAD, SLIDE DOOR CENTER RAIL, FRONT | ||||
| 68377-97502 |
S403,413..VAN |
4 | ||
| 68379 - SPRING, SLIDE DOOR CATCH, RH | ||||
| 68379-B5010 |
S403,413..VAN |
1 | ||
| 68380 - CUSHION ASSY, SLIDE DOOR | ||||
| 52209-BZ010 |
S403,413..VAN |
2 | ||
| 68380D - HINGE ASSY, SLIDE DOOR, CENTER RH | ||||
| 68380-BZ050 |
S403,413..VAN |
1 | ||
| 68389 - SPRING, SLIDE DOOR CATCH, LH | ||||
| 68389-B5010 |
S403,413..VAN |
1 | ||
| 68390A - HINGE ASSY, SLIDE DOOR, CENTER LH | ||||
| 68390-BZ050 |
S403,413..VAN |
1 | ||
| 68395 - PACKING, SLIDE DOOR CENTER RAIL | ||||
| 68395-BZ010 |
S403,413..VAN |
2 | ||
| 68759C - SPACER, CENTER DOOR HINGE | ||||
| 68759-B5010 |
S403,413..VAN |
2 | ||
| 68791 - PIN, DOOR HINGE, NO.1 | ||||
| 68791-BZ020 |
S403,413..VAN |
2 | ||
| 69405B - STOP SUB-ASSY, SLIDE DOOR OPEN | ||||
| 69416-BZ010 |
S403,413..VAN |
2 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69043-BZ011 |
S403,413..VAN |
4 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69043-BZ011 |
S403,413..VAN |
4 | ||
| 69416B - STOPPER, SLIDE DOOR DOWN MALE | ||||
| 69413-BZ010 |
S403,413..VAN |
4 | ||
| 69416B - STOPPER, SLIDE DOOR DOWN MALE | ||||
| 69413-BZ010 |
S403,413..VAN |
4 | ||
| 69418B - SHIM, SLIDE DOOR DOWN STOP MALE | ||||
| 69418-BZ030 |
S403,413..VAN 厚さ=1.0 |
1 | ||
| 69418-BZ040 |
S403,413..VAN 厚さ=1.5 |
1 | ||
| 69418-BZ050 |
S403,413..VAN 厚さ=2.0 |
1 | ||
| 69418-BZ020 |
S403,413..VAN 厚さ=0.5 |
1 | ||
| 69425A - CUSHION, SLIDE DOOR STOP | ||||
| 69419-87502 |
S403,413..VAN |
2 | ||
| Common parts | ||||
| 68332-B5020 | ||||
| 68371-BZ010 | ||||
| 68372-BZ010 | ||||
| 68725-BZ010 | ||||
| 68725-BZ021 | ||||
| 90043-63266 | ||||
| 9004A-10138 | ||||
| 9004A-10203 | ||||
| 9004A-10249 | ||||
| 9004A-11199 | ||||
| 9004A-11221 | ||||
| 9004A-11248 | ||||
| 9004A-11361 | ||||
| 9004A-14020 | ||||
| 9004A-14021 | ||||
| 9004A-17213 | ||||
| 9004A-20074 | ||||
| 9004A-24054 | ||||
