S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

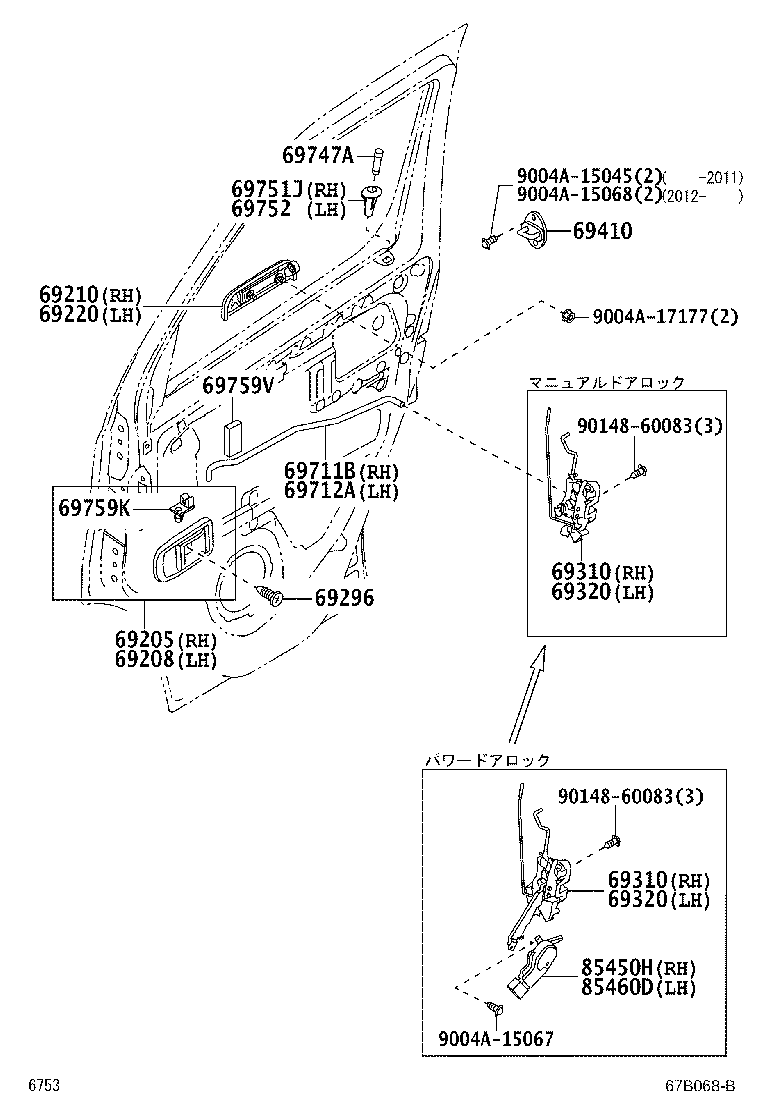

Click highlighted areas on diagram

diagram 69205 69208 69210 69220 69296 69310 69310 69320 69320 69410 69711B 69712A 69747A 69751J 69752 69759K 69759V 85450H 85460D 9004A15045 9004A15067 9004A15068 9004A17177 9014860083 9014860083
Part # Description Qty Price
69205 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69270-BZ012C0

S403,413

BLACK,TRIM1#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69280-BZ012C0

S403,413

BLACK,TRIM1#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-BZ260

S403,413

塗装不要 材料着色 黒色,ｴﾌﾟﾄｼｰﾗ無し

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-BZ260

S403,413

塗装不要 材料着色 黒色,ｴﾌﾟﾄｼｰﾗ無し

 1
69296 - SCREW, DOOR INSIDE HANDLE
9004A-16093

S403,413

 2
69310 - LOCK ASSY, FRONT DOOR, RH
69303-BZ040

S403,413..DXED,GL;S403,413..VAN..DX

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69303-BZ040

S403,413..DXED,GL;S403,413..VAN..DX

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69304-BZ040

S403,413..DXED,GL;S403,413..VAN..DX

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69304-BZ040

S403,413..DXED,GL;S403,413..VAN..DX

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-BZ010

S403,413

 2
69711B - LINK, FRONT DOOR LOCK REMOTE CONTROL, RH
69711-BZ030

S403,413

 1
69712A - LINK, FRONT DOOR LOCK REMOTE CONTROL, LH
69712-BZ030

S403,413

 1
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69743-BZ040C0

S403,413

BLACK,TRIM1#

 2
69751J - HOLDER, FRONT DOOR LOCK CONTROL KNOB, RH
69751-87704C0

S403,413

BLACK,TRIM1#

 1
69752 - HOLDER, FRONT DOOR LOCK CONTROL KNOB, LH
69751-87704C0

S403,413

BLACK,TRIM1#

 1
69759K - SNAP, DOOR LOCK CONTROL LINK
69279-BZ010

S403,413

 2
69759V - SILENCER, FRONT DOOR LOCK LINK
69759-87Z02

S403,413

 2
85450H - MOTOR ASSY, DOOR CONTROL, FRONT RH
85450-BZ070

S403,413..DXED,GL

 1
85460D - MOTOR ASSY, DOOR CONTROL, FRONT LH
85460-BZ010

S403,413..DXED,GL;S403,413..VAN..DX

 1
Common parts
9004A-15045
9004A-15067
9004A-15068
9004A-17177
90148-60083
