S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )VAN

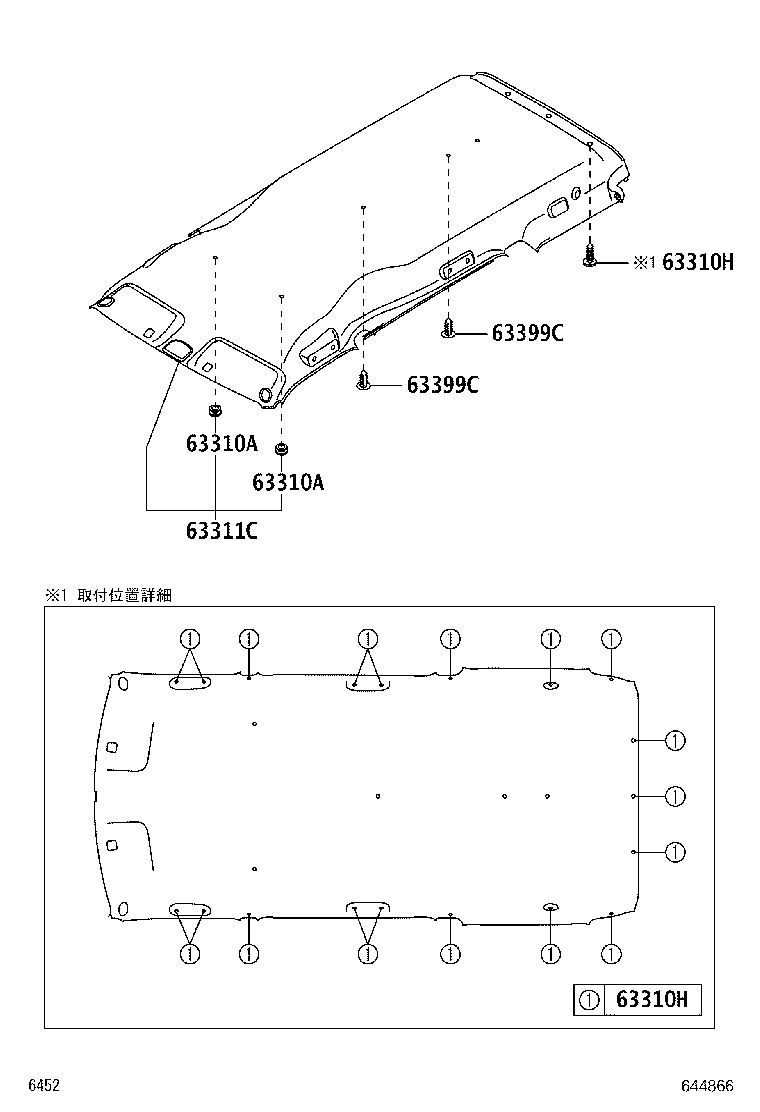

Click highlighted areas on diagram

diagram 63310A 63310A 63310H 63310H 63311C 63399C 63399C
Part # Description Qty Price
63310A - PLUG, HOLE(FOR ROOF HEADLINING ASSY)
90048-71232B1

S403,413..VAN

LT.GRAY,TRIM1#

 2
63310A - PLUG, HOLE(FOR ROOF HEADLINING ASSY)
90048-71232B1

S403,413..VAN

LT.GRAY,TRIM1#

 2
63310H - CLIP(FOR ROOF HEADLINING)
9004A-46358B1

S403,413..VAN

LT.GRAY,TRIM1#

 17
9004A-46358B0

S403,413..VAN

LT.GRAY,TRIM1#

 17
63310H - CLIP(FOR ROOF HEADLINING)
9004A-46358B1

S403,413..VAN

LT.GRAY,TRIM1#

 17
9004A-46358B0

S403,413..VAN

LT.GRAY,TRIM1#

 17
63311C - HEADLINING, ROOF
63311-BZ640B0

S403,413..VAN

LT.GRAY,TRIM1#

 1
63399C - CLIP, ROOF HEADLINING
9004A-46357B0

S403,413..VAN

LT.GRAY,TRIM1#

 2
63399C - CLIP, ROOF HEADLINING
9004A-46357B0

S403,413..VAN

LT.GRAY,TRIM1#

 2
