S413M-ZMDFJD (2020)
Toyota Lite/Townace
Production
Jul 2020
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )VAN

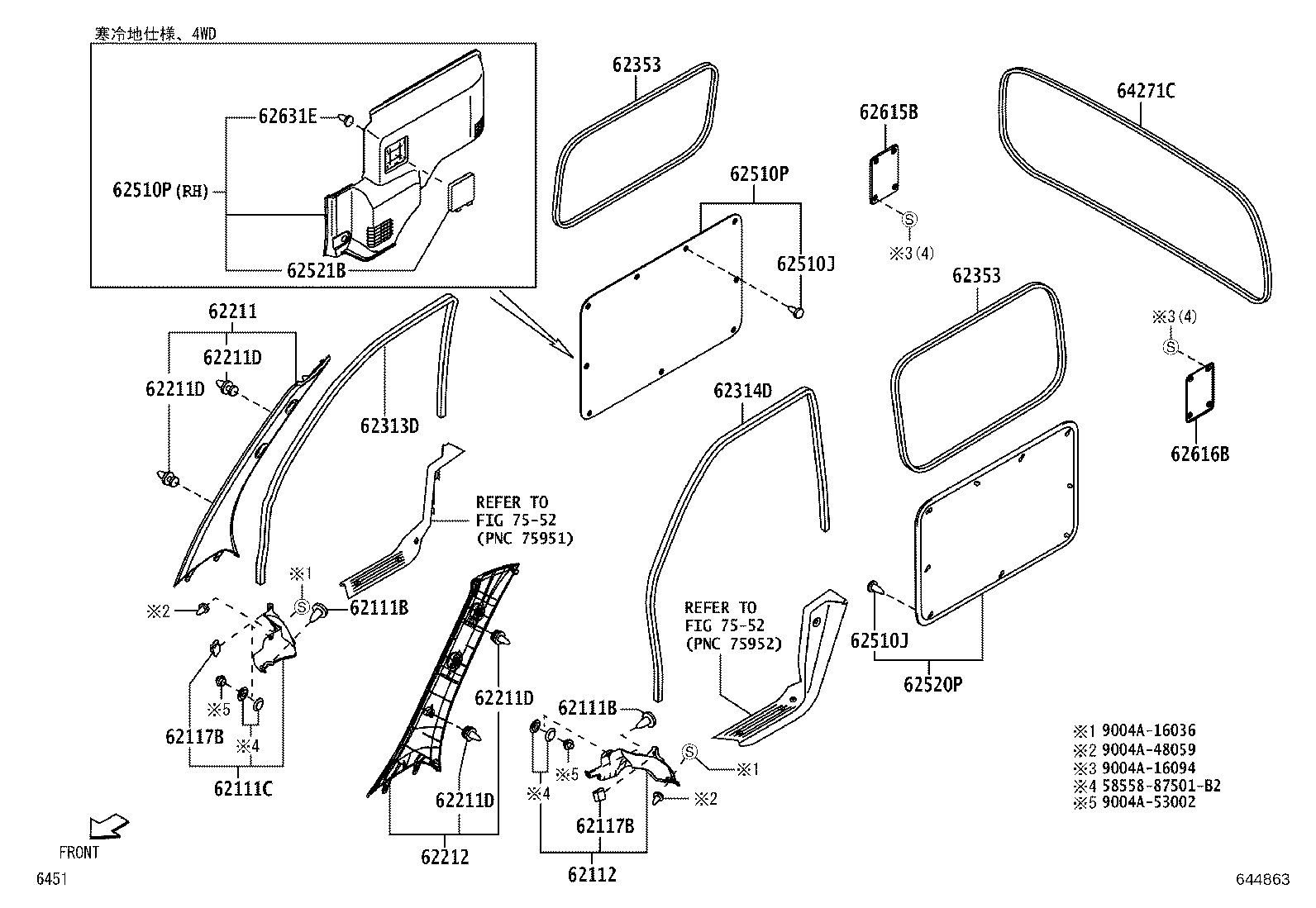

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90044-68234B2 |
S403,413 DK.GRAY,TRIM1# |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90044-68234B2 |
S403,413 DK.GRAY,TRIM1# |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-BZ280B0 |
S403,413 DK.GRAY,TRIM1# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-BZ260B0 |
S403,413 DK.GRAY,TRIM1# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90044-68288 |
S403,413 |
2 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90044-68288 |
S403,413 |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-BZ130B1 |
S403,413 LT.GRAY,TRIM1# |
1 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 9004A-46275 |
S403,413 |
4 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 9004A-46275 |
S403,413 |
4 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 9004A-46275 |
S403,413 |
4 | ||
| 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) | ||||
| 9004A-46275 |
S403,413 |
4 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-BZ120B1 |
S403,413 LT.GRAY,TRIM1# |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-BZ150 |
S403,413 |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-BZ150 |
S403,413 |
1 | ||
| 62353 - TRIM, QUARTER WINDOW INSIDE, NO.1 | ||||
| 62353-BZ011 |
S403,413..VAN |
2 | ||
| 62353 - TRIM, QUARTER WINDOW INSIDE, NO.1 | ||||
| 62353-BZ011 |
S403,413..VAN |
2 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-BZ070 |
S413..VAN |
9 | ||
| 62510J - RETAINER, QUARTER TRIM | ||||
| 67771-BZ070 |
S413..VAN |
9 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-BZ110B0 |
S413..VAN DK.GRAY,TRIM1# |
1 | ||
| 62510P - PANEL ASSY, QUARTER TRIM, FRONT RH | ||||
| 62510-BZ110B0 |
S413..VAN DK.GRAY,TRIM1# |
1 | ||
| 62520P - PANEL ASSY, QUARTER TRIM, FRONT LH | ||||
| 62520-BZ040B0 |
S403,413..VAN DK.GRAY,TRIM1# |
1 | ||
| 62521B - COVER, QUARTER TRIM, RH | ||||
| 62521-BZ010 |
S413..VAN |
1 | ||
| 62615B - COVER, QUARTER WHEEL HOUSE, INNER RH | ||||
| 62615-BZ011 |
S403,413..VAN |
1 | ||
| 62616B - COVER, QUARTER WHEEL HOUSE, INNER LH | ||||
| 62616-BZ011 |
S403,413..VAN |
1 | ||
| 62631E - RETAINER, QUATER TRIM | ||||
| 9004A-46275 |
S413..VAN |
12 | ||
| 64271C - TRIM, BACK PANEL | ||||
| 62353-BZ021 |
S403,413..VAN |
1 | ||
| Common parts | ||||
| 58558-87501B2 | ||||
| 9004A-16036 | ||||
| 9004A-16094 | ||||
| 9004A-48059 | ||||
| 9004A-53002 | ||||
| Linked diagrams | ||||
| 7552 | ||||
