S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )VAN

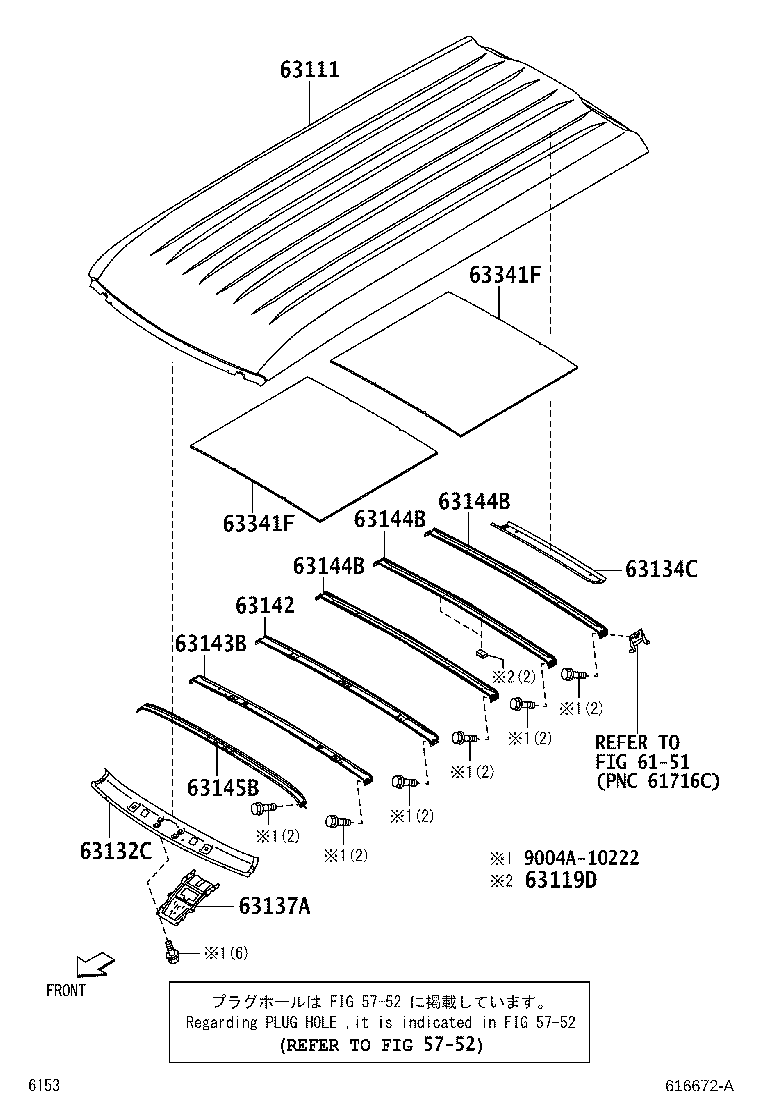

Click highlighted areas on diagram

diagram 5752 6151 63111 63119D 63132C 63134C 63137A 63142 63143B 63144B 63144B 63144B 63145B 63341F 63341F 9004A10222
Part # Description Qty Price
63111 - PANEL, ROOF
63111-BZ171

S403..GL;S413..VAN

 1
63119D - PAD, ROOF PANEL, NO.1
63351-BZ080

S403,413..VAN

 2
63132C - PANEL, WINDSHIELD HEADER, INNER
63132-BZ220

S403,413

 1
63134C - FRAME, BACK DOOR OPENING, INNER
63134-BZ080

S403,413..VAN

 1
63137A - BRACKET, DOME LAMP, NO.1
63138-BZ030

S403,413

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63142-BZ080

S403,413..VAN

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-BZ041

S403,413..VAN

ｳｪﾙﾄﾞ ﾅｯﾄ 有り

 1
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63141-BZ060

S403,413..VAN

 3
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63141-BZ060

S403,413..VAN

 3
63144B - REINFORCEMENT, ROOF PANEL, NO.4
63141-BZ060

S403,413..VAN

 3
63145B - REINFORCEMENT, WINDSHIELD HEADER PANEL
63146-BZ010

S403,413

 1
63341F - PAD, ROOF SILENCER, NO.1
63341-BZ020

S403,413..VAN

 2
63341F - PAD, ROOF SILENCER, NO.1
63341-BZ020

S403,413..VAN

 2
Common parts
9004A-10222
Linked diagrams
5752
6151
