S413M-ZMDFJD (2020)
Toyota Lite/Townace
Production
Jul 2020
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

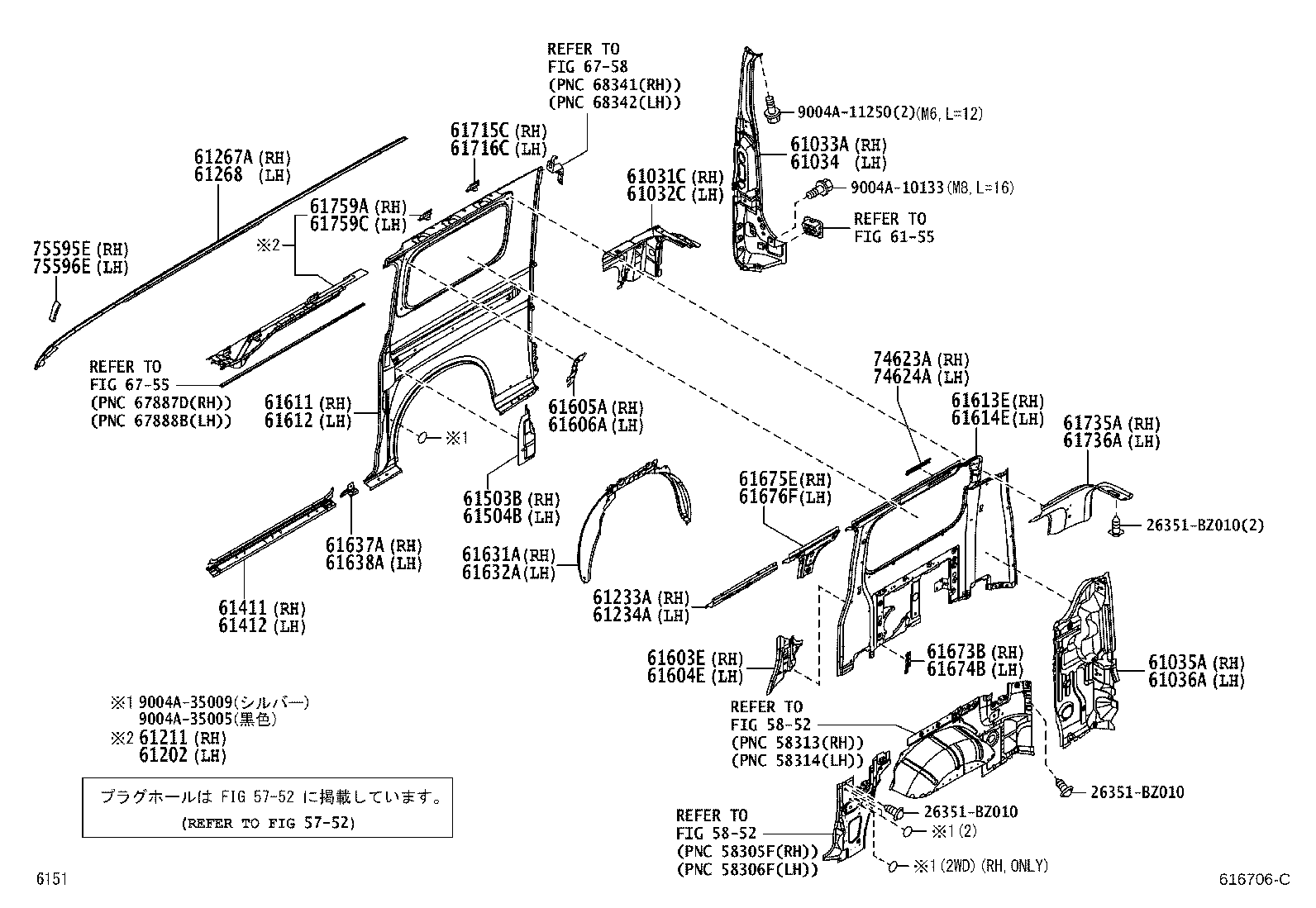

ILLUST NO. 2 OF 2(2007- )VAN
Click highlighted areas on diagram
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61031C - EXTENSION SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 61031-BZ101 |
S403,413..VAN |
1 | ||
| 61032C - EXTENSION SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 61032-BZ111 |
S403,413..VAN |
1 | ||
| 61033A - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE | ||||
| 61033-BZ011 |
S403,413..VAN |
1 | ||
| 61034 - REINFORCE SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61034-BZ011 |
S403,413..VAN |
1 | ||
| 61035A - REINFORCEMENT SUB-ASSY, BACK DOOR OPENING, RH | ||||
| 61745-BZ020 |
S403,413..VAN |
1 | ||
| 61036A - REINFORCEMENT SUB-ASSY, BACK DOOR OPENING, LH | ||||
| 61746-BZ010 |
S403,413..VAN |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-BZ021 |
S403,413..VAN |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61201-BZ021 |
S403,413..VAN |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-BZ020 |
S403,413..VAN |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-BZ020 |
S403,413..VAN |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-B5041 |
S403,413..VAN |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-B5041 |
S403,413..VAN |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-BZ070 |
S403,413..VAN |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-BZ070 |
S403,413..VAN |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-BZ100 |
S403,413..VAN |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61504-BZ100 |
S403,413..VAN |
1 | ||
| 61603E - REINFORCEMENT SUB-ASSY, QUATER PANEL, INNER RH | ||||
| 61603-BZ020 |
S403,413..VAN |
1 | ||
| 61604E - REINFORCEMENT SUB-ASSY, QUATER PANEL, INNER LH | ||||
| 61604-BZ010 |
S403,413..VAN |
1 | ||
| 61605A - REINFORCEMENT SUB-ASSY, QUARTER PANEL, RH | ||||
| 61605-BZ041 |
S403,413..VAN |
1 | ||
| 61606A - REINFORCEMENT SUB-ASSY, QUARTER PANEL, LH | ||||
| 61606-BZ041 |
S403,413..VAN |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-BZ201 |
S403,413..VAN |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-BZ211 |
S403,413..VAN |
1 | ||
| 61613E - PANEL, QUARTER, INNER RH | ||||
| 61613-BZ123 |
S413..VAN |
1 | ||
| 61614E - PANEL, QUARTER, INNER LH | ||||
| 61614-BZ103 |
S403,413..VAN |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-BZ090 |
S403,413..VAN |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-BZ090 |
S403,413..VAN |
1 | ||
| 61637A - BRACE, QUARTER PANEL, RH | ||||
| 61637-BZ010 |
S403,413..VAN |
1 | ||
| 61638A - BRACE, QUARTER PANEL, LH | ||||
| 61638-BZ010 |
S403,413..VAN |
1 | ||
| 61673B - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61673-BZ010 |
S403,413..VAN |
1 | ||
| 61674B - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61674-BZ010 |
S403,413..VAN |
1 | ||
| 61675E - REINFORCEMENT, QUARTER WHEEL HOUSE, REAR RH | ||||
| 61675-BZ050 |
S403,413..VAN |
1 | ||
| 61676F - REINFORCEMENT, QUARTER WHEEL HOUSE, REAR LH | ||||
| 61676-BZ050 |
S403,413..VAN |
1 | ||
| 61715C - BRACKET, ROOF SIDE, RH | ||||
| 63145-BZ030 |
S403,413..VAN |
2 | ||
| 61716C - BRACKET, ROOF SIDE, LH | ||||
| 63145-BZ030 |
S403,413..VAN |
2 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-BZ041 |
S403,413..VAN |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-BZ041 |
S403,413..VAN |
1 | ||
| 61759A - BRACKET, ROOF SIDE REINFORCEMENT | ||||
| 63145-BZ030 |
S403,413..VAN |
2 | ||
| 61759C - BRACKET, ROOF SIDE REINFORCEMENT | ||||
| 63145-BZ030 |
S403,413..VAN |
2 | ||
| 74623A - REINFORCEMENT, RR ASSIST GRIP | ||||
| 74623-BZ010 |
S403,413..VAN |
1 | ||
| 74624A - REINFORCEMENT, REAR ASSIST GRIP, LH | ||||
| 74623-BZ010 |
S403,413..VAN |
1 | ||
| 75595E - COVER, ROOF DRIP SIDE MOULDING END, FRONT RH | ||||
| 75595-BZ020 |
S403,413 |
1 | ||
| 75596E - COVER, ROOF DRIP SIDE MOULDING END, FRONT LH | ||||
| 75596-BZ020 |
S403,413 |
1 | ||
| Common parts | ||||
| 26351-BZ010 | ||||
| 9004A-10133 | ||||
| 9004A-11250 | ||||
| 9004A-35005 | ||||
| 9004A-35009 | ||||
| Linked diagrams | ||||
| 5752 | ||||
| 5852 | ||||
| 6155 | ||||
| 6755 | ||||
| 6758 | ||||

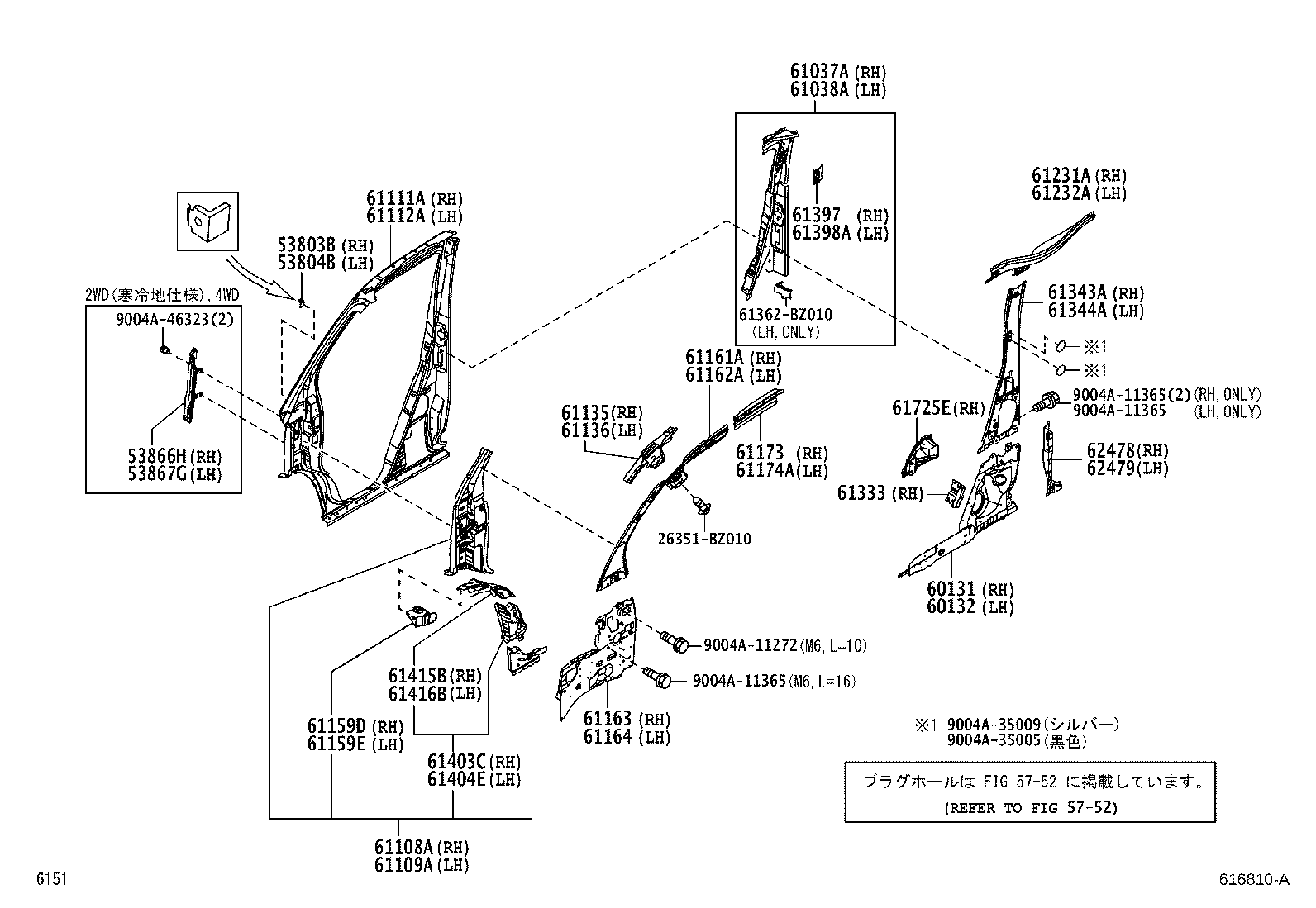

ILLUST NO. 1 OF 2(2007- )VAN
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53803B - BRACKET SUB-ASSY, FRONT SIDE PANEL, RH | ||||
| 55168-BZ080 |
S403,413 |
1 | ||
| 53804B - BRACKET SUB-ASSY, FRONT SIDE PANEL, LH | ||||
| 55168-BZ080 |
S403,413 |
1 | ||
| 53866H - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53865-BZ050 |
S413 |
1 | ||
| 53867G - SEAL, FR FENDER TO COWL SIDE, LH | ||||
| 53866-BZ030 |
S413 |
1 | ||
| 60131 - PILLAR SUB-ASSY, CENTER BODY, NO.2 RH | ||||
| 60131-BZ040 |
S403,413..VAN |
1 | ||
| 60132 - PILLAR SUB-ASSY, CENTER BODY, NO.2 LH | ||||
| 60132-BZ040 |
S403,413..VAN |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61037-BZ141 |
S403,413..VAN |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61038-BZ161 |
S403,413..VAN |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-BZ060 |
S403,413 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-BZ050 |
S403,413 |
1 | ||
| 61111A - PANEL, FRONT SIDE, OUTER RH | ||||
| 61111-BZ322 |
S413..VAN |
1 | ||
| 61112A - PANEL, FRONT SIDE, OUTER LH | ||||
| 61112-BZC70 |
S413..VAN |
1 | ||
| 61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH | ||||
| 61175-BZ040 |
S403,413..VAN |
1 | ||
| 61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH | ||||
| 61176-BZ030 |
S403,413..VAN |
1 | ||
| 61159D - RETAINER, SIDE PANEL, NO.2 RH | ||||
| 53728-BZ020 |
S403,413 |
1 | ||
| 61159E - RETAINER, SIDE PANEL, NO.2 LH | ||||
| 53729-BZ030 |
S403,413 |
1 | ||
| 61161A - PILLAR, FRONT BODY, INNER RH | ||||
| 61161-BZ240 |
S403,413..VAN |
1 | ||
| 61162A - PILLAR, FRONT BODY, INNER LH | ||||
| 61162-BZ260 |
S403,413..VAN |
1 | ||
| 61163 - PILLAR, FRONT BODY, INNER RH | ||||
| 61023-BZ181 |
S403,413 |
1 | ||
| 61164 - PILLAR, FRONT BODY, INNER LH | ||||
| 61164-BZ111 |
S403,413 |
1 | ||
| 61173 - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER | ||||
| 61173-BZ050 |
S403,413..VAN |
1 | ||
| 61174A - REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH | ||||
| 61174-BZ050 |
S403,413..VAN |
1 | ||
| 61231A - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-BZ102 |
S403,413..VAN |
1 | ||
| 61232A - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-BZ082 |
S403,413..VAN |
1 | ||
| 61333 - PLATE, CENTER PILLAR, RH | ||||
| 61333-BZ010 |
S403,413 |
1 | ||
| 61343A - PILLAR, CENTER BODY, INNER RH | ||||
| 61343-BZ080 |
S403,413..VAN |
1 | ||
| 61344A - PILLAR, CENTER BODY, INNER LH | ||||
| 61344-BZ070 |
S403,413..VAN |
1 | ||
| 61397 - PATCH, CENTER BODY PILLAR, INNER RH | ||||
| 61397-BZ020 |
S403,413..VAN |
1 | ||
| 61398A - PATCH, CENTER BODY PILLAR, INNER LH | ||||
| 61398-BZ020 |
S403,413..VAN |
1 | ||
| 61403C - REINFORCE SUB-ASSY, ROCKER, OUTER RH | ||||
| 61403-BZ030 |
S403,413 |
1 | ||
| 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH | ||||
| 61404-BZ050 |
S403,413 |
1 | ||
| 61415B - EXTENSION, ROCKER, OUTER RH | ||||
| 61415-BZ010 |
S403,413 |
1 | ||
| 61416B - EXTENSION, ROCKER, OUTER LH | ||||
| 61416-BZ010 |
S403,413 |
1 | ||
| 61725E - BOX, FUEL INLET | ||||
| 61725-BZ073 |
S403,413 |
1 | ||
| 62478 - PATCH, CENTER PILLAR, RH | ||||
| 62478-BZ020 |
S403,413..VAN |
1 | ||
| 62479 - PATCH, CENTER PILLAR, LH | ||||
| 62479-BZ021 |
S403,413..VAN |
1 | ||
| Common parts | ||||
| 26351-BZ010 | ||||
| 61362-BZ010 | ||||
| 9004A-11272 | ||||
| 9004A-11365 | ||||
| 9004A-35005 | ||||
| 9004A-35009 | ||||
| 9004A-46323 | ||||
| Linked diagrams | ||||
| 5752 | ||||
