S413M-ZMDFJD (2020)
Toyota Lite/Townace
Production
Jul 2020
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )VAN

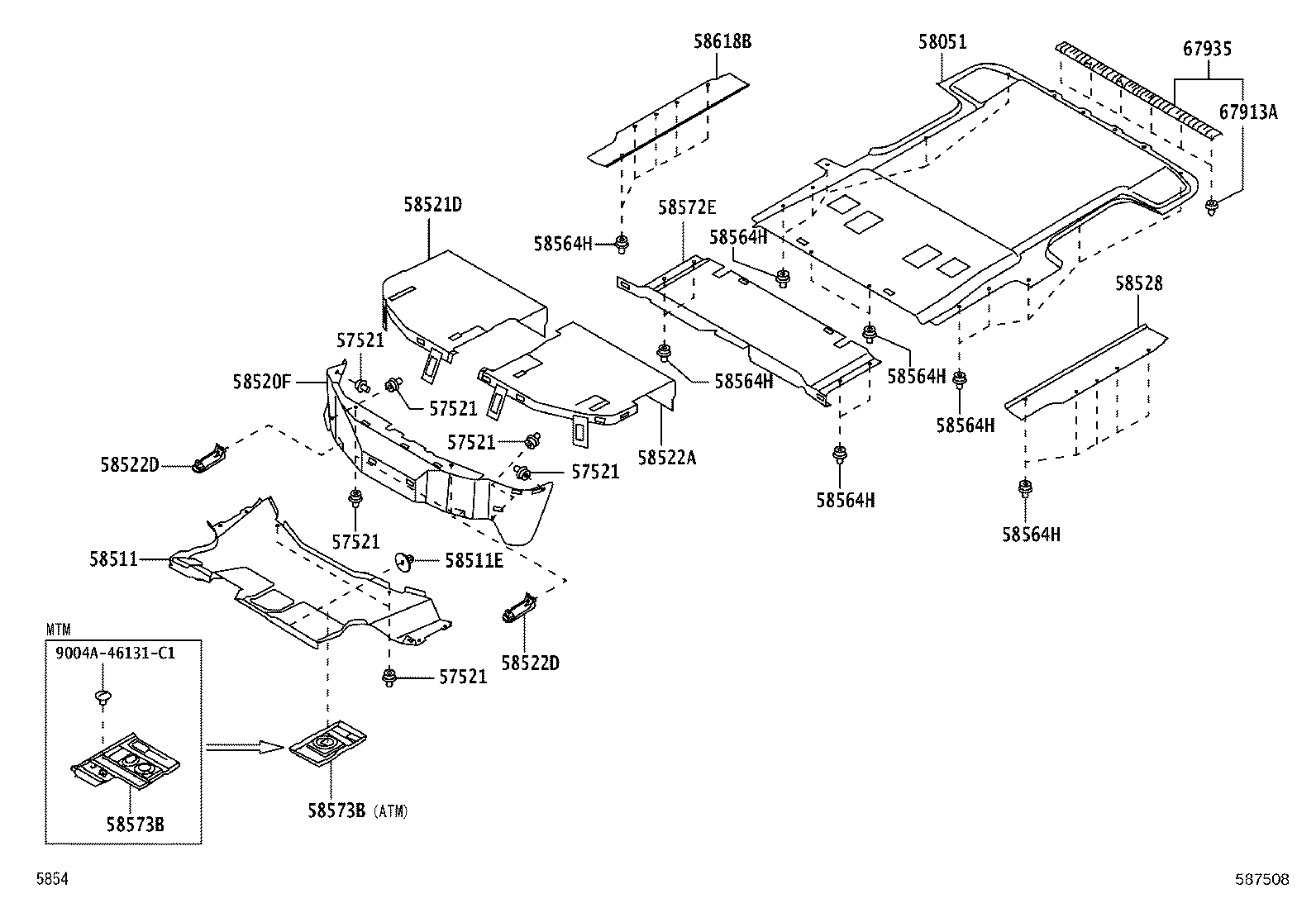

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57521 - FASTENER, HOOK | ||||
| 9004A-53002 |
S403,413 |
8 | ||
| 57521 - FASTENER, HOOK | ||||
| 9004A-53002 |
S403,413 |
8 | ||
| 57521 - FASTENER, HOOK | ||||
| 9004A-53002 |
S403,413 |
8 | ||
| 57521 - FASTENER, HOOK | ||||
| 9004A-53002 |
S403,413 |
8 | ||
| 57521 - FASTENER, HOOK | ||||
| 9004A-53002 |
S403,413 |
8 | ||
| 57521 - FASTENER, HOOK | ||||
| 9004A-53002 |
S403,413 |
8 | ||
| 58051 - MAT SET, FLOOR | ||||
| 58051-BZ021B1 |
S413..VAN DK.GRAY,TRIM1# |
1 | ||
| 58511 - MAT, FLOOR, FRONT | ||||
| 58510-BZP60B1 |
S403,413..5F DK.GRAY,TRIM1# |
1 | ||
| 58511E - CLIP(FOR FRONT FLOOR MAT) | ||||
| 90044-68234B2 |
S403,413 DK.GRAY,TRIM1# |
1 | ||
| 58520F - MAT ASSY, ENGINE COVER | ||||
| 58520-BZ020B1 |
S403,413 DK.GRAY,TRIM1# |
1 | ||
| 58521D - MAT, ENGINE SERVICE HOLE COVER | ||||
| 58521-BZ280B0 |
S403,413..VAN DK.GRAY,TRIM1# |
1 | ||
| 58522A - MAT, ENGINE SERVICE HOLE COVER, LH | ||||
| 58521-BZ290B0 |
S403,413..VAN DK.GRAY,TRIM1# |
1 | ||
| 58522D - HOOK, FLOOR CARPET, NO.2 | ||||
| 58522-52030 |
S403,413 |
2 | ||
| 58522D - HOOK, FLOOR CARPET, NO.2 | ||||
| 58522-52030 |
S403,413 |
2 | ||
| 58528 - MAT, REAR DOOR STEP | ||||
| 58618-BZ041B1 |
S403,413..VAN DK.GRAY,TRIM1# |
1 | ||
| 58564H - CLIP(FOR REAR FLOOR CARPET) | ||||
| 9004A-53002 |
S403,413..VAN |
26 | ||
| 58564H - CLIP(FOR REAR FLOOR CARPET) | ||||
| 9004A-53002 |
S403,413..VAN |
26 | ||
| 58564H - CLIP(FOR REAR FLOOR CARPET) | ||||
| 9004A-53002 |
S403,413..VAN |
26 | ||
| 58564H - CLIP(FOR REAR FLOOR CARPET) | ||||
| 9004A-53002 |
S403,413..VAN |
26 | ||
| 58564H - CLIP(FOR REAR FLOOR CARPET) | ||||
| 9004A-53002 |
S403,413..VAN |
26 | ||
| 58564H - CLIP(FOR REAR FLOOR CARPET) | ||||
| 9004A-53002 |
S403,413..VAN |
26 | ||
| 58564H - CLIP(FOR REAR FLOOR CARPET) | ||||
| 9004A-53002 |
S403,413..VAN |
26 | ||
| 58572E - MAT, REAR FLOOR, FRONT | ||||
| 58540-BZ072B1 |
S403,413..VAN DK.GRAY,TRIM1# |
1 | ||
| 58573B - PAD, FRONT FLOOR CENTER | ||||
| 58573-BZ020 |
S403,413..5F |
1 | ||
| 58573B - PAD, FRONT FLOOR CENTER | ||||
| 58573-BZ020 |
S403,413..5F |
1 | ||
| 58618B - MAT, REAR DOOR STEP | ||||
| 58618-BZ031B1 |
S403,413..VAN DK.GRAY,TRIM1# |
1 | ||
| 67913A - CLIP(FOR SCUFF PLATE) | ||||
| 9004A-46275 |
S403,413..VAN |
6 | ||
| 67935 - PLATE, BACK DOOR SCUFF | ||||
| 67935-BZ050B0 |
S403,413..VAN DK.GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 9004A-46131C1 | ||||
