S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

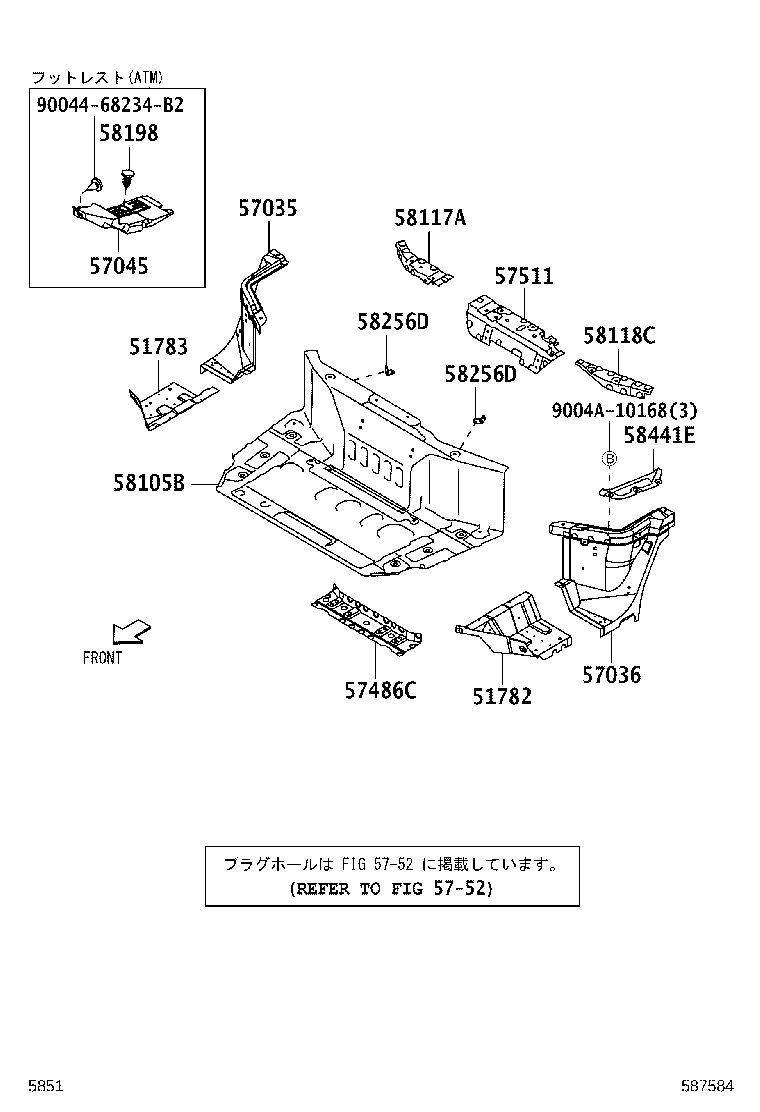

(2007- )

Click highlighted areas on diagram

ﾌﾛｱ ﾊﾟﾈﾙ

diagram 51782 51783 57035 57036 57045 57486C 57511 5752 58105B 58117A 58118C 58198 58256D 58256D 58441E 9004468234B2 9004A10168
Part # Description Qty Price
51782 - PANEL, STEP, LH
51784-BZ040

S403,413

 1
51783 - PANEL, STEP, FRONT RH
51783-BZ040

S403,413

 1
57035 - PANEL SUB-ASSY, FRONT STEP, RH
57035-BZ040

S403,413

 1
57036 - PANEL SUB-ASSY, FRONT STEP, LH
57036-BZ041

S403,413

 1
57036-BZ040

S403,413

 1
57486C - REINFORCEMENT, FRONT FLOOR CROSS, NO.2
57165-BZ030

S403,413

 1
57511 - REINFORCEMENT, FRONT FLOOR, CENTER
57509-BZ030

S403,413

 1
58105B - PANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58105-BZ030

S403,413..5F

 1
58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH
58117-BZ020

S403,413

 1
58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH
58118-BZ050

S403,413

 1
58256D - BRACKET, FRONT FLOOR HARNESS
58256-BZ010

S403,413

 2
58256D - BRACKET, FRONT FLOOR HARNESS
58256-BZ010

S403,413

 2
58441E - COVER, BATTERY SERVICE HOLE
61721-BZ010

S403,413

 1
Common parts
90044-68234B2
9004A-10168
Linked diagrams
5752

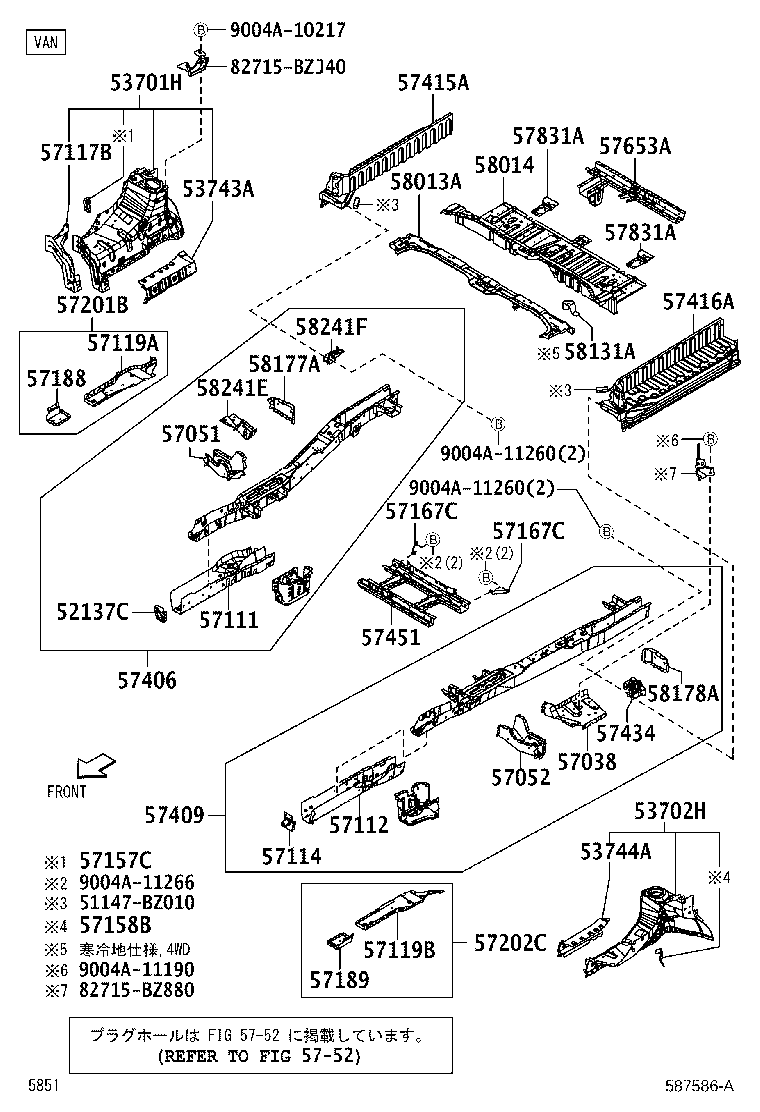

(2007- )VAN

Click highlighted areas on diagram

ﾌﾛｱ ﾒﾝﾊﾞ

diagram 51147BZ010 52137C 53701H 53702H 53743A 53744A 57038 57051 57052 57111 57112 57114 57117B 57119A 57119B 57157C 57158B 57167C 57167C 57188 57189 57201B 57202C 57406 57409 57415A 57416A 57434 57451 5752 57653A 57831A 57831A 58013A 58014 58131A 58177A 58178A 58241E 58241F 82715BZ880 82715BZJ40 9004A10217 9004A11190 9004A11260 9004A11260 9004A11266
Part # Description Qty Price
52137C - BRACKET, FRONT BUMPER ARM MOUNTING, NO.3
52141-BZ040

S403,413

 1
53701H - APRON SUB-ASSY, FRONT FENDER, RH
53701-BZ790

S403,413..VAN

 1
53702H - APRON SUB-ASSY, FENDER, LH
53702-BZ860

S403,413

 1
53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH
53743-BZ050

S403,413

 1
53744A - REINFORCEMENT, FRONT FENDER APRON, FRONT LH
53744-BZ021

S403,413

 1
57038 - STAY SUB-ASSY, FRONT STEP, LH
57038-BZ010

S403,413

 1
57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-BZ250

S403,413

 1
57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-BZ160

S403,413

 1
57111 - MEMBER, FRONT SIDE, RH
57111-BZ260

S403,413

 1
57112 - MEMBER, FRONT SIDE, LH
57112-BZ290

S403,413

 1
57114 - EXTENSION, FRONT SIDE MEMBER, LH
57202-BZ040

S403,413

 1
57117B - REINFORCEMENT, FRONT BUMPER MOUNTING, RH
52021-BZ080

S403,413

 1
57119A - PLATE, FRONT SIDE MEMBER, FRONT RH
57119-BZ080

S403,413

 1
57119B - PLATE, FRONT SIDE MEMBER, FRONT LH
57129-BZ080

S403,413

 1
57157C - BRACKET, FLEXIBLE HOSE, FRONT RH
57157-BZ040

S403,413

 1
57158B - BRACKET, FLEXIBLE HOSE, FRONT LH
57158-BZ050

S403,413

 1
57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH
57167-BZ110

S403,413

 2
57167C - GUSSET, FRONT CROSSMEMBER SIDE, RH
57167-BZ110

S403,413

 2
57188 - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57188-BZ050

S403,413

 1
57189 - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57189-BZ030

S403,413

 1
57201B - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH
57203-BZ040

S403,413

 1
57202C - EXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH
57204-BZ060

S403,413

 1
57406 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57406-BZ250

S403,413..VAN

 1
57409 - MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57409-BZ220

S403,413..VAN

 1
57415A - RAIL SUB-ASSY, FLOOR SIDE, REAR RH
57047-BZ060

S403,413..VAN

 1
57416A - RAIL SUB-ASSY, FLOOR SIDE, REAR LH
57048-BZ080

S403,413..VAN

 1
57434 - REINFORCEMENT, STEP PANEL, LOWER LH
57434-BZ020

S403,413..VAN

 1
57451 - MEMBER, FRONT FLOOR CROSS
57408-BZ050

S413

 1
57653A - MEMBER, REAR FLOOR CROSS, NO.2
57606-BZ260

S413..VAN

 1
57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57831-BZ100

S403,413..VAN

 2
57831A - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.1
57831-BZ100

S403,413..VAN

 2
58013A - PANEL SUB-ASSY, FRONT FLOOR, REAR UPPER
58013-BZ050

S403,413..VAN

 1
58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58014-BZ050

S403,413..VAN

 1
58131A - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1
58131-BZ010

S413..VAN

 1
58177A - EXTENSION, FRONT FLOOR PANEL, RH
58177-BZ020

S403,413..VAN

 1
58178A - EXTENSION, FRONT FLOOR PANEL, LH
58178-BZ020

S403,413..VAN

 1
58241E - PANEL, FLOOR SIDE, FRONT RH
57371-BZ020

S403,413

 1
58241F - PANEL, FLOOR SIDE, RH
57433-BZ020

S403,413..VAN

 1
Common parts
51147-BZ010
82715-BZ880
82715-BZJ40
9004A-10217
9004A-11190
9004A-11260
9004A-11266
Linked diagrams
5752
