S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

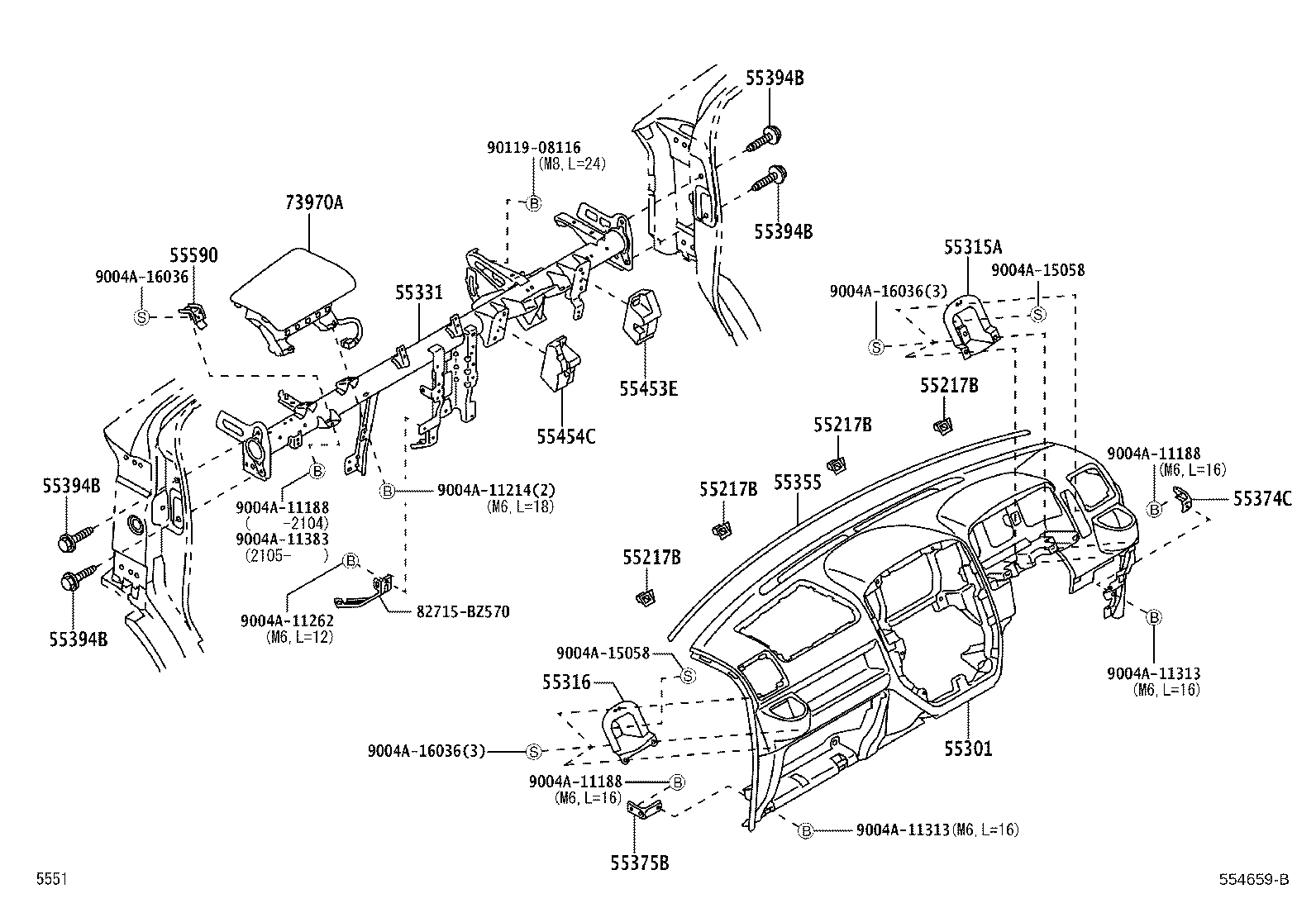

ILLUST NO. 1 OF 4(2007- )

Click highlighted areas on diagram

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ,ﾘｲﾝﾎｰｽ

diagram 55217B 55217B 55217B 55217B 55301 55315A 55316 55331 55355 55374C 55375B 55394B 55394B 55394B 55394B 55453E 55454C 55590 73970A 82715BZ570 9004A11188 9004A11188 9004A11188 9004A11214 9004A11262 9004A11313 9004A11313 9004A11383 9004A15058 9004A15058 9004A16036 9004A16036 9004A16036 9011908116
Part # Description Qty Price
55217B - RETAINER, DASH PANEL SILENCER
55217-B2011

S403,413

 4
55217B - RETAINER, DASH PANEL SILENCER
55217-B2011

S403,413

 4
55217B - RETAINER, DASH PANEL SILENCER
55217-B2011

S403,413

 4
55217B - RETAINER, DASH PANEL SILENCER
55217-B2011

S403,413

 4
55301 - PANEL SUB-ASSY, INSTRUMENT
55311-BZ820B1

S403,413

DK.GRAY,TRIM1#

 1
55315A - SPACER, INSTRUMENT PANEL, NO.1
55315-BZ080

S403,413

 1
55316 - SPACER, INSTRUMENT PANEL, NO.2
55316-BZ010

S403,413

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55305-BZB00

S403,413

 1
55355 - CUSHION, INSTRUMENT PANEL, NO.1
55355-BZ070

S403,413

 1
55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55374-BZ130

S403,413

 1
55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55375-BZ060

S403,413

 1
55394B - BOLT, INSTRUMENT PANEL
55394-BZ020

S403,413

 4
55394B - BOLT, INSTRUMENT PANEL
55394-BZ020

S403,413

 4
55394B - BOLT, INSTRUMENT PANEL
55394-BZ020

S403,413

 4
55394B - BOLT, INSTRUMENT PANEL
55394-BZ020

S403,413

 4
55453E - PAD, INSTRUMENT, LOWER RH
55453-BZ050

S403,413

 1
55454C - PAD, INSTRUMENT, LOWER LH
55454-BZ060

S403,413

 1
55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55590-BZ070

S403,413

 1
73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER
73970-BZ270B0

S403,413

DK.GRAY,TRIM1#

 1
Common parts
82715-BZ570
9004A-11188
9004A-11214
9004A-11262
9004A-11313
9004A-11383
9004A-15058
9004A-16036
90119-08116

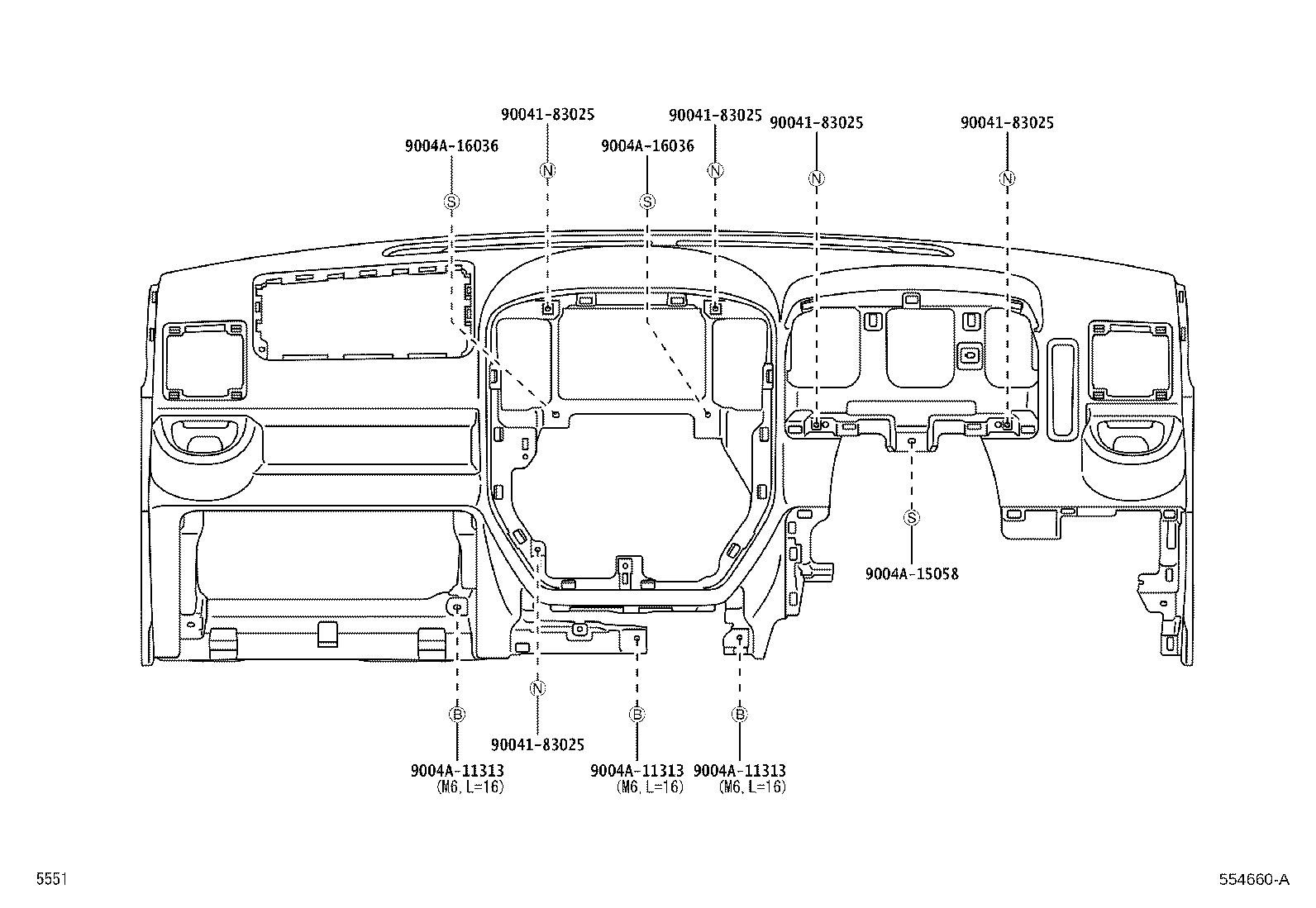

ILLUST NO. 2 OF 4(2007- )

Click highlighted areas on diagram

ﾄﾘﾂｹ ﾎﾞﾙﾄ

diagram 9004183025 9004183025 9004183025 9004183025 9004183025 9004A11313 9004A11313 9004A11313 9004A15058 9004A16036 9004A16036
Part # Description Qty Price
Common parts
90041-83025
9004A-11313
9004A-15058
9004A-16036

ILLUST NO. 3 OF 4(2007- )

Click highlighted areas on diagram

ﾄﾘﾂｹ ﾌﾞﾋﾝ

diagram 55062 55412D 55446A 55522B 55539P 55550 55557A 55557A 55560A 55604B 55670 55680A 58848B 9004A16083 9354053012 9354053012 9354053012
Part # Description Qty Price
55062 - REGISTER SUB-ASSY, INSTRUMENT PANEL, N0.2
55062-BZ030B0

S403,413

DK.GRAY,TRIM1#

 1
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55405-BZ391C0

S413

BLACK,TRIM1#

 1
55446A - BASE, SWITCH HOLE, NO.1
55446-BZ020C0

S413

BLACK,TRIM1#

 1
55522B - COVER, RADIO TUNER OPENING
55522-52020

S403,413

 1
55539P - COVER, SPARE SWITCH HOLE
55539-BZ060C0

S403,413

BLACK,TRIM1#,ｼｰﾄ ﾍﾞﾙﾄ ｳｫｰﾆﾝｸﾞ SW

 1
55550 - DOOR ASSY, GLOVE COMPARTMENT
55550-BZ052B3

S403,413

DK.GRAY,TRIM1#

 1
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-B2040

S403,413

 2
55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK
55557-B2040

S403,413

 2
55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR
55560-BZ050C0

S403,413

BLACK,TRIM1#

 1
55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55618-BZ060B0

S403,413

DK.GRAY,TRIM1#

 2
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55063-BZ040C0

S403,413

BLACK,TRIM1#

 1
55680A - REGISTER ASSY, INSTRUMENT PANEL, NO.4
55064-BZ040C0

S403,413

BLACK,TRIM1#

 1
58848B - COVER, SHIFT LEVER HOLE
58841-BZ082C0

S403,413..5F

BLACK,TRIM1#

 1
Common parts
9004A-16083
93540-53012

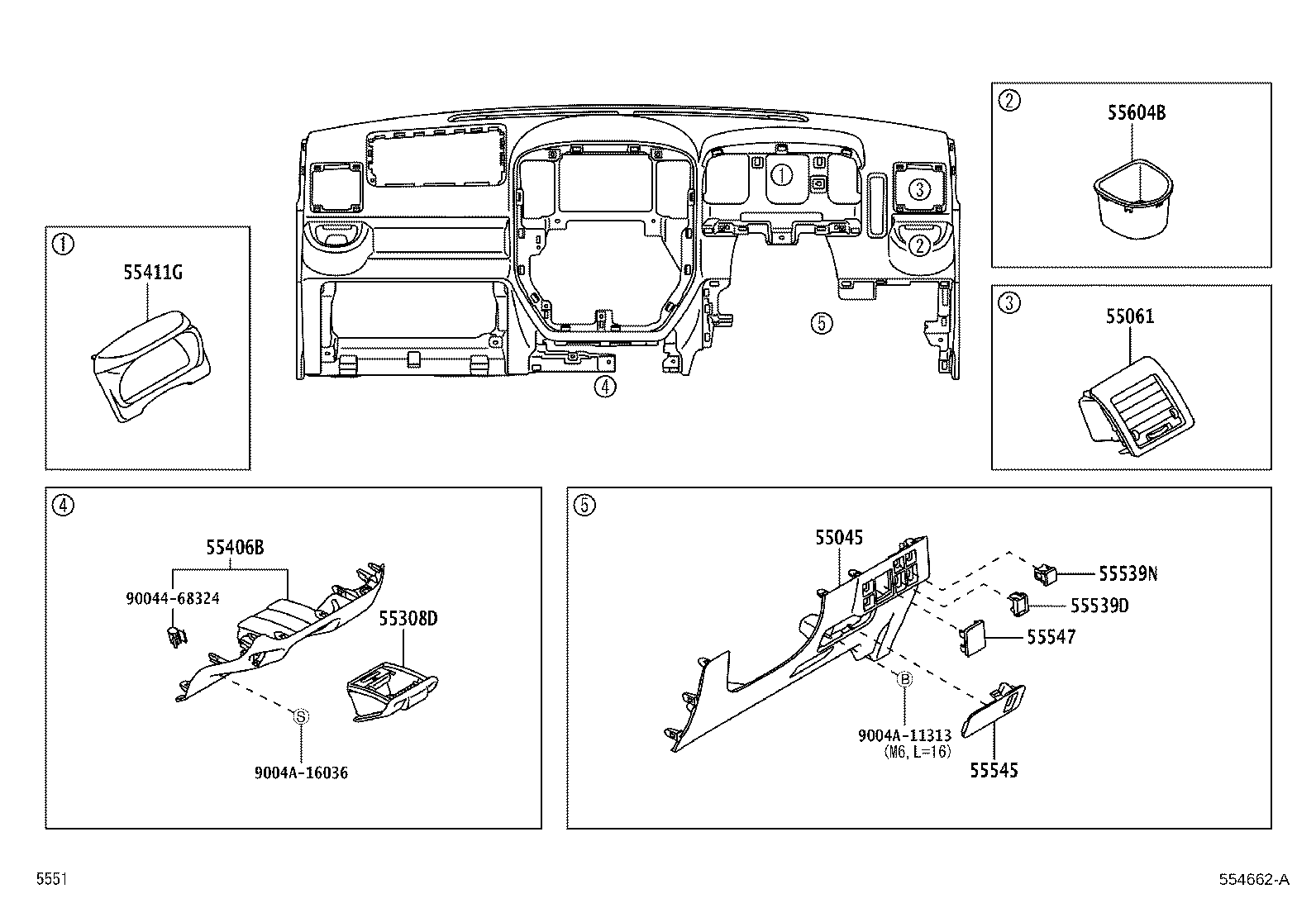

ILLUST NO. 4 OF 4(2007- )

Click highlighted areas on diagram

ﾄﾘﾂｹ ﾌﾞﾋﾝ

diagram 55045 55061 55308D 55406B 55411G 55539D 55539N 55545 55547 55604B 9004468324 9004A11313 9004A16036
Part # Description Qty Price
55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER
55045-BZ190B0

S403,413

DK.GRAY,TRIM1#

 1
55061 - REGISTER SUB-ASSY, INSTRUMENT PANEL, NO.1
55061-BZ140B0

S403,413

DK.GRAY,TRIM1#

 1
55308D - BOX SUB-ASSY, INSTRUMENT PANEL, CENTER
55308-BZ010B0

S403,413

DK.GRAY,TRIM1#

 1
55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER
55406-BZA51B1

S403,413

DK.GRAY,TRIM1#

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55404-BZ240C0

S403,413

BLACK,TRIM1#

 1
55545 - COVER, FUSE BOX OPENING
55545-BZ150B0

S403,413

DK.GRAY,TRIM1#

 1
55604B - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55618-BZ060B0

S403,413

DK.GRAY,TRIM1#

 2
Common parts
90044-68324
9004A-11313
9004A-16036
