S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

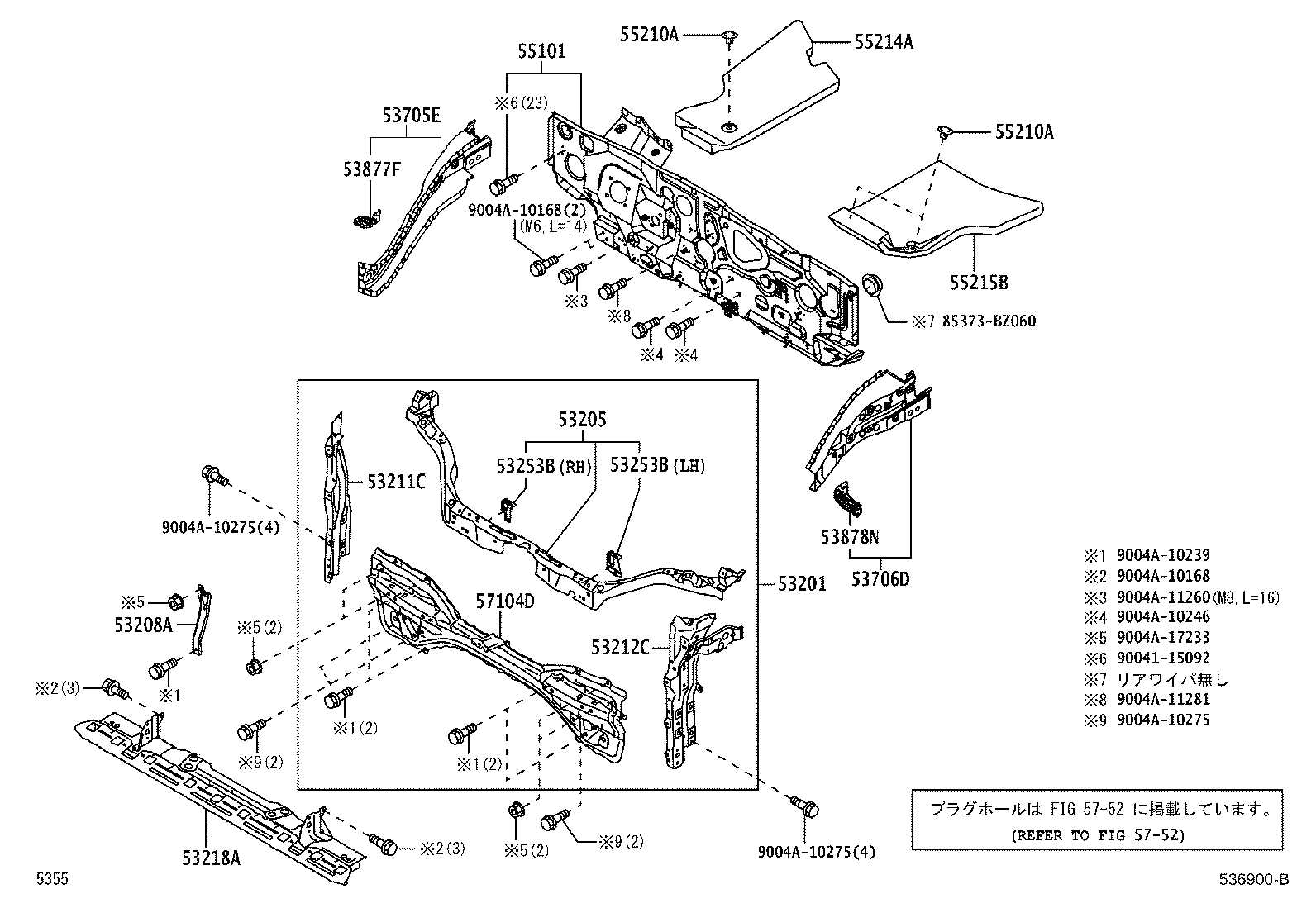

Click highlighted areas on diagram

diagram 53201 53205 53208A 53211C 53212C 53218A 53253B 53253B 53705E 53706D 53877F 53878N 55101 55210A 55210A 55214A 55215B 57104D 5752 85373BZ060 9004115092 9004A10168 9004A10168 9004A10239 9004A10246 9004A10275 9004A10275 9004A10275 9004A11260 9004A11281 9004A17233
Part # Description Qty Price
53201 - SUPPORT SUB-ASSY, RADIATOR
53201-BZ330

S403,413

 1
53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER
53205-BZ133

S403,413

 1
53208A - SUPPORT SUB-ASSY, HOOD LOCK
53215-BZ240

S403,413

 1
53211C - SUPPORT, RADIATOR, RH
53211-BZ220

S403,413

 1
53212C - SUPPORT, RADIATOR, LH
53203-BZ200

S403,413

 1
53218A - SUPPORT, RADIATOR, LOWER
53028-BZ200

S403,413

 1
53253B - BRACKET, RADIATOR MOUNTING, UPPER
53254-BZ020

S403,413

左側

 1
53253-BZ020

S403,413

右側

 1
53253B - BRACKET, RADIATOR MOUNTING, UPPER
53254-BZ020

S403,413

左側

 1
53253-BZ020

S403,413

右側

 1
53705E - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH
53705-BZ070

S403,413

 1
53706D - MEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH
53706-BZ100

S403,413

 1
53877F - BRACKET, FRONT FENDER LINER, RH
53707-BZ030

S403,413

 1
53878N - BRACKET, FRONT FENDER LINER, LH
53708-BZ020

S403,413

 1
55101 - PANEL SUB-ASSY, DASH
55101-BZJ60

S403,413..5F

 1
55210A - CLIP
9004A-46131B0

S403,413

DK.GRAY

 3
55210A - CLIP
9004A-46131B0

S403,413

DK.GRAY

 3
55214A - PAD, DASH PANEL INSULATOR, NO.2
55214-BZ120

S403,413

 1
55215B - PAD, DASH PANEL INSULATOR, NO.3
55215-BZ070

S403,413

 1
57104D - MEMBER SUB-ASSY, FRONT CROSS
57104-BZ230

S403,413

 1
Common parts
85373-BZ060
90041-15092
9004A-10168
9004A-10239
9004A-10246
9004A-10275
9004A-11260
9004A-11281
9004A-17233
Linked diagrams
5752
