S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

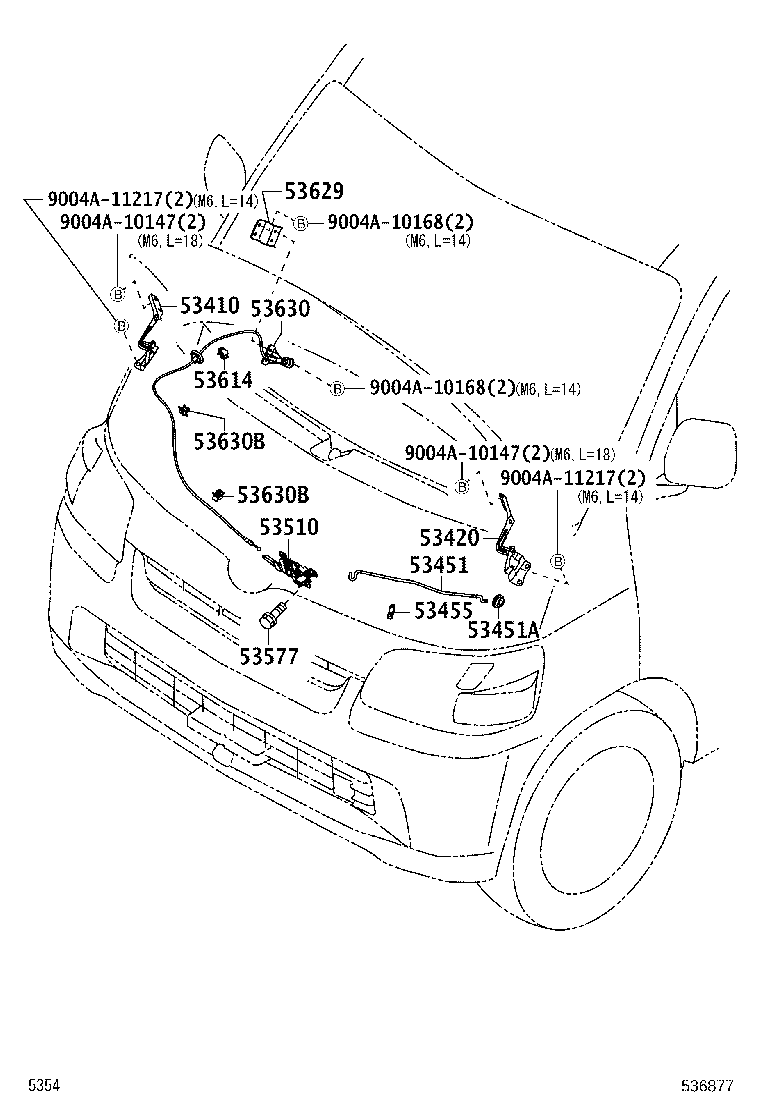

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53455 53510 53577 53614 53629 53630 53630B 53630B 9004A10147 9004A10147 9004A10168 9004A10168 9004A11217 9004A11217
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53401-BZ030

S403,413

 1
53420 - HINGE ASSY, HOOD, LH
53402-BZ030

S403,413

 1
53451 - ROD, HOOD SUPPORT
53440-BZ080

S403,413

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
9004A-48054

S403,413

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-BZ080

S403,413

 1
53510 - LOCK ASSY, HOOD
53510-BZ090

S403,413

 1
53577 - BOLT, HOOD LOCK
9004A-11253

S403,413

M6,L=14

 3
53614 - CLAMP, HOOD LOCK CONTROL CABLE
90467-09043

S403,413

 1
53629 - COVER, HOOD LOCK CONTROL CABLE
53621-BZ010

S403,413

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-BZ100

S403,413

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90467-08043

S403,413

 2
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
90467-08043

S403,413

 2
Common parts
9004A-10147
9004A-10168
9004A-11217
