S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

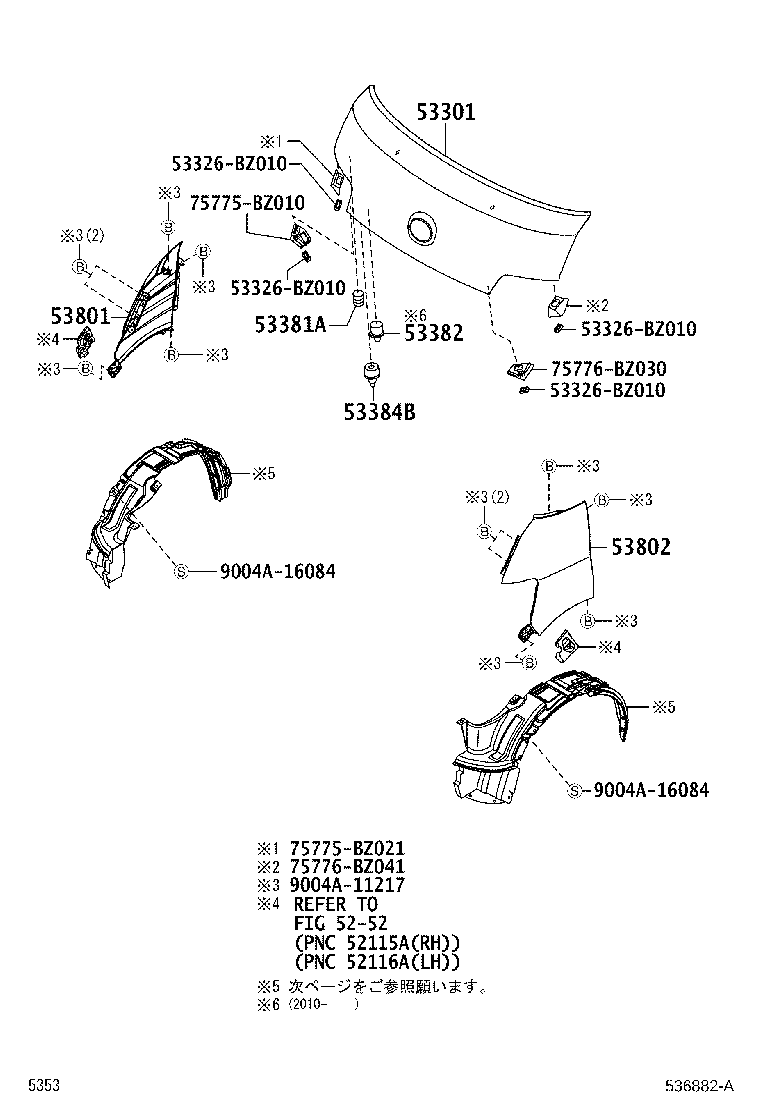

ILLUST NO. 1 OF 2(2007- )

Click highlighted areas on diagram

diagram 5252 53301 53326BZ010 53326BZ010 53326BZ010 53326BZ010 53381A 53382 53384B 53801 53802 75775BZ010 75775BZ021 75776BZ030 75776BZ041 9004A11217 9004A16084 9004A16084
Part # Description Qty Price
53301 - HOOD SUB-ASSY
53301-BZ360

S403,413

 1
53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53381-BZ010

S403,413

 2
53382 - BUMPER, HOOD, FRONT
9004A-54015

S403,413

 2
53384B - CUSHION, HOOD, CENTER
53384-BZ020

S403,413

 2
53801 - FENDER SUB-ASSY, FRONT RH
53811-BZ182

S403,413

 1
53802 - FENDER SUB-ASSY, FRONT LH
53812-BZ182

S403,413

 1
Common parts
53326-BZ010
75775-BZ010
75775-BZ021
75776-BZ030
75776-BZ041
9004A-11217
9004A-16084
Linked diagrams
5252
