S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )GL

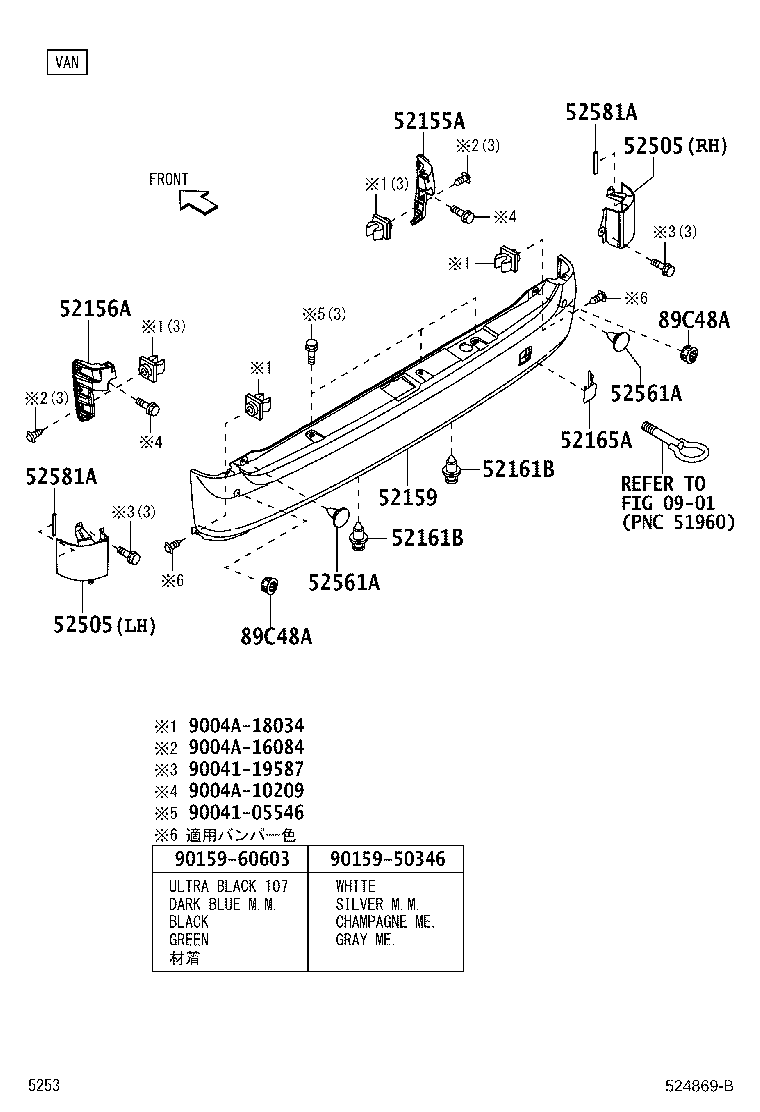

Click highlighted areas on diagram

diagram 0901 52155A 52156A 52159 52161B 52161B 52165A 52505 52505 52561A 52561A 52581A 52581A 89C48A 89C48A 9004105546 9004119587 9004A10209 9004A16084 9004A18034 9015950346 9015960603
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-BZ060

S403,413..VAN

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-BZ070

S403,413..VAN

 1
52159 - COVER, REAR BUMPER
52159-BZK70B0

S403,413..GL

#,SILVER M.M.,1E7

 1
52159-BZK70A0

S403,413..GL

#,WHITE,W09

 1
52161B - PIECE, REAR BUMPER
9004A-46323

S403,413..VAN

 2
52161B - PIECE, REAR BUMPER
9004A-46323

S403,413..VAN

 2
52165A - COVER, REAR BUMPER, UPR RH
52165-BZ180B0

S403,413..GL

#,SILVER M.M.,1E7

 1
52165-BZ180A0

S403,413..GL

#,WHITE,W09

 1
52505 - FILLER SUB-ASSY, REAR BUMPER
52506-BZ020

S403,413..VAN

右側

 1
52507-BZ020

S403,413..VAN

左側

 1
52505 - FILLER SUB-ASSY, REAR BUMPER
52506-BZ020

S403,413..VAN

右側

 1
52507-BZ020

S403,413..VAN

左側

 1
52561A - CLIP(FOR REAR BUMPER RETAINER)
9004A-46334

S403,413..VAN

 2
52561A - CLIP(FOR REAR BUMPER RETAINER)
9004A-46334

S403,413..VAN

 2
52581A - PROTECTOR, REAR BUMPER FILLER
52581-BZ110

S403,413..VAN

 2
52581A - PROTECTOR, REAR BUMPER FILLER
52581-BZ110

S403,413..VAN

 2
89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER
89348-BZ230A0

S403,413..GL

WHITE,W09,右側

 1
89348-BZ230B0

S403,413..GL

SILVER M.M.,1E7,右側

 1
89348-BZ240A0

S403,413..GL

WHITE,W09,左側

 1
89348-BZ240B0

S403,413..GL

SILVER M.M.,1E7,左側

 1
89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER
89348-BZ230A0

S403,413..GL

WHITE,W09,右側

 1
89348-BZ230B0

S403,413..GL

SILVER M.M.,1E7,右側

 1
89348-BZ240A0

S403,413..GL

WHITE,W09,左側

 1
89348-BZ240B0

S403,413..GL

SILVER M.M.,1E7,左側

 1
Common parts
90041-05546
90041-19587
9004A-10209
9004A-16084
9004A-18034
90159-50346
90159-60603
Linked diagrams
0901
