S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

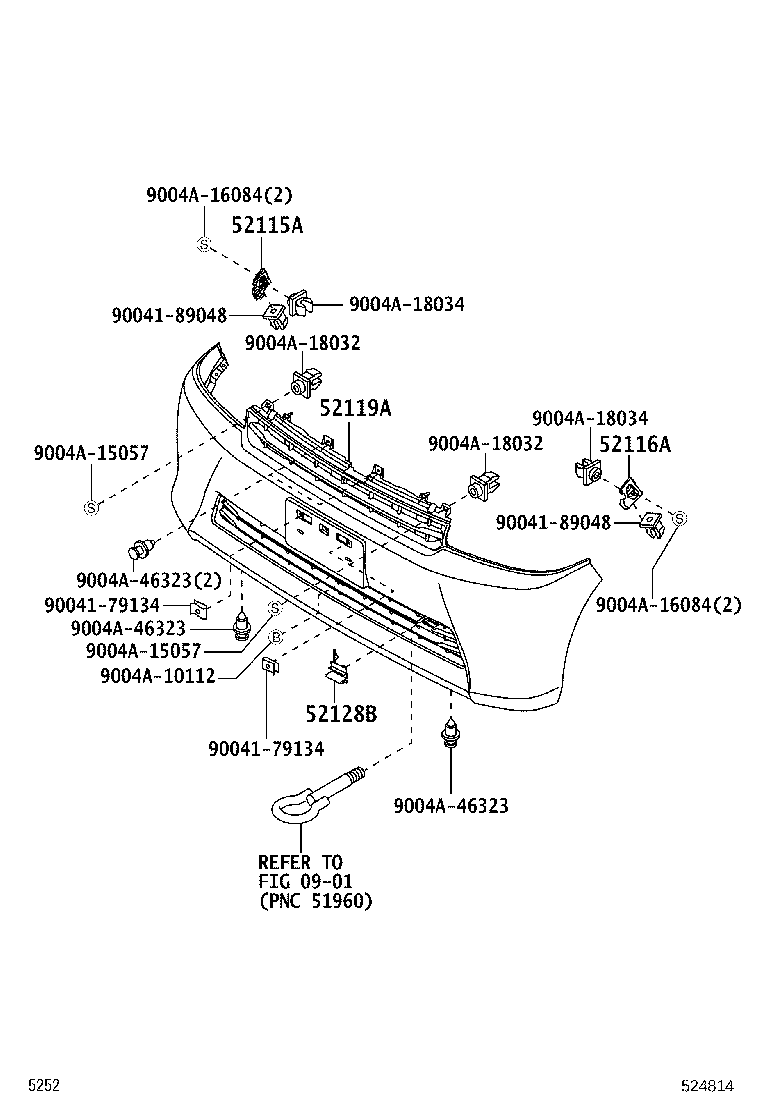

Click highlighted areas on diagram

diagram 0901 52115A 52116A 52119A 52128B 9004179134 9004179134 9004189048 9004189048 9004A10112 9004A15057 9004A15057 9004A16084 9004A16084 9004A18032 9004A18032 9004A18034 9004A18034 9004A46323 9004A46323 9004A46323
Part # Description Qty Price
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-BZ100

S403,413

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-BZ090

S403,413

 1
52119A - COVER, FRONT BUMPER
52119-BZP60B0

S403,413..DXED,GL

SILVER M.M.,1E7

 1
52119-BZP60A0

S403,413..DXED,GL

WHITE,W09

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-BZ200

S403,413

 1
Common parts
90041-79134
90041-89048
9004A-10112
9004A-15057
9004A-16084
9004A-18032
9004A-18034
9004A-46323
Linked diagrams
0901
