S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

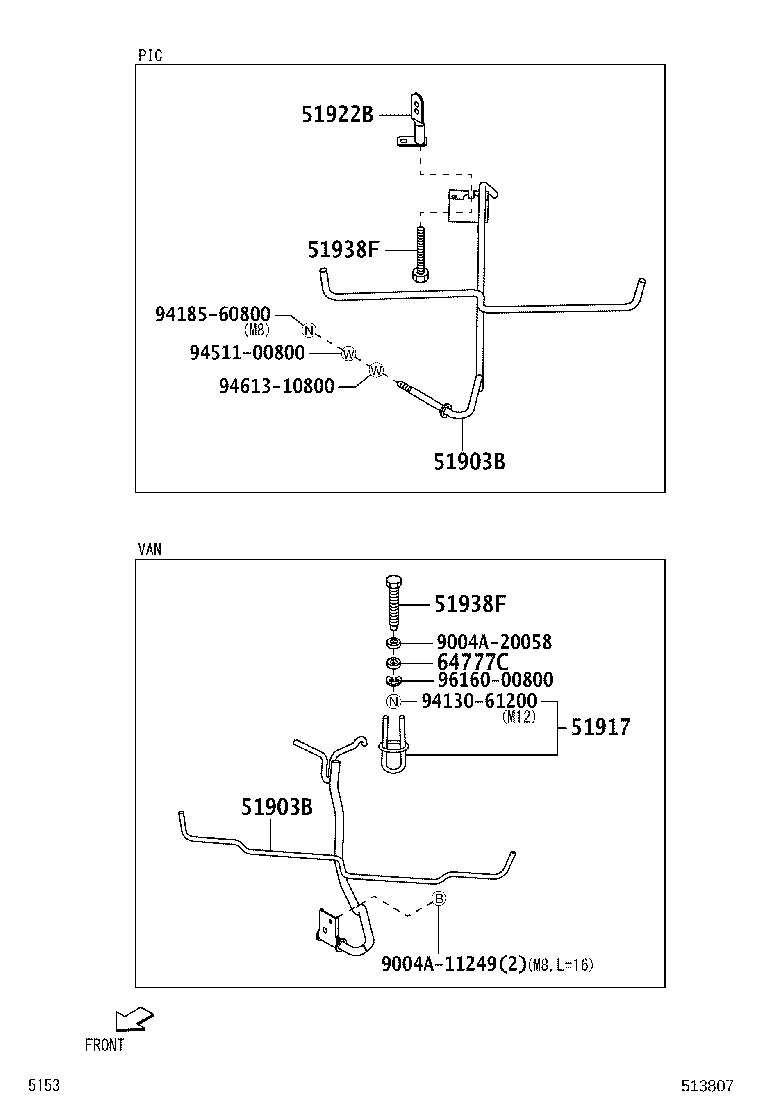

Click highlighted areas on diagram

diagram 51903B 51903B 51917 51922B 51938F 51938F 64777C 9004A11249 9004A20058 9413061200 9418560800 9451100800 9461310800 9616000800
Part # Description Qty Price
51903B - CARRIER SUB-ASSY, SPARE WHEEL
51903-BZ230

S403,413..VAN

 1
51903B - CARRIER SUB-ASSY, SPARE WHEEL
51903-BZ230

S403,413..VAN

 1
51917 - HOOK, SPARE WHEEL CARRIER
51909-BZ031

S403,413..VAN

 1
51938F - BOLT(FOR SPARE WHEEL CARRIER LOCK)
9004A-10154

S403,413..VAN

 1
51938F - BOLT(FOR SPARE WHEEL CARRIER LOCK)
9004A-10154

S403,413..VAN

 1
64777C - CUSHION, SPARE WHEEL
64777-BZ010

S403,413..VAN

 1
Common parts
9004A-11249
9004A-20058
94130-61200
94185-60800
94511-00800
94613-10800
96160-00800
