S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(2007- )VAN

Click highlighted areas on diagram

VAN

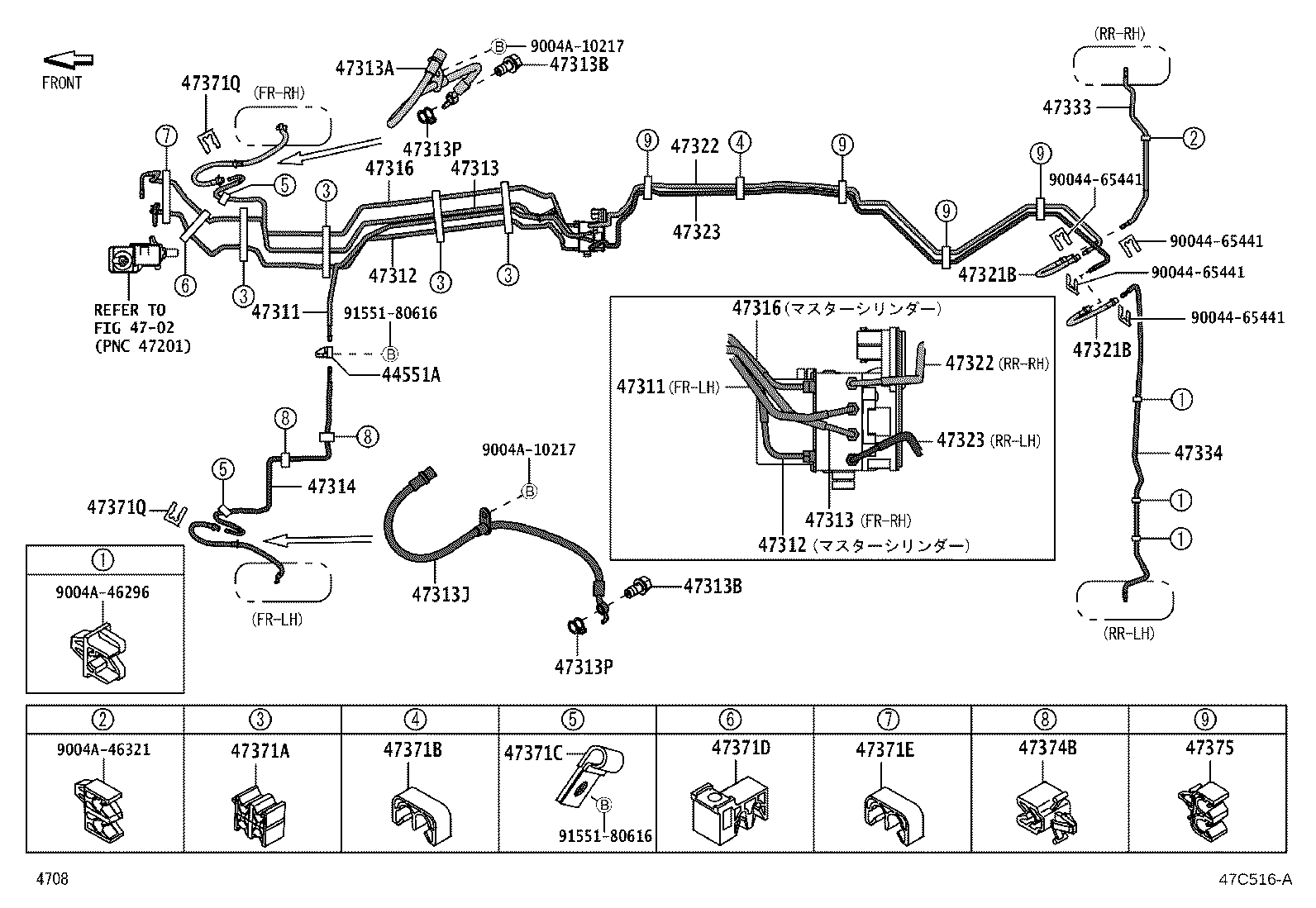

diagram 44551A 4702 47311 47311 47312 47312 47313 47313 47313A 47313B 47313B 47313J 47313P 47313P 47314 47316 47316 47321B 47321B 47322 47322 47323 47323 47333 47334 47371A 47371B 47371C 47371D 47371E 47371Q 47371Q 47374B 47375 9004465441 9004465441 9004465441 9004465441 9004A10217 9004A10217 9004A46296 9004A46321 9155180616 9155180616
Part # Description Qty Price
44551A - WAY, NO.1(FOR BRAKE ACTUATOR)
44508-B5010

S403,413

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-BZ640

S403,413

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-BZ640

S403,413

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-BZ640

S403,413

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-BZ640

S403,413

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-BZ600

S403,413

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-BZ600

S403,413

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
9004A-94143

S413

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

S403,413

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

S403,413

 2
47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT)
9004A-94144

S413

 1
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

S403,413

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

S403,413

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-BZ630

S403,413

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-BZ050

S403,413

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-BZ050

S403,413

 1
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
9004A-94139

S403,413..VAN

 2
47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
9004A-94139

S403,413..VAN

 2
47322 - TUBE, REAR BRAKE, NO.2
47322-BZ410

S403,413..VAN

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-BZ410

S403,413..VAN

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-BZ250

S403,413..VAN

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-BZ250

S403,413..VAN

 1
47333 - TUBE, REAR BRAKE, NO.12
47333-BZ060

S403,413..VAN

 1
47334 - TUBE, REAR BRAKE, NO.13
47334-BZ090

S403,413..VAN

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-B5030

S403,413

 4
47371B - CLAMP, BRAKE TUBE, NO.6
90464-00904

S403,413..VAN

 1
47371C - CLAMP, BRAKE TUBE, NO.7
96221-10706

S403,413

 2
47371D - CLAMP, BRAKE TUBE, NO.8
47371-BZ050

S403,413

 1
47371E - CLAMP, BRAKE TUBE, NO.9
47371-B5050

S403,413

 1
47371Q - CLAMP, BRAKE TUBE, NO.15
90044-65441

S403,413

 2
47371Q - CLAMP, BRAKE TUBE, NO.15
90044-65441

S403,413

 2
47374B - CLAMP, BRAKE TUBE, NO.4
47371-BZ060

S403,413

 2
47375 - CLAMP, BRAKE TUBE, NO.5
90044-64891

S403,413..VAN

 4
Common parts
90044-65441
9004A-10217
9004A-46296
9004A-46321
91551-80616
Linked diagrams
4702

ILLUST NO. 2 OF 2(2007- )

Click highlighted areas on diagram

ｱｸﾁｭｴｰﾀ

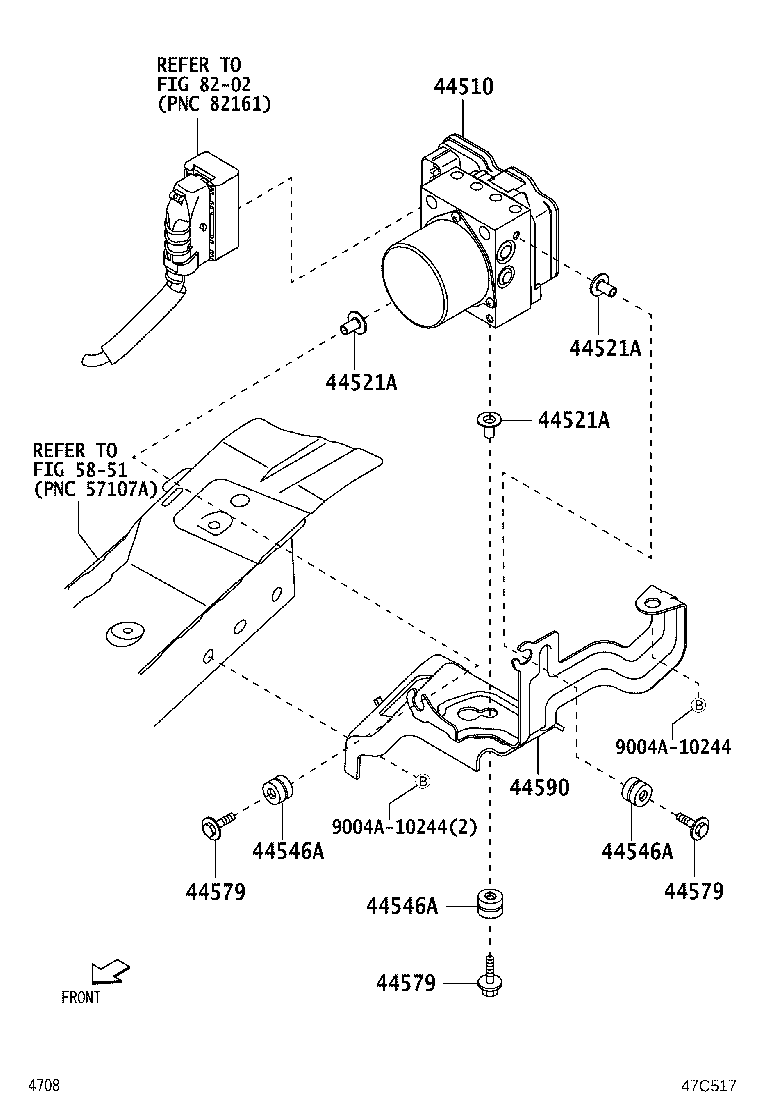

diagram 44510 44521A 44521A 44521A 44546A 44546A 44546A 44579 44579 44579 44590 5851 8202 9004A10244 9004A10244
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-B5310

S413..VAN..5F

 1
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-B1010

S403,413

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-B1010

S403,413

 3
44521A - COLLAR, BRAKE ACTUATOR CASE, NO.1
44521-B1010

S403,413

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-BZ020

S403,413

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-BZ020

S403,413

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-BZ020

S403,413

 3
44579 - BOLT, BRAKE ACTUATOR BRACKET
90119-06834

S403,413

M6,L=25

 3
44579 - BOLT, BRAKE ACTUATOR BRACKET
90119-06834

S403,413

M6,L=25

 3
44579 - BOLT, BRAKE ACTUATOR BRACKET
90119-06834

S403,413

M6,L=25

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-BZ160

S403,413

 1
Common parts
9004A-10244
Linked diagrams
5851
8202
