S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

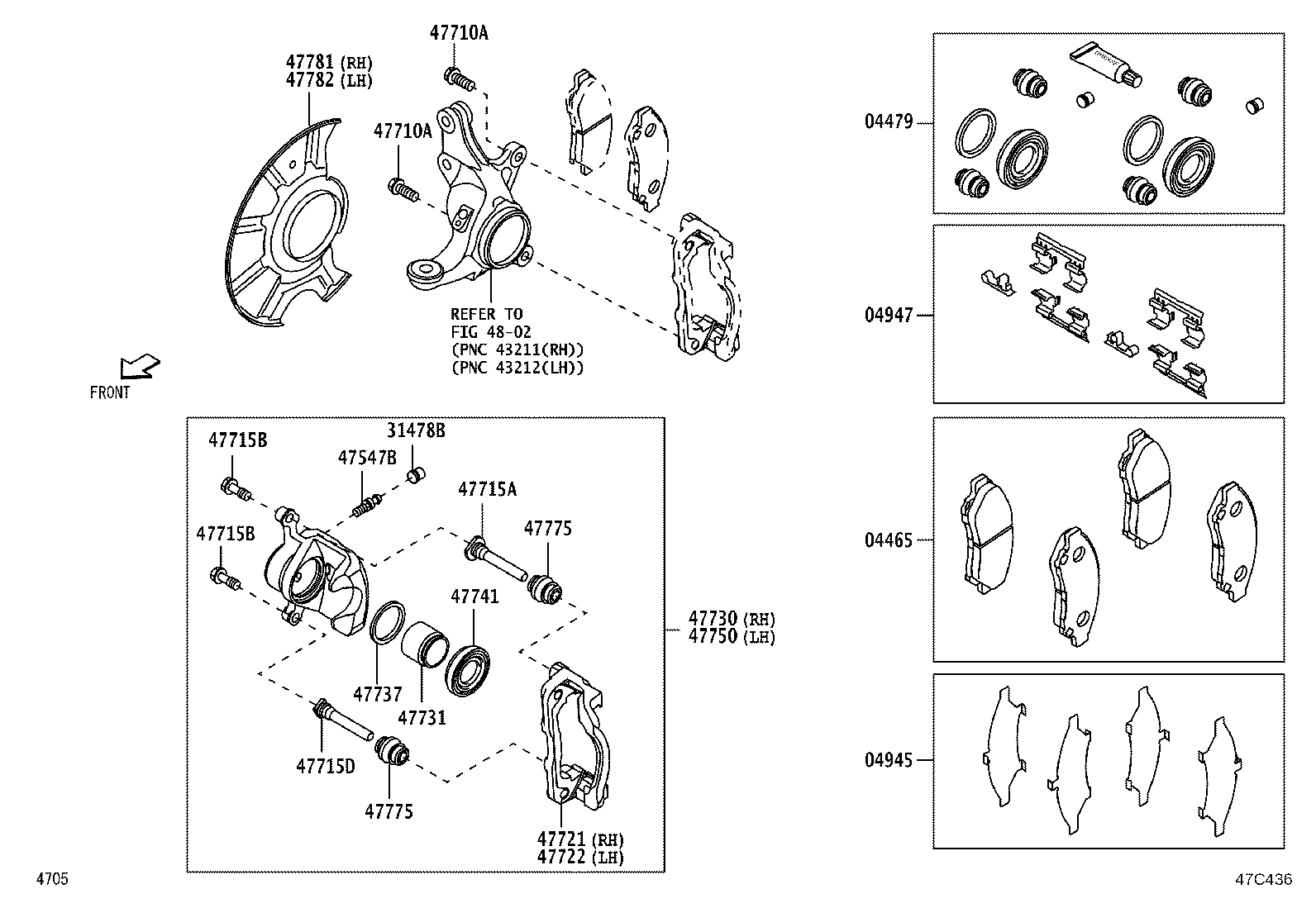

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 47547B 47710A 47710A 47715A 47715B 47715B 47715D 47721 47722 47730 47731 47737 47741 47750 47775 47775 47781 47782 4802
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-BZ280

S403,413

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-BZ131

S403,413

 1
04945 - SHIM KIT, ANTI SQUEAL, FRONT
04945-BZ040

S403,413

 1
04947 - FITTING KIT, DISC BRAKE, FRONT
04947-BZ040

S403,413

 1
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47548-BZ080

S403,413

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
47547-BZ050

S403,413

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
9004A-10171

S403,413

 4
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
9004A-10171

S403,413

 4
47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE
47715-BZ120

S403,413

 2
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
9004A-10110

S403,413

 4
47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
9004A-10110

S403,413

 4
47715D - PIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47715-BZ090

S403,413

 2
47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH
47721-BZ060

S403,413

 1
47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH
47721-BZ060

S403,413

 1
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-BZ060

S403,413

 1
47731 - PISTON, FRONT DISC BRAKE
47731-BZ050

S403,413

 2
47737 - SEAL, FRONT DISC BRAKE CYLINDER PISTON
47737-BZ050

S403,413

 2
47741 - BOOT, FRONT DISC BRAKE CYLINDER
47741-BZ090

S403,413

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-BZ060

S403,413

 1
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-BZ010

S403,413

 4
47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47775-BZ010

S403,413

 4
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-BZ200

S403,413

 1
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-BZ200

S403,413

 1
Linked diagrams
4802
