S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )VAN

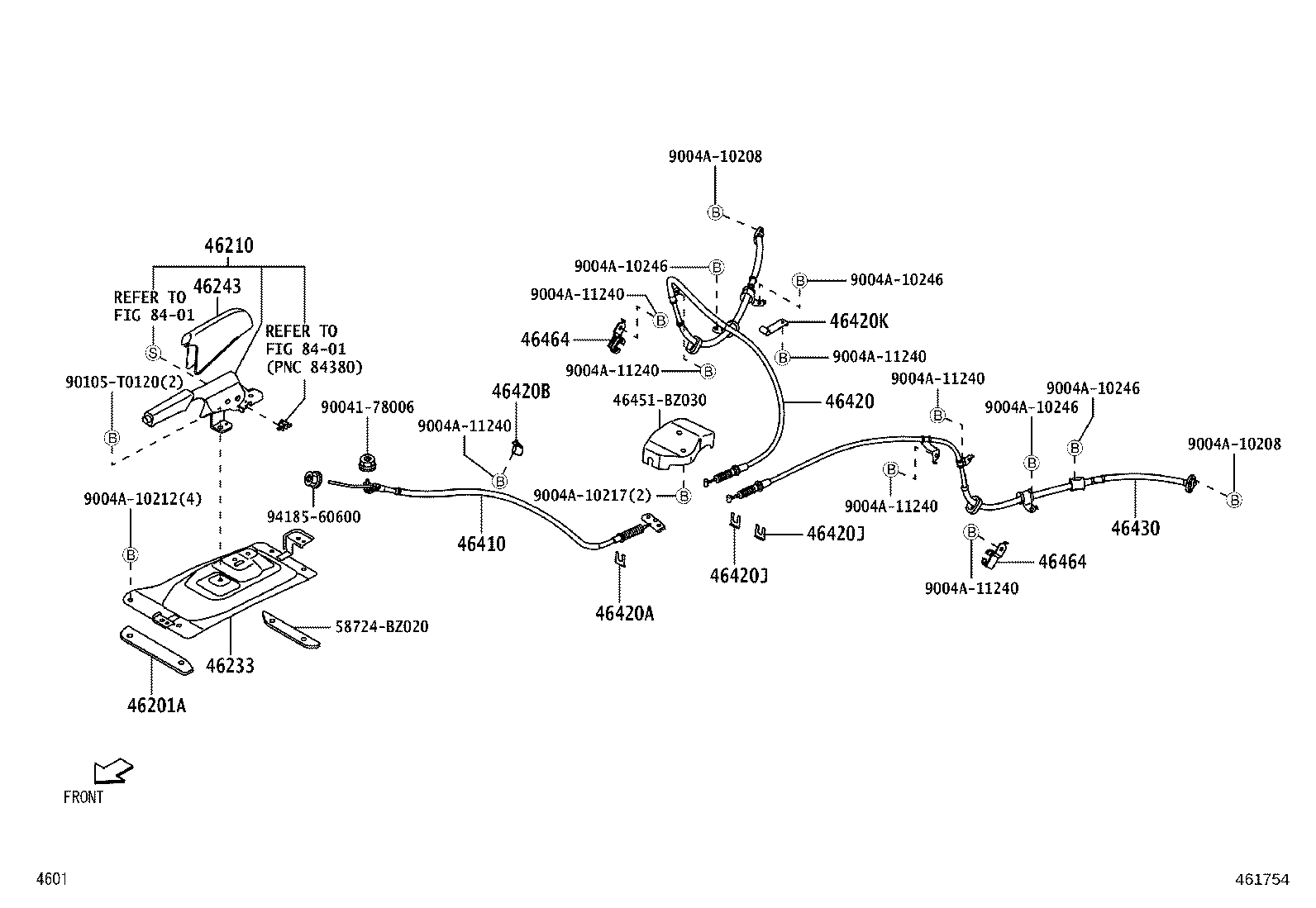

Click highlighted areas on diagram

VAN

diagram 46201A 46210 46233 46243 46410 46420 46420A 46420B 46420J 46420J 46420K 46430 46451BZ030 46464 46464 58724BZ020 8401 8401 9004178006 9004A10208 9004A10208 9004A10212 9004A10217 9004A10246 9004A10246 9004A10246 9004A10246 9004A11240 9004A11240 9004A11240 9004A11240 9004A11240 9004A11240 9004A11240 90105T0120 9418560600
Part # Description Qty Price
46201A - CUSHION(FOR PARKING BRAKE PEDAL)
58723-BZ020

S403,413

 1
46210 - LEVER ASSY, PARKING BRAKE
46210-BZ121B0

S403,413

DK.GRAY,TRIM1#

 1
46233 - SUPPORT, PARKING BRAKE CENTER
46133-BZ010

S403,413

 1
46243 - COVER, PARKING BRAKE LEVER
46243-BZ010B0

S403,413

DK.GRAY,TRIM1#

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-BZ030

S403,413..VAN

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-BZ260

S403,413..VAN

 1
46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE)
90044-65038

S403,413..VAN

 1
46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE)
9004A-46278

S403,413..VAN

 1
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90044-65038

S403,413..VAN

 2
46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE)
90044-65038

S403,413..VAN

 2
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
9004A-46285

S403,413..VAN

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-BZ260

S403,413..VAN

 1
46464 - PLATE, CABLE CLAMP SUPPORT
46464-BZ010

S403,413..VAN

 2
46464 - PLATE, CABLE CLAMP SUPPORT
46464-BZ010

S403,413..VAN

 2
Common parts
46451-BZ030
58724-BZ020
90041-78006
9004A-10208
9004A-10212
9004A-10217
9004A-10246
9004A-11240
90105-T0120
94185-60600
Linked diagrams
8401
