S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

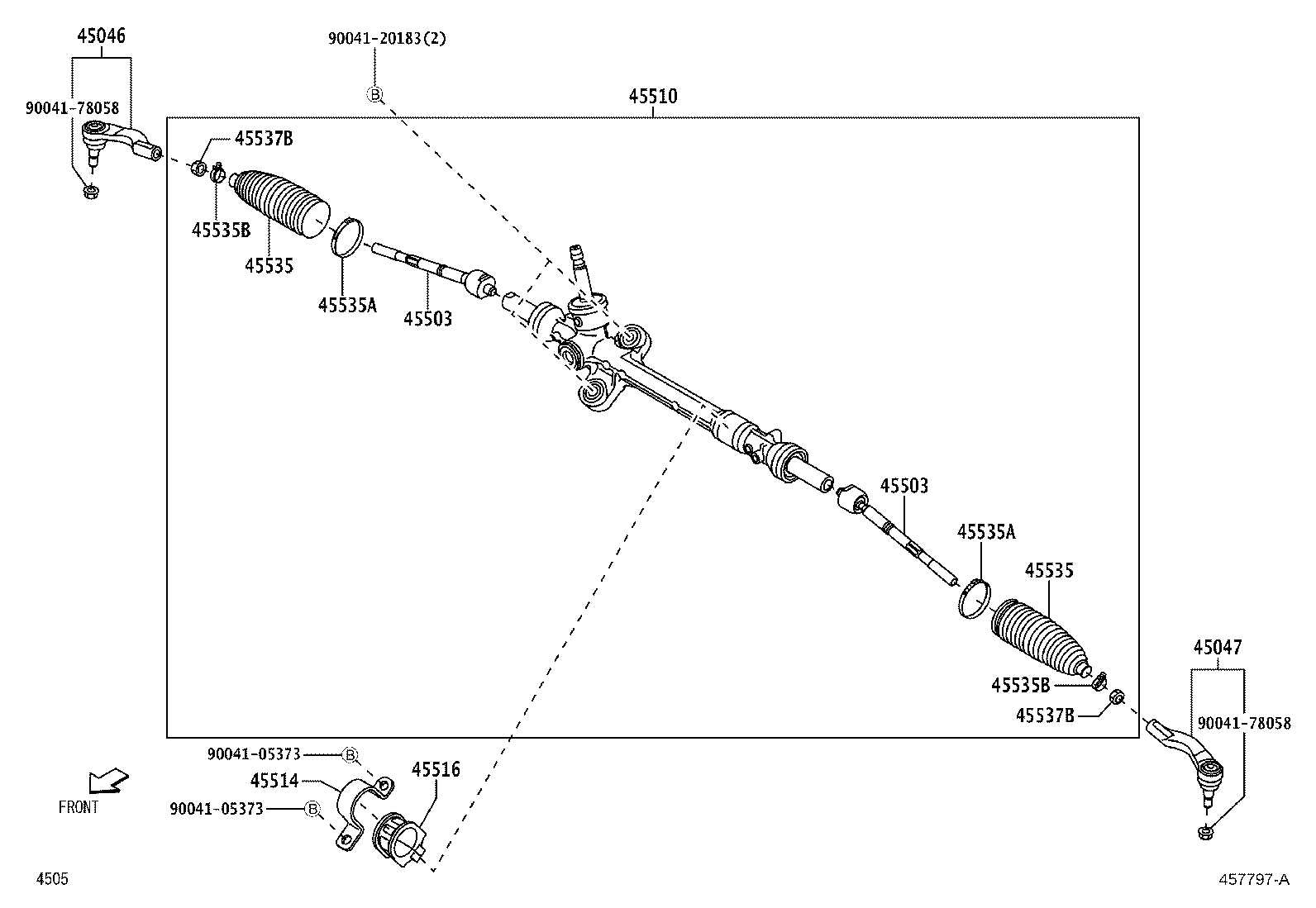

Click highlighted areas on diagram

diagram 45046 45047 45503 45503 45510 45514 45516 45535 45535 45535A 45535A 45535B 45535B 45537B 45537B 9004105373 9004105373 9004120183 9004178058 9004178058
Part # Description Qty Price
45046 - END SUB-ASSY, TIE ROD, RH
45046-B9440

S403,413

 1
45047 - END SUB-ASSY, TIE ROD, LH
45047-B9430

S403,413

 1
45503 - END SUB-ASSY, STEERING RACK
45503-BZ240

S403,413

 2
45503 - END SUB-ASSY, STEERING RACK
45503-BZ240

S403,413

 2
45510 - GEAR ASSY, STEERING
45502-BZ070

S413

 1
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45514-BZ090

S403,413

 1
45516 - GROMMET, STEERING RACK HOUSING, NO.1
45517-BZ050

S403,413

 1
45535 - BOOT, STEERING RACK, NO.1
45535-BZ120

S403,413

 2
45535 - BOOT, STEERING RACK, NO.1
45535-BZ120

S403,413

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
45538-BZ050

S403,413

 2
45535A - CLAMP(FOR STEERING RACK BOOT)
45538-BZ050

S403,413

 2
45535B - CLIP(FOR STEERING RACK BOOT)
45537-BZ030

S403,413

 2
45535B - CLIP(FOR STEERING RACK BOOT)
45537-BZ030

S403,413

 2
45537B - NUT, RACK END LOCK
9004A-17247

S403,413

M14

 2
45537B - NUT, RACK END LOCK
9004A-17247

S403,413

M14

 2
Common parts
90041-05373
90041-20183
90041-78058
