S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

Click highlighted areas on diagram

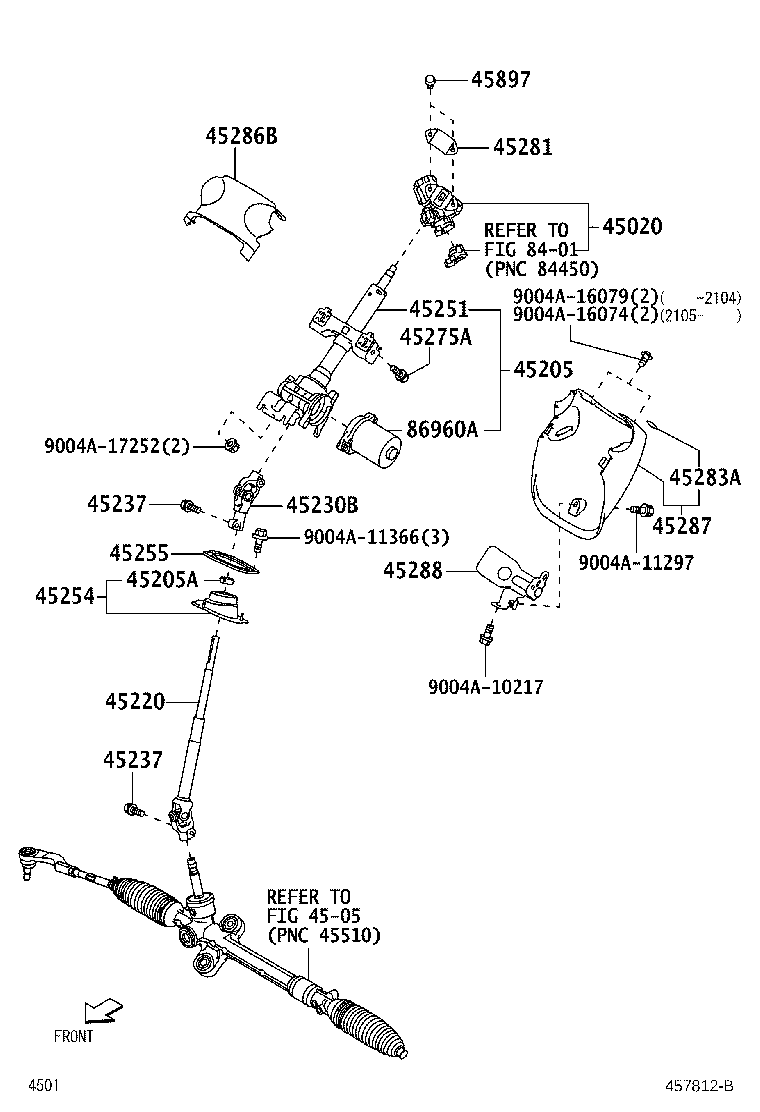

diagram 45020 4505 45205 45205A 45220 45230B 45237 45237 45251 45254 45255 45275A 45281 45283A 45286B 45287 45288 45897 8401 86960A 9004A10217 9004A11297 9004A11366 9004A16074 9004A16079 9004A17252
Part # Description Qty Price
45020 - BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH
45020-BZ280

S403,413..5F

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45205-BZ210

S403,413

 1
45205A - BUSH(FOR STEERING COLUMN TUBE)
45273-B5020

S403,413

 1
45220 - SHAFT ASSY, STEERING INTERMEDIATE
45220-BZ290

S403,413

 1
45230B - JOINT ASSY, STEERING SHAFT UNIVERSAL
45230-BZ010

S403,413

 1
45237 - BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT)
90041-19747

S403,413

M8,L=30

 2
45237 - BOLT, FLEXIBLE ATTACHING(FOR STEERING MAIN SHAFT)
90041-19747

S403,413

M8,L=30

 2
45251 - TUBE SET, STEERING COLUMN
45251-B9260

S403,413

 1
45254 - SHIELD, STEERING COLUMN HOLE
45254-BZ210

S403,413

 1
45255 - PLATE, STEERING COLUMN HOLE COVER
45223-BZ010

S403,413

 1
45275A - BOLT, HEXAGON(FOR STEERING COLUMN BRACKET)
90041-20097

S403,413

 2
45281 - HOUSING, STEERING COLUMN
45281-BZ140

S403,413

 1
45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45283-BZ010

S403,413

 1
45286B - COVER, STEERING COLUMN, UPR
45286-BZ230B0

S403,413

DK.GRAY,TRIM1#

 1
45287 - COVER, STEERING COLUMN, LWR
45287-BZ410B0

S403,413

DK.GRAY,TRIM1#

 1
45288 - PLATE, STEERING COLUMN COVER
45288-BZ060

S403,413

 1
45897 - BOLT, STEERING LOCK SET
45897-B2010

S403,413

 2
86960A - MOTOR SET, POWER STEERING
80960-B9180

S403,413

 1
Common parts
9004A-10217
9004A-11297
9004A-11366
9004A-16074
9004A-16079
9004A-17252
Linked diagrams
4505
8401
