S413M-ZMDFJD (2020)
Toyota Lite/Townace
Production
Jul 2020
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )S413

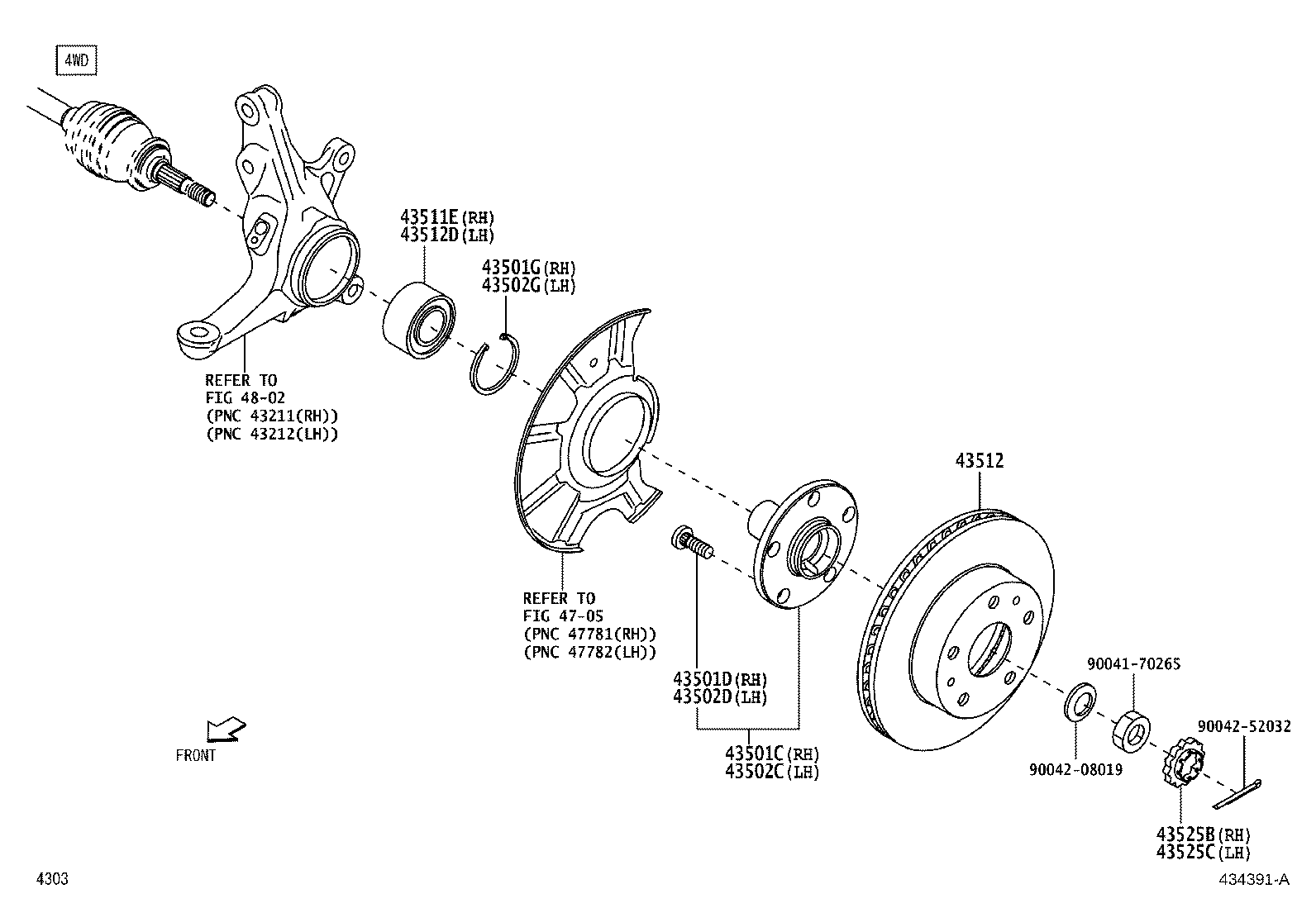

Click highlighted areas on diagram
4WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-BZ170 |
S413 |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90049-12055 |
S413 |
5 | ||
| 43501G - RING, HOLE SNAP (FOR FRONT AXLE HUB RH) | ||||
| 90045-21188 |
S403,413 |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-BZ170 |
S413 |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90049-12055 |
S413 |
5 | ||
| 43502G - RING, HOLE SNAP (FOR FRONT AXLE HUB LH) | ||||
| 90045-21188 |
S403,413 |
1 | ||
| 43511E - BEARING (FOR FRONT AXLE HUB RH) | ||||
| 43560-BZ050 |
S403,413 |
1 | ||
| 43512 - DISC, FRONT | ||||
| 43512-BZ380 |
S403,413 塗装有り |
2 | ||
| 43512D - BEARING (FOR FRONT AXLE HUB LH) | ||||
| 43560-BZ050 |
S403,413 |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-87703 |
S413 |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-87703 |
S413 |
1 | ||
| Common parts | ||||
| 90041-70265 | ||||
| 90042-08019 | ||||
| 90042-52032 | ||||
| Linked diagrams | ||||
| 4705 | ||||
| 4802 | ||||
