S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )S413

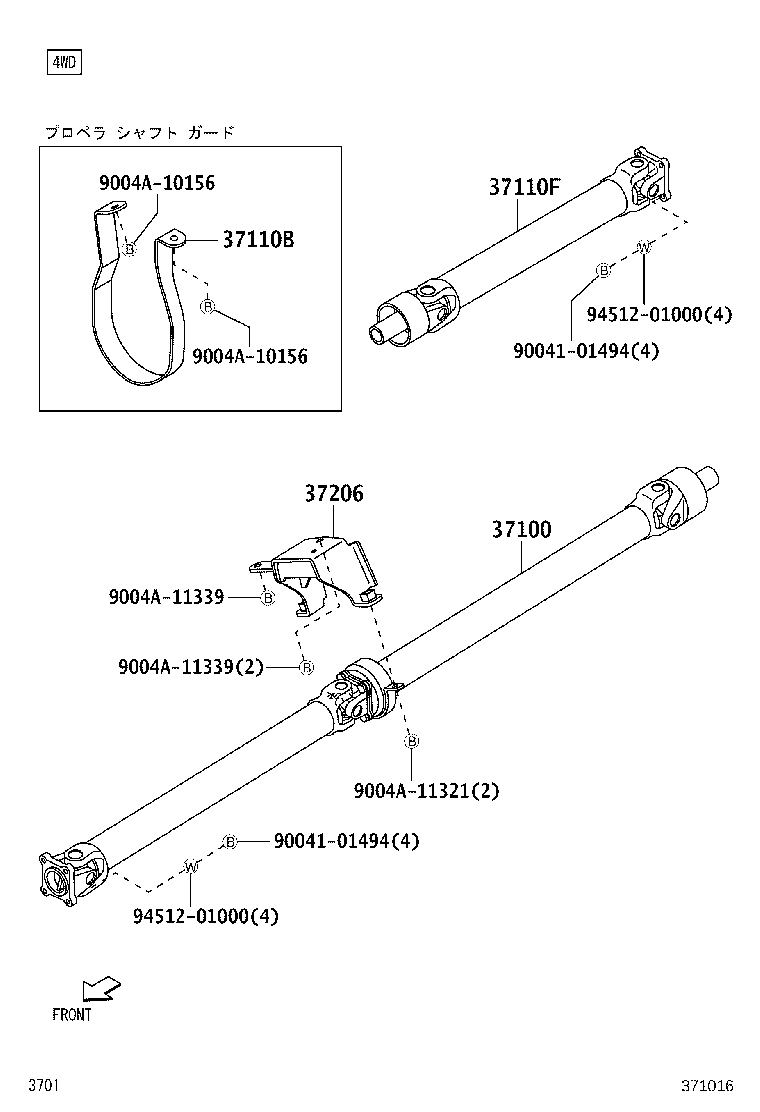

Click highlighted areas on diagram

4WD

diagram 37100 37110B 37110F 37206 9004101494 9004101494 9004A10156 9004A10156 9004A11321 9004A11339 9004A11339 9451201000 9451201000
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-B5070

S413

 1
37110B - GUARD, PROPELLER SHAFT
51569-BZ050

S403,413

 1
37110F - SHAFT ASSY, PROPELLER, REAR
37110-BZ050

S413

 1
37206 - BRACKET SUB-ASSY, CENTER SUPPORT BEARING
37231-BZ100

S413

 1
Common parts
90041-01494
9004A-10156
9004A-11321
9004A-11339
94512-01000
