S413M-ZMDFJD (2020)
Toyota Lite/Townace
Production
Jul 2020
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0801-2104)5F
Click highlighted areas on diagram
MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 33548-BZ080 |
S403,413..5F |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-BZ010C1 |
S403,413..5F BLACK,TRIM1# |
1 | ||
| 33521Q - HOUSING, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33521-BZ010 |
S403,413..5F |
1 | ||
| 33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33055-BZ070 |
S403,413..5F |
1 | ||
| 33055-BZ071 |
S403,413..5F |
1 | ||
| 33530C - BUSH (FOR SHIFT LEVER) | ||||
| 33548-BZ090 |
S403,413..5F |
2 | ||
| 33530C - BUSH (FOR SHIFT LEVER) | ||||
| 33548-BZ090 |
S403,413..5F |
2 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-BZ010 |
S403,413..5F |
4 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-BZ010 |
S403,413..5F |
4 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-BZ530 |
S403,413..5F |
1 | ||
| 33550-BZ531 |
S403,413..5F |
1 | ||
| 33752F - SUPPORT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 33752-BZ020 |
S403,413..5F |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-BZ400 |
S403,413..5F |
1 | ||
| 33820-BZ401 |
S403,413..5F |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-BZ040 |
S403,413..5F |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33823-BZ080 |
S403,413..5F |
1 | ||
| Common parts | ||||
| 84138-BZ010 | ||||
| 88893-BZ030 | ||||
| 88893-BZ040 | ||||
| 90041-83067 | ||||
| 90044-68076 | ||||
| 90044-68367 | ||||
| 9004A-11240 | ||||
| 9004A-11283 | ||||
| 9004A-11318 | ||||
| 9004A-20016 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 5551 | ||||
(2104- )5F

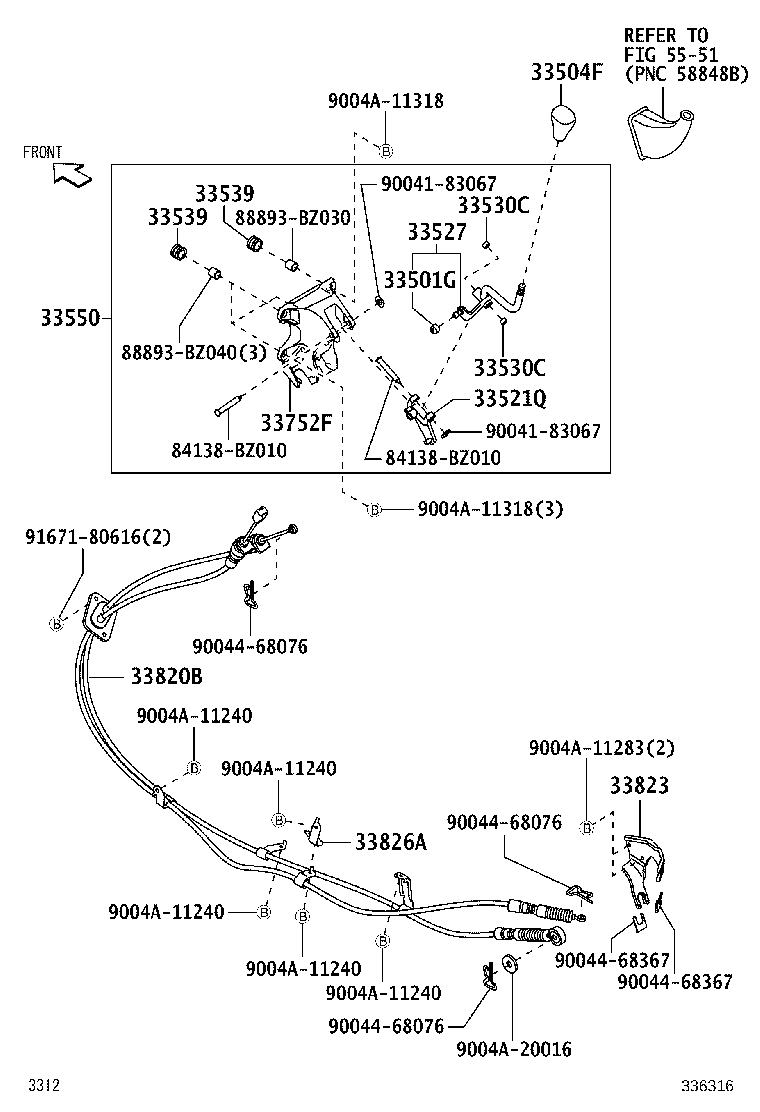

Click highlighted areas on diagram
MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33504-BZ010C1 |
S403,413..5F BLACK,TRIM1# |
1 | ||
| 33521Q - HOUSING, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33521-BZ010 |
S403,413..5F |
1 | ||
| 33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT) | ||||
| 33055-BZ070 |
S403,413..5F |
1 | ||
| 33055-BZ071 |
S403,413..5F |
1 | ||
| 33530C - BUSH (FOR SHIFT LEVER) | ||||
| 33548-BZ090 |
S403,413..5F |
2 | ||
| 33530C - BUSH (FOR SHIFT LEVER) | ||||
| 33548-BZ090 |
S403,413..5F |
2 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-BZ010 |
S403,413..5F |
4 | ||
| 33539 - CUSHION, SHIFT LEVER ANTI-RATTLE | ||||
| 33539-BZ010 |
S403,413..5F |
4 | ||
| 33550 - FLOOR SHIFT ASSY, TRANSMISSION | ||||
| 33550-BZ530 |
S403,413..5F |
1 | ||
| 33550-BZ531 |
S403,413..5F |
1 | ||
| 33752F - SUPPORT, CONTROL LINK (FOR FLOOR SHIFT) | ||||
| 33752-BZ020 |
S403,413..5F |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-BZ400 |
S403,413..5F |
1 | ||
| 33820-BZ401 |
S403,413..5F |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-BZ040 |
S403,413..5F |
1 | ||
| 33826A - BRACKET, TRANSMISSION CONTROL CABLE, NO.2 | ||||
| 33823-BZ080 |
S403,413..5F |
1 | ||
| 33837 - CLIP, TRANSMISSION CONTROL CABLE ADJUST | ||||
| 33837-B6020 |
S403,413..5F |
1 | ||
| Common parts | ||||
| 84138-BZ010 | ||||
| 88893-BZ030 | ||||
| 88893-BZ040 | ||||
| 90041-83067 | ||||
| 90044-68076 | ||||
| 90044-68367 | ||||
| 9004A-11240 | ||||
| 9004A-11283 | ||||
| 9004A-11318 | ||||
| 9004A-20016 | ||||
| 90105-T0120 | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 5551 | ||||
