S413M-ZMDFJD (2020)
Toyota Lite/Townace
Production
Jul 2020
-
Sep 9999
Engine
2NRVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(2007- )S413..5F

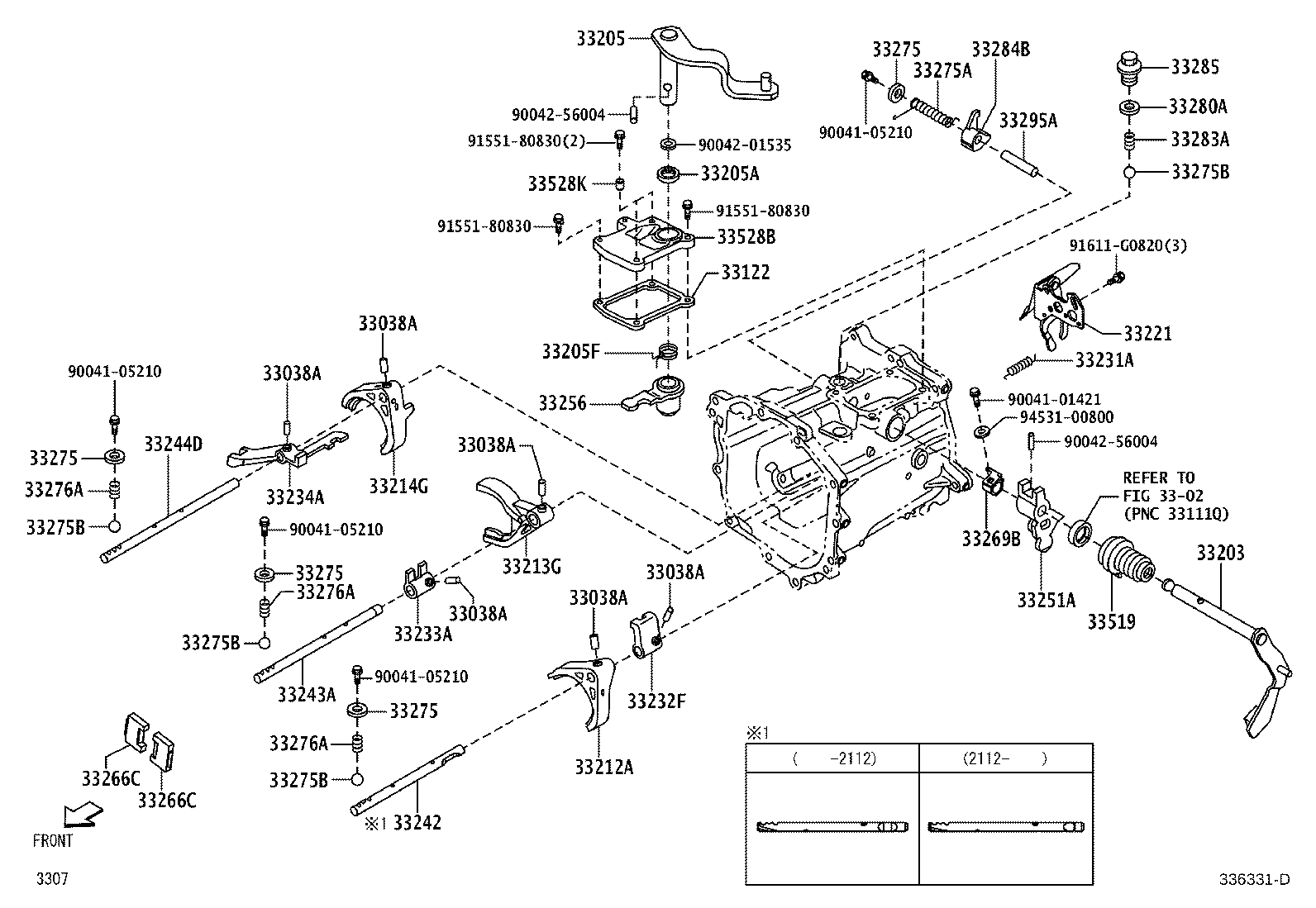

Click highlighted areas on diagram
4WD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33038A - PIN, SLOTTED SPRING | ||||
| 90042-54078 |
S413..5F |
6 | ||
| 33038A - PIN, SLOTTED SPRING | ||||
| 90042-54078 |
S413..5F |
6 | ||
| 33038A - PIN, SLOTTED SPRING | ||||
| 90042-54078 |
S413..5F |
6 | ||
| 33038A - PIN, SLOTTED SPRING | ||||
| 90042-54078 |
S413..5F |
6 | ||
| 33038A - PIN, SLOTTED SPRING | ||||
| 90042-54078 |
S413..5F |
6 | ||
| 33038A - PIN, SLOTTED SPRING | ||||
| 90042-54078 |
S413..5F |
6 | ||
| 33122 - GASKET, MANUAL TRANSMISSION CASE COVER | ||||
| 33122-B5010 |
S403,413..5F |
1 | ||
| 33203 - SHAFT SUB-ASSY, SHIFT LEVER, NO.1 | ||||
| 33203-B5060 |
S413..5F |
1 | ||
| 33205 - SHAFT SUB-ASSY, SELECT LEVER | ||||
| 33205-B5040 |
S413..5F |
1 | ||
| 33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT) | ||||
| 90043-13008 |
S413..5F |
1 | ||
| 33205F - SPRING, COMPRESSION(FOR SELECT RETURN) | ||||
| 90045-08422 |
S413..5F |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-97501 |
S413..5F |
1 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-B4010 |
S413..5F |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-97501 |
S413..5F |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33201-B0010 |
S413..5F |
1 | ||
| 33231A - SPRING, REVERSE SHIFT RESTRICT | ||||
| 90045-06241 |
S413..5F |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33233-97501 |
S413..5F |
1 | ||
| 33233A - HEAD, GEAR SHIFT, NO.2 | ||||
| 33234-97501 |
S413..5F |
1 | ||
| 33234A - HEAD, GEAR SHIFT, NO.3 | ||||
| 33237-87501 |
S413..5F |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33243-97501 |
S413..5F |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33245-B4010 |
S413..5F |
1 | ||
| 33244D - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-97501 |
S413..5F |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-87509 |
S413..5F |
1 | ||
| 33256 - LEVER, SELECT INNER | ||||
| 33256-B5011 |
S413..5F |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-87506 |
S413..5F |
2 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-87506 |
S413..5F |
2 | ||
| 33269B - HEAD,LEVER SHAFT NEUTRAL DETECTION | ||||
| 33269-B5010 |
S413..5F |
1 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90044-30122 |
S413..5F 外径=17,厚さ=1.0,ｱﾙﾐ |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90044-30122 |
S413..5F 外径=17,厚さ=1.0,ｱﾙﾐ |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90044-30122 |
S413..5F 外径=17,厚さ=1.0,ｱﾙﾐ |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90044-30122 |
S413..5F 外径=17,厚さ=1.0,ｱﾙﾐ |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90045-08423 |
S413..5F |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90043-60003 |
S413..5F |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90043-60003 |
S413..5F |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90043-60003 |
S413..5F |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90043-60003 |
S413..5F |
4 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90045-01674 |
S413..5F |
3 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90045-01674 |
S413..5F |
3 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90045-01674 |
S413..5F |
3 | ||
| 33280A - GASKET, REVERSE RESTRICT PIN | ||||
| 90044-30295 |
S413..5F |
1 | ||
| 33283A - SPRING, COMPRESSION (FOR REVERSE RESTRICT PIN) | ||||
| 90045-01669 |
S413..5F |
1 | ||
| 33284B - PIN, REVERSE RESTRICT, NO.2 | ||||
| 33284-B5010 |
S413..5F |
1 | ||
| 33285 - HOLDER, REVERSE RESTRICT PIN | ||||
| 33285-87501 |
S413..5F |
1 | ||
| 33295A - SHAFT, REVERSE RESTRICT | ||||
| 33283-B5010 |
S413..5F |
1 | ||
| 33519 - BOOT, CONTROL SHAFT DUST | ||||
| 33519-B4010 |
S413..5F |
1 | ||
| 33528B - COVER, CONTROL SHAFT | ||||
| 33528-B5010 |
S413..5F |
1 | ||
| 33528-B5011 |
S403,413..5F |
1 | ||
| 33528K - PIN, RING (FOR CONTROL SHAFT COVER SET BOLT) | ||||
| 90042-53022 |
S413..5F |
2 | ||
| Common parts | ||||
| 90041-01421 | ||||
| 90041-05210 | ||||
| 90042-01535 | ||||
| 90042-56004 | ||||
| 91551-80830 | ||||
| 91611-G0820 | ||||
| 94531-00800 | ||||
| Linked diagrams | ||||
| 3302 | ||||
