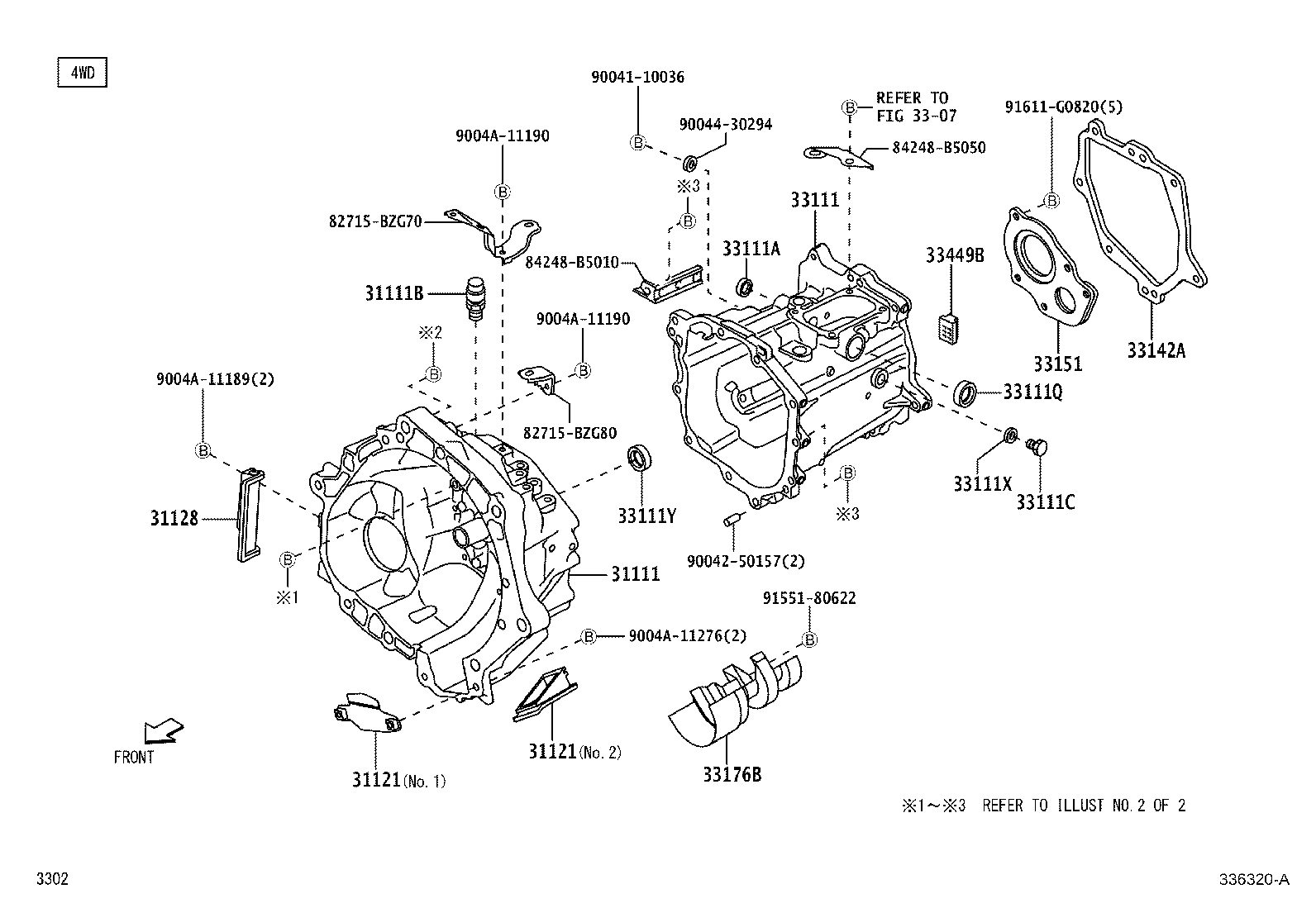

Toyota Lite/townace S413M CLUTCH HOUSING & TRANSMISSION CASE (MTM)

Part #	Description	Period	Qty
31111 - HOUSING, CLUTCH
31111-BZ031	S403,413..5F	07/2020 - 12/2999	1
31111B - PLUG(FOR CLUTCH HOUSING)
90049-15026	S413..5F	07/2020 - 12/2999	1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-BZ050	S403,413..5F NO.2	07/2020 - 12/2999	1
31121-BZ060	S403,413..5F NO.1	07/2020 - 12/2999	1
31121 - COVER, CLUTCH HOUSING, NO.1
31121-BZ050	S403,413..5F NO.2	07/2020 - 12/2999	1
31121-BZ060	S403,413..5F NO.1	07/2020 - 12/2999	1
31128 - COVER, CLUTCH HOUSING UNDER
31128-BZ070	S403,413..5F	07/2020 - 12/2999	1
33111 - CASE, MANUAL TRANSMISSION
33111-B5021	S403,413..5F	07/2020 - 12/2999	1
33111A - PLUG, MANUAL TRANSMISSION CASE
90043-31025	S413..5F	07/2020 - 12/2999	1
33111C - PLUG(FOR TRANSMISSION CASE)
90043-41085	S403,413..5F	07/2020 - 12/2999	1
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90043-11308	S413..5F	07/2020 - 12/2999	1
33111X - GASKET, TRANSMISSION CASE PLUG
90044-30186	S413..5F	07/2020 - 12/2999	1
33111Y - SEAL, OIL(FOR TRANSMISSION CASE)
90043-10051	S413..5F	07/2020 - 12/2999	1
33142A - GASKET, EXTENSION HOUSING
33142-B5010	S413..5F	07/2020 - 12/2999	1
33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33151-97502	S413..5F	07/2020 - 12/2999	1
33176B - SEPARATOR, TRANSMISSION OIL(MTM)
33176-B5010	S413..5F	07/2020 - 12/2999	1
33449B - MAGNET, TRANSMISSION
33449-87501	S413..5F	07/2020 - 12/2999	1
Common parts
82715-BZG70
82715-BZG80
84248-B5010
84248-B5050
90041-10036
90042-50157
90044-30294
9004A-11189
9004A-11190
9004A-11276
91551-80622
91611-G0820

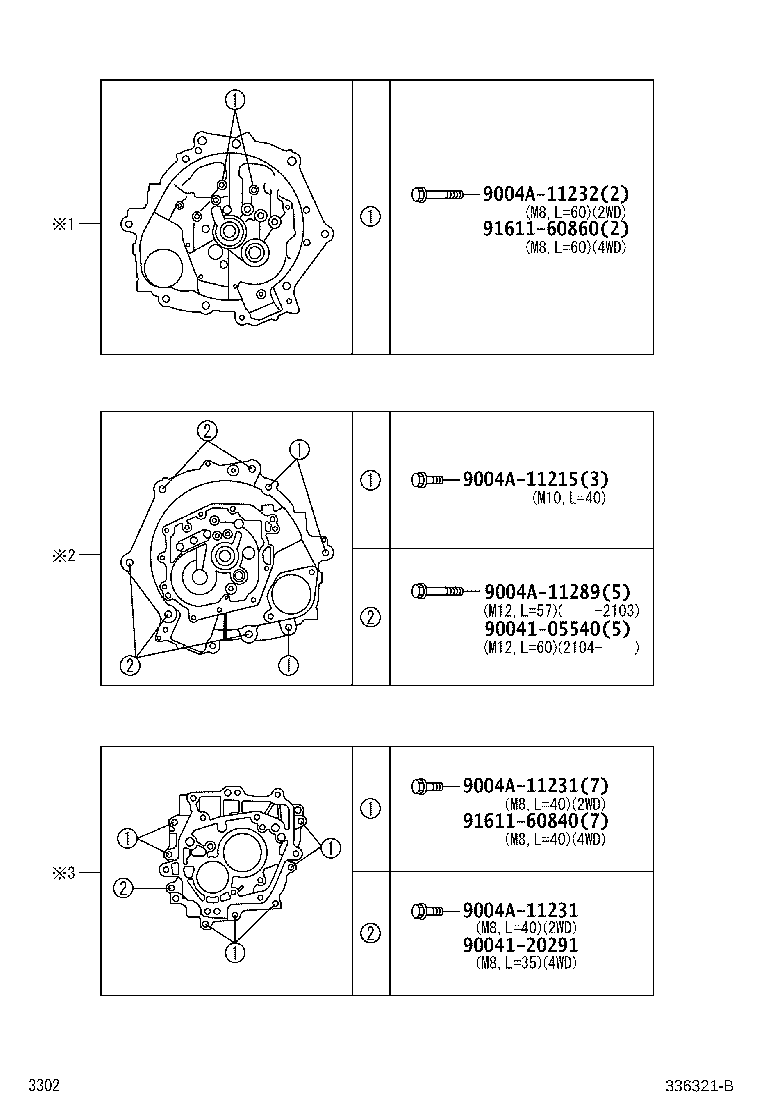

Linked diagrams
3307

S413M-ZMDFJD (2020)
