S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

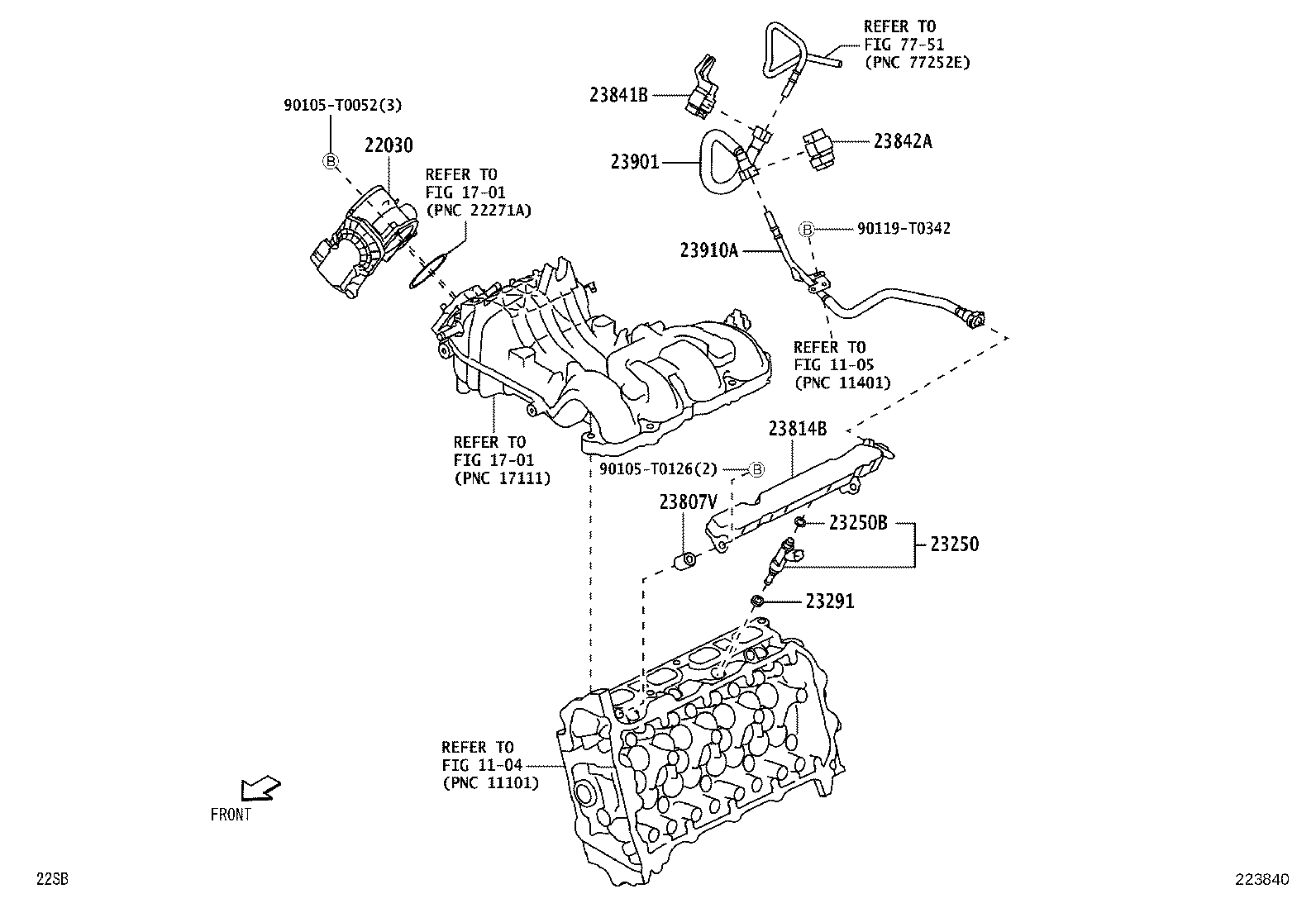

Click highlighted areas on diagram

diagram 1104 1105 1701 1701 22030 23250 23250B 23291 23807V 23814B 23841B 23842A 23901 23910A 7751 90105T0052 90105T0126 90119T0342
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-BZ060

2NRVE..S403,413

 1
23250 - INJECTOR ASSY, FUEL
23209-BZ050

2NRVE..S403,413

 4
23250B - RING, O(FOR FUEL INJECTOR)
90301-07037

2NRVE..S403,413

 4
23291 - INSULATOR, INJECTOR VIBRATION
23291-0Y020

2NRVE..S403,413

 4
23807V - SPACER, NO.1(FOR DELIVERY PIPE)
23891-47040

2NRVE..S403,413

 2
23814B - PIPE, FUEL DELIVERY
23814-BZ080

2NRVE..S403,413

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-BZ020

2NRVE..S403,413

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-BZ010

2NRVE..S403,413

 1
23901 - TUBE SUB-ASSY, FUEL
23901-BZ130

2NRVE..S403,413

 1
23910A - TUBE SUB-ASSY, FUEL
23901-BZ120

2NRVE..S403,413

 1
Common parts
90105-T0052
90105-T0126
90119-T0342
Linked diagrams
1104
1105
1701
7751
