S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )2NRVE..5F

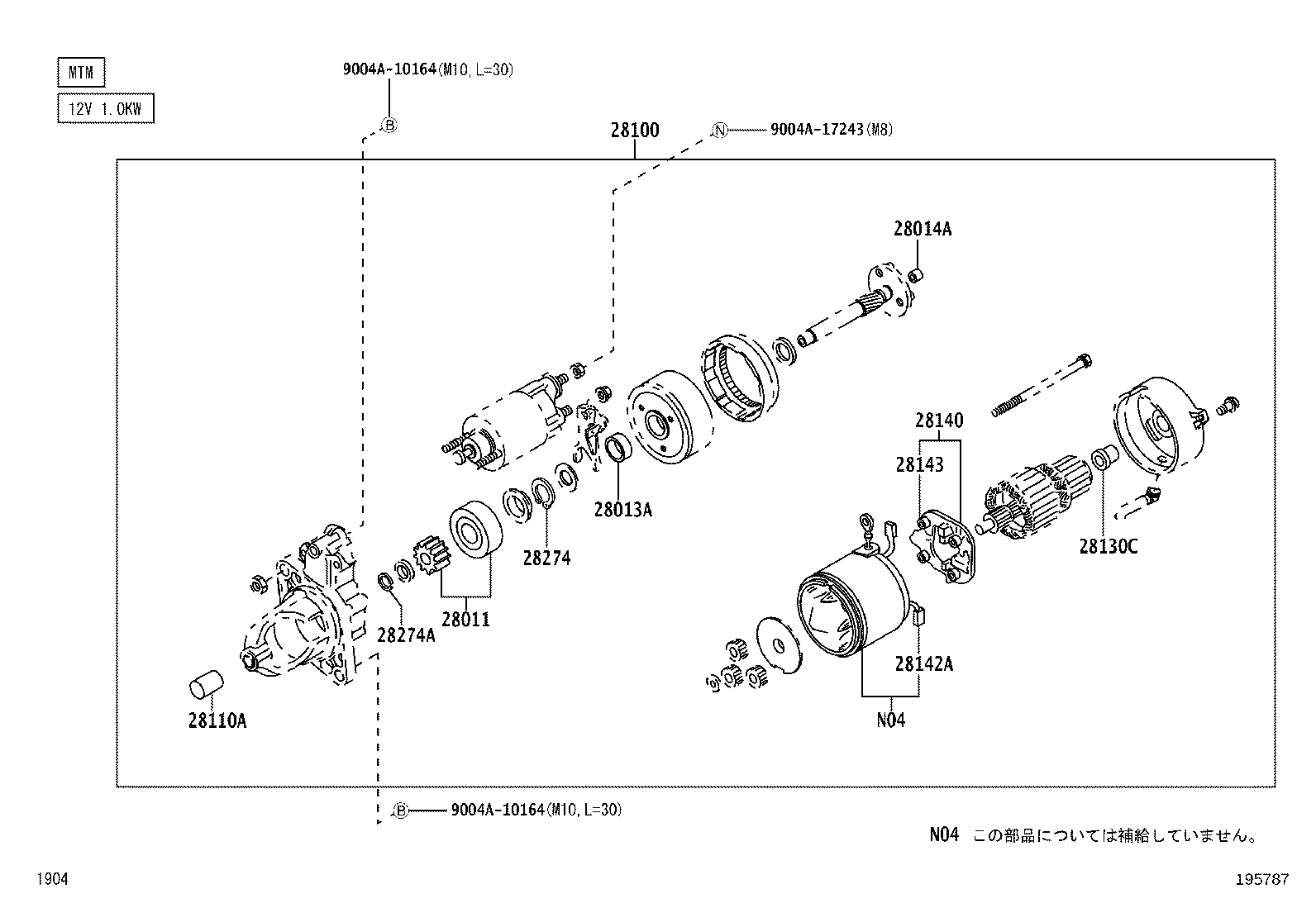

Click highlighted areas on diagram

diagram 28011 28013A 28014A 28100 28110A 28130C 28140 28142A 28143 28274 28274A 9004A10164 9004A10164 9004A17243
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-B5020

2NRVE..S403,413

 1
28013A - BEARING, STARTER CENTER & SHOCK ABSORBER, NO.2
90099-10181

2NRVE..S403,413

 1
28014A - BUSH OR BEARING, PLANET CARRIER SHAFT
90099-10180

2NRVE..S403,413

 1
28100 - STARTER ASSY
28100-B5100

2NRVE..S403,413..5F

12V 1.0KW

 1
28110A - BEARING(FOR STARTER HOUSING)
28277-87201

2NRVE..S403,413

 1
28130C - BEARING, STARTER FLANGE
90099-10183

2NRVE..S403,413

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-97501

2NRVE..S403,413

 1
28142A - STARTER KIT
28142-97501

2NRVE..S403,413

 2
28143 - SPRING, STARTER BRUSH
28143-87202

2NRVE..S403,413

 4
28274 - SNAP RING, STARTER, NO.1
90096-90030

2NRVE..S403,413

 1
28274A - SNAP RING, STARTER, NO.2
28274-87503

2NRVE..S403,413

 1
Common parts
9004A-10164
9004A-17243
