S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

Click highlighted areas on diagram

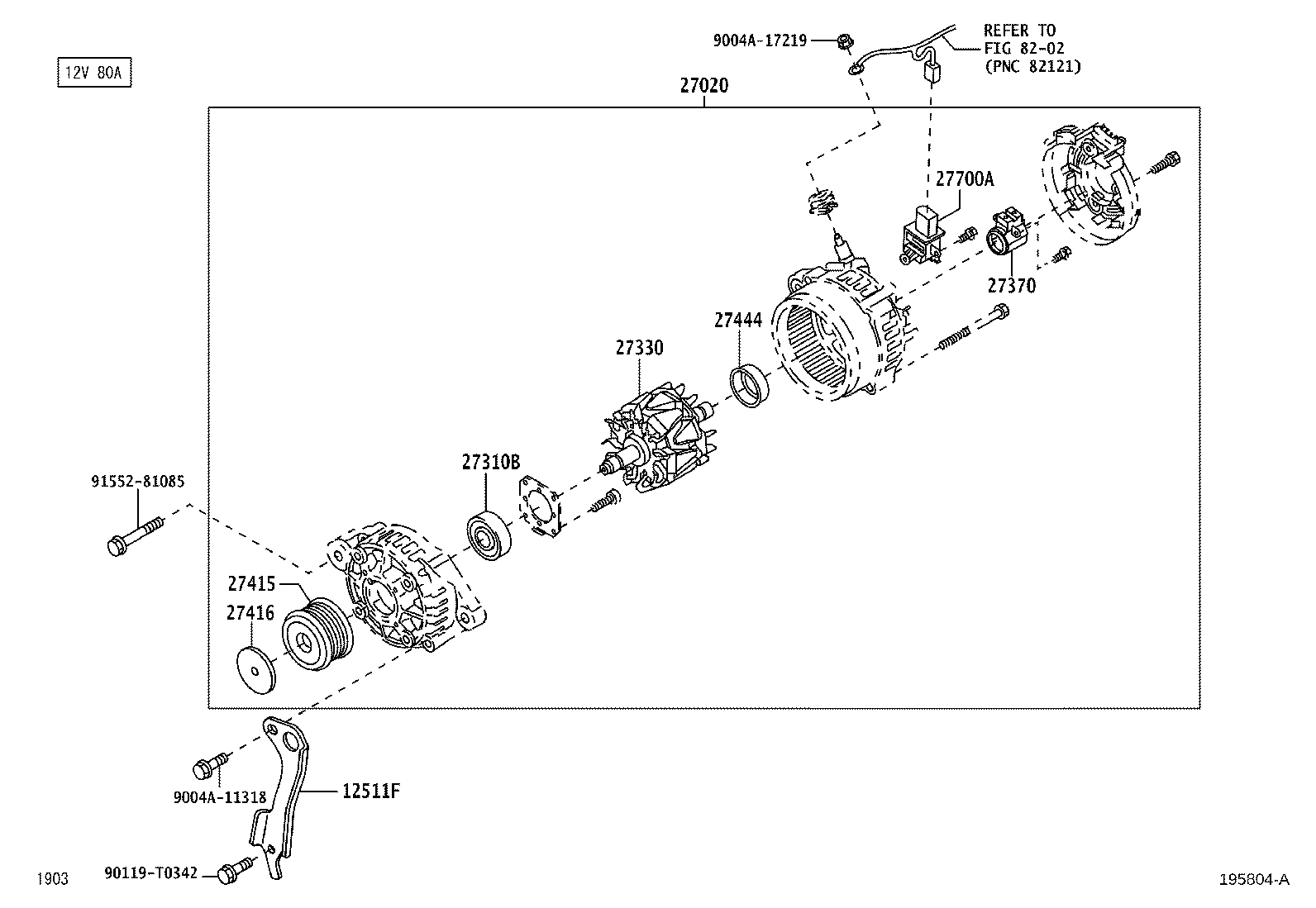

diagram 12511F 27020 27310B 27330 27370 27415 27416 27444 27700A 8202 9004A11318 9004A17219 90119T0342 9155281085
Part # Description Qty Price
12511F - BRACKET, ALTERNATOR, NO.1
12511-BZ020

2NRVE..S403,413

 1
27020 - ALTERNATOR ASSY
27060-BZ450

2NRVE..S403,413

12V 80A,品番ﾗﾍﾞﾙ有り

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
9004B-37016

2NRVE..S403,413

 1
9004C-37008

2NRVE..S403,413

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-BZ060

2NRVE..S403,413

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-BZ030

2NRVE..S403,413

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-B0010

2NRVE..S403,413

 1
27416 - CAP, ALTERNATOR PULLEY
27416-B0010

2NRVE..S403,413

 1
27444 - PACKING, ALTERNATOR BEARING COVER
27444-BZ010

2NRVE..S403,413

 1
27700A - REGULATOR ASSY, GENERATOR
27700-B2080

2NRVE..S403,413

 1
Common parts
9004A-11318
9004A-17219
90119-T0342
91552-81085
Linked diagrams
8202
