S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

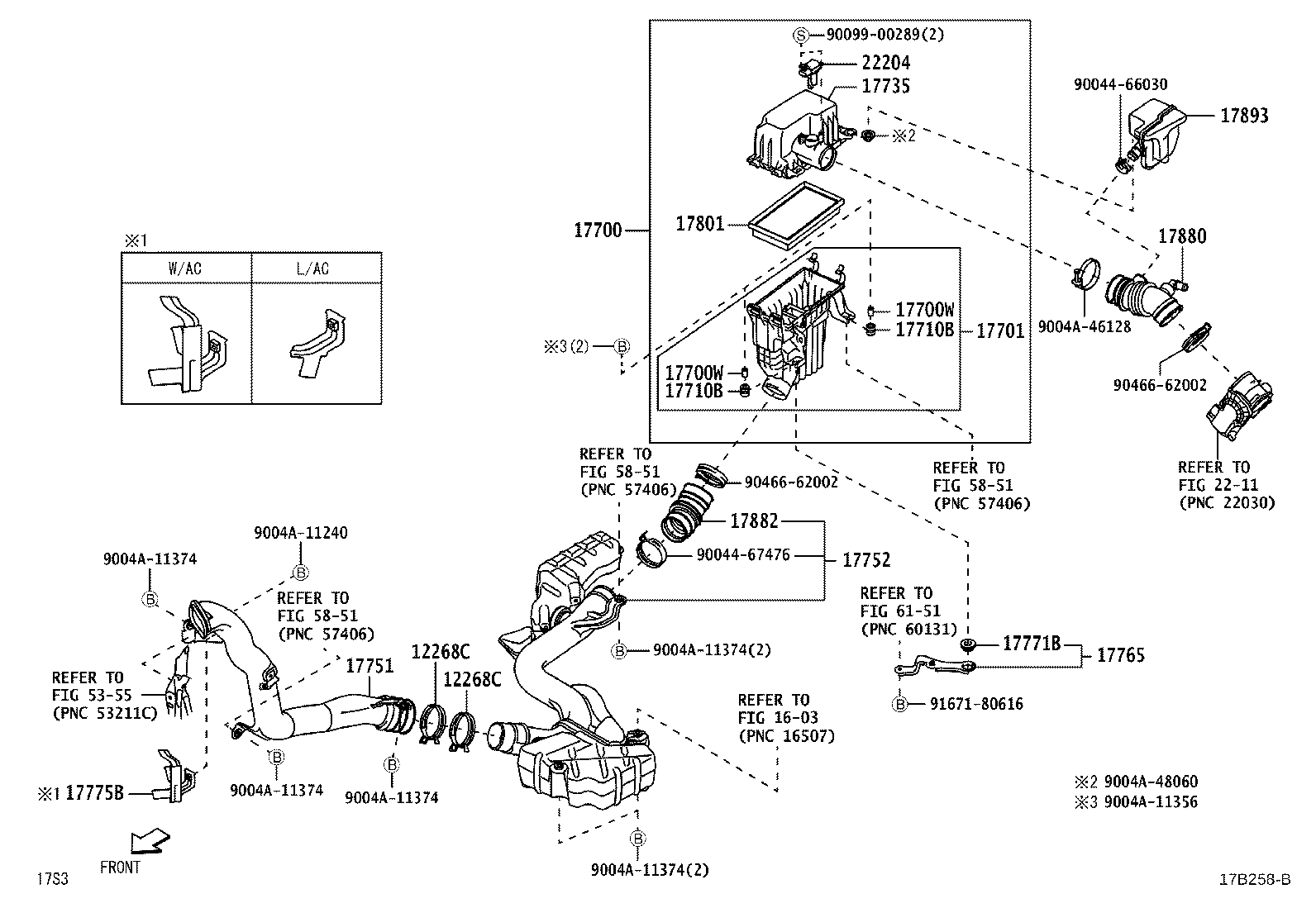

Click highlighted areas on diagram

diagram 12268C 12268C 1603 17700 17700W 17700W 17701 17710B 17710B 17735 17751 17752 17765 17771B 17775B 17801 17880 17882 17893 2211 22204 5355 5851 5851 5851 6151 9004466030 9004467476 9004A11240 9004A11356 9004A11374 9004A11374 9004A11374 9004A11374 9004A11374 9004A46128 9004A48060 9009900289 9046662002 9046662002 9167180616
Part # Description Qty Price
12268C - CLIP, HOSE
90466-71001

2NRVE..S403,413

 2
12268C - CLIP, HOSE
90466-71001

2NRVE..S403,413

 2
17700 - CLEANER ASSY, AIR
17700-BZ250

2NRVE..S403,413

 1
17700W - SPACER(FOR AIR CLEANER)
90045-60213

2NRVE..S403,413

 2
17700W - SPACER(FOR AIR CLEANER)
90045-60213

2NRVE..S403,413

 2
17701 - CASE SUB-ASSY, AIR CLEANER
17701-BZ180

2NRVE..S403,413

 1
17710B - GROMMET
90044-80421

2NRVE..S403,413

 2
17710B - GROMMET
90044-80421

2NRVE..S403,413

 2
17735 - CAP, AIR CLEANER
17735-BZ250

2NRVE..S403,413

 1
17751 - INLET, AIR CLEANER, NO.1
17751-BZ050

2NRVE..S403,413

 1
17752 - INLET, AIR CLEANER, NO.2
17752-BZ070

2NRVE..S403,413

 1
17765 - STAY, AIR CLEANER, NO.1
17765-BZ070

2NRVE..S403,413

 1
17771B - GROMMET(FOR AIR CLEANER BRACKET)
90044-80598

2NRVE..S403,413

 1
17775B - GUARD, SPLASH
17775-BZ040

2NRVE..S403,413

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-BZ130

2NRVE..S403,413

 1
17880 - HOSE ASSY, AIR CLEANER
17880-BZ200

2NRVE..S403,413

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-BZ080

2NRVE..S403,413

 1
17893 - RESONATOR, INTAKE AIR
17893-BZ010

2NRVE..S403,413

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-BZ010

2NRVE..S403,413

 1
Common parts
90044-66030
90044-67476
9004A-11240
9004A-11356
9004A-11374
9004A-46128
9004A-48060
90099-00289
90466-62002
91671-80616
Linked diagrams
1603
2211
5355
5851
6151
