S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )2NRVE..VAN

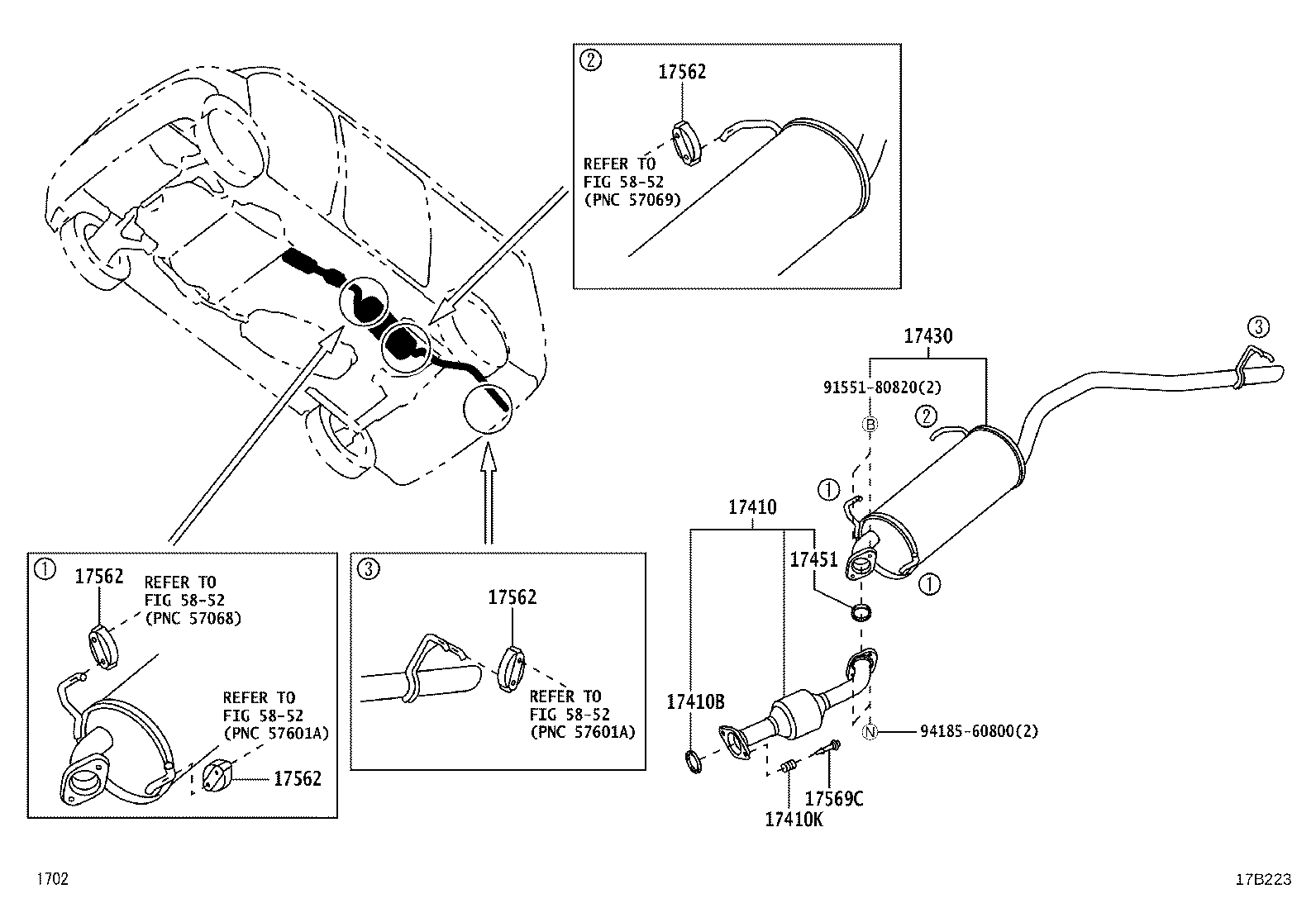

Click highlighted areas on diagram

diagram 17410 17410B 17410K 17430 17451 17562 17562 17562 17562 17569C 5852 5852 5852 5852 9155180820 9418560800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-BZ890

2NRVE..S403,413

 1
17410B - GASKET, EXHAUST PIPE
17451-B1010

2NRVE..S403,413

 1
17410K - SPRING, EXHAUST PIPE
17152-BZ010

2NRVE..S403,413

 2
17430 - PIPE ASSY, EXHAUST, TAIL
17430-BZ510

2NRVE..S403,413..VAN

 1
17451 - GASKET, EXHAUST PIPE
17451-BZ010

2NRVE..S403,413

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-87703

2NRVE..S403,413

 4
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-87703

2NRVE..S403,413

 4
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-87703

2NRVE..S403,413

 4
17562 - SUPPORT, EXHAUST PIPE, NO.2
17567-87703

2NRVE..S403,413

 4
17569C - BOLT, EXHAUST PIPE SUPPORT
9004A-10221

2NRVE..S403,413

 2
Common parts
91551-80820
94185-60800
Linked diagrams
5852
