S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

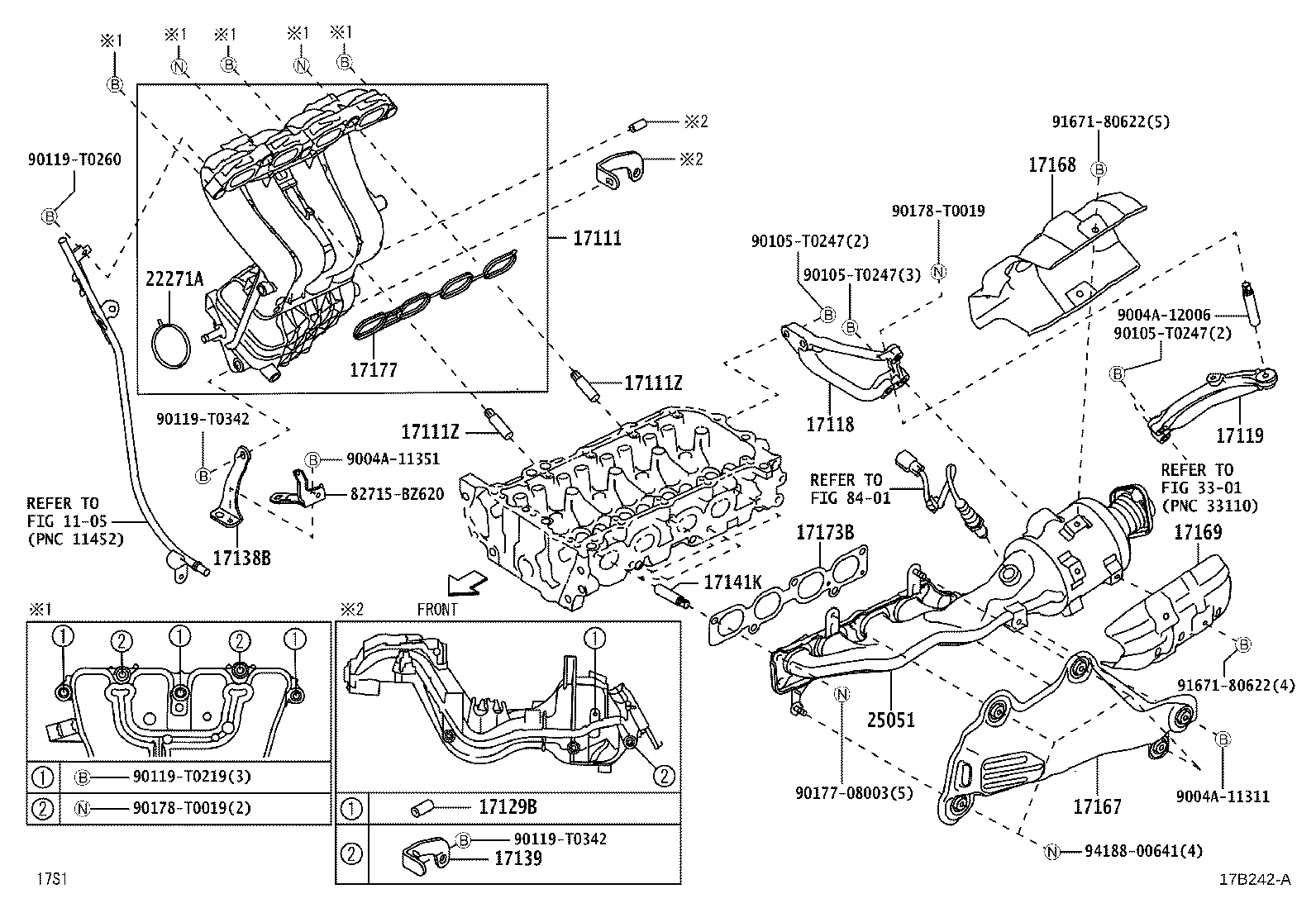

Click highlighted areas on diagram

diagram 1105 17111 17111Z 17111Z 17118 17119 17129B 17138B 17139 17141K 17167 17168 17169 17173B 17177 22271A 25051 3301 82715BZ620 8401 9004A11311 9004A11351 9004A12006 90105T0247 90105T0247 90105T0247 90119T0219 90119T0260 90119T0342 90119T0342 9017708003 90178T0019 90178T0019 9167180622 9167180622 9418800641
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-BZ110

2NRVE..S403,413

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-T0019

2NRVE..S403,413

 2
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-T0019

2NRVE..S403,413

 2
17118 - STAY, MANIFOLD
17118-BZ220

2NRVE..S403,413

 1
17119 - STAY, MANIFOLD, NO.2
17119-BZ020

2NRVE..S403,413

 1
17129B - PLUG
90043-39029

2NRVE..S403,413

 1
17138B - STAY, INTAKE MANIFOLD
17138-BZ120

2NRVE..S403,413

 1
17139 - STAY, MANIFOLD, NO.2
17139-BZ010

2NRVE..S403,413

 1
17141K - BOLT, STUD(FOR EXHAUST MANIFOLD TO CYLINDER HEAD)
90126-08063

2NRVE..S403,413

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-BZ160

2NRVE..S403,413

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-BZ050

2NRVE..S403,413

 1
17169 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3
17169-BZ010

2NRVE..S403,413

 1
17173B - GASKET, EXHAUST MANIFOLD
17173-BZ070

2NRVE..S403,413

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-0Y030

2NRVE..S403,413

 1
22271A - GASKET, THROTTLE BODY
22271-BZ040

2NRVE..S403,413

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-BZ130

2NRVE..S403,413

 1
Common parts
82715-BZ620
9004A-11311
9004A-11351
9004A-12006
90105-T0247
90119-T0219
90119-T0260
90119-T0342
90177-08003
90178-T0019
91671-80622
94188-00641
Linked diagrams
1105
3301
8401
