S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

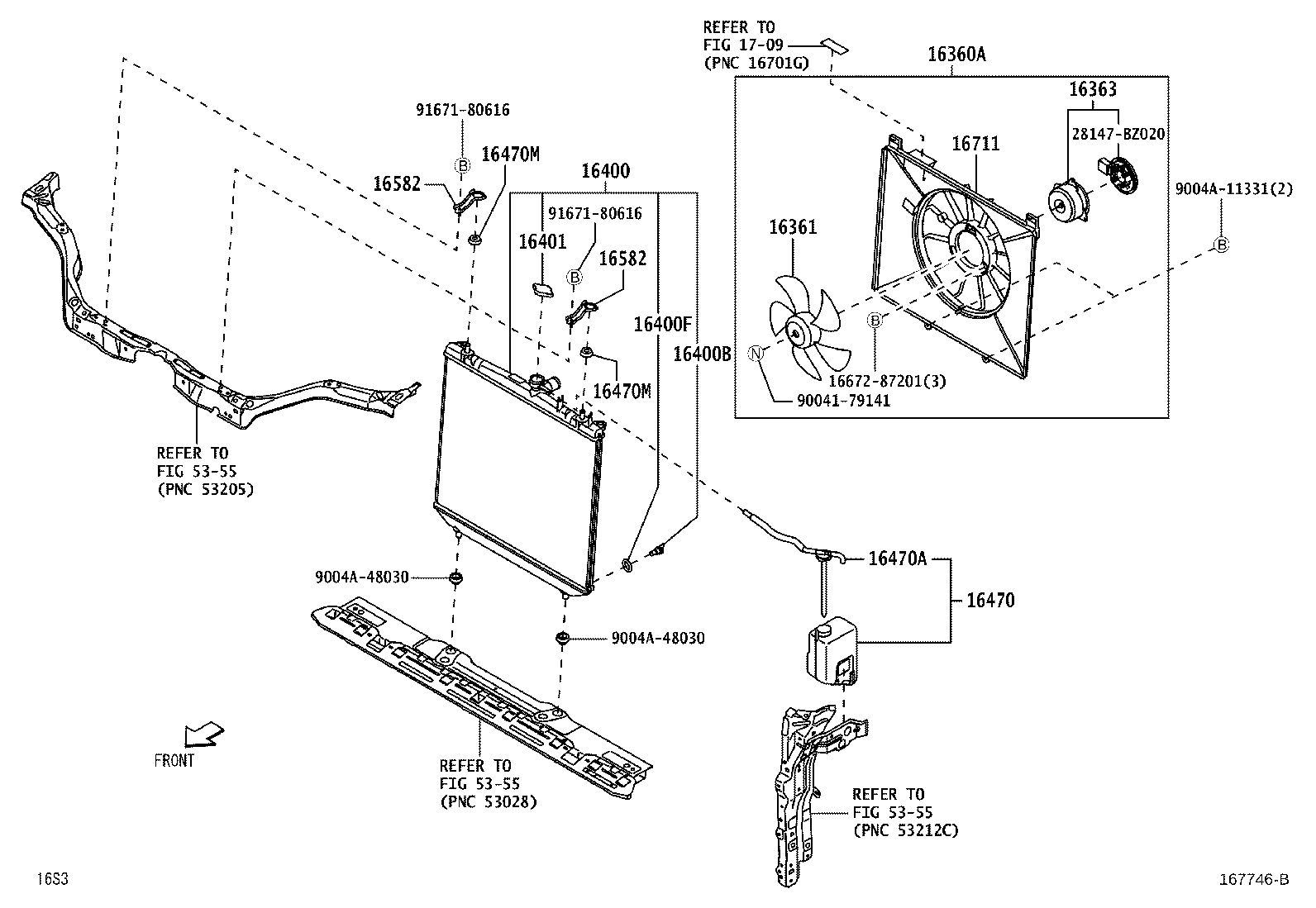

ILLUST NO. 1 OF 3(2007- )

Click highlighted areas on diagram

ﾗｼﾞｴｰﾀ

diagram 16360A 16361 16363 16400 16400B 16400F 16401 16470 16470A 16470M 16470M 16582 16582 1667287201 16711 1709 28147BZ020 5355 5355 5355 9004179141 9004A11331 9004A48030 9004A48030 9167180616 9167180616
Part # Description Qty Price
16360A - FAN ASSY, W/MOTOR
16360-BZ350

2NRVE..S403,413

 1
16361 - FAN
16361-BZ160

2NRVE..S403,413

 1
16363 - MOTOR, COOLING FAN
16363-BZ100

2NRVE..S403,413

 1
16400 - RADIATOR ASSY
16400-BZ890

2NRVE..S403,413

 1
16400B - PLUG, RADIATOR DRAIN COCK
23322-87101

2NRVE..S403,413

 1
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16442-97201

2NRVE..S403,413

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-BZ180

2NRVE..S403,413

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-BZ161

2NRVE..S403,413

 1
16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16503-BZ101

2NRVE..S403,413

 1
16470M - GROMMET
9004A-48017

2NRVE..S403,413

 2
16470M - GROMMET
9004A-48017

2NRVE..S403,413

 2
16582 - BRACKET, RADIATOR, NO.1
16582-BZ090

2NRVE..S403,413

 2
16582 - BRACKET, RADIATOR, NO.1
16582-BZ090

2NRVE..S403,413

 2
16711 - SHROUD, FAN
16711-BZ170

2NRVE..S403,413

 1
Common parts
16672-87201
28147-BZ020
90041-79141
9004A-11331
9004A-48030
91671-80616
Linked diagrams
1709
5355

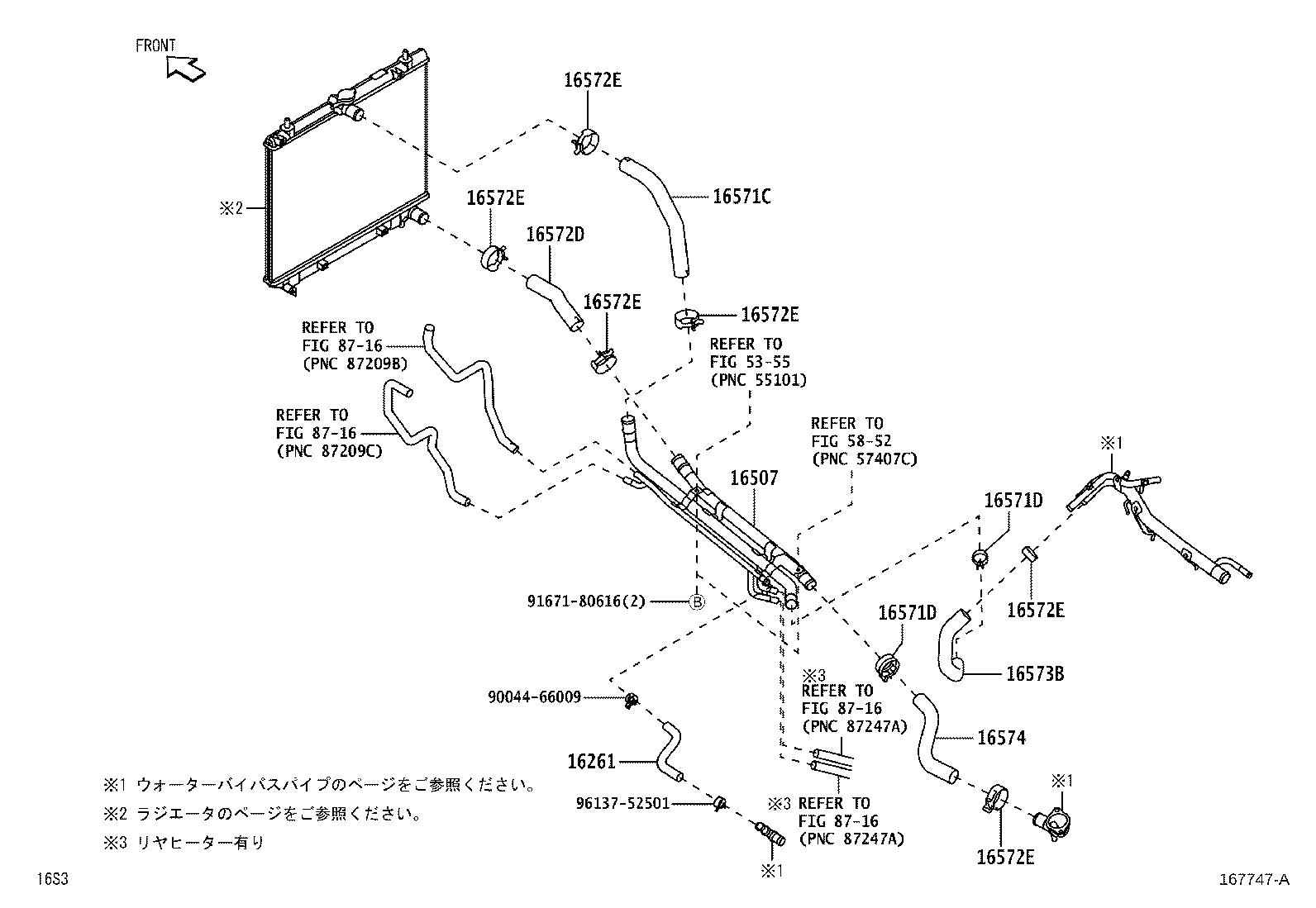

ILLUST NO. 2 OF 3(2007- )

Click highlighted areas on diagram

ﾗｼﾞｴｰﾀﾎｰｽ

diagram 16261 16507 16571C 16571D 16571D 16572D 16572E 16572E 16572E 16572E 16572E 16572E 16573B 16574 5355 5852 8716 8716 8716 8716 9004466009 9167180616 9613752501
Part # Description Qty Price
16261 - HOSE, WATER BY-PASS
16261-BZ570

2NRVE..S403,413

 1
16507 - PIPE SUB-ASSY, RADIATOR
16507-BZ270

2NRVE..S413..VAN

 1
16571C - HOSE, RADIATOR, NO.1
16571-BZ400

2NRVE..S403,413

 1
16571D - CLIP, RADIATOR HOSE, NO.1
9004A-46383

2NRVE..S403,413

 2
16571D - CLIP, RADIATOR HOSE, NO.1
9004A-46383

2NRVE..S403,413

 2
16572D - HOSE, RADIATOR, NO.2
16572-BZ340

2NRVE..S403,413

 1
16572E - CLIP, RADIATOR HOSE, NO.2
9004A-46395

2NRVE..S403,413

 6
16572E - CLIP, RADIATOR HOSE, NO.2
9004A-46395

2NRVE..S403,413

 6
16572E - CLIP, RADIATOR HOSE, NO.2
9004A-46395

2NRVE..S403,413

 6
16572E - CLIP, RADIATOR HOSE, NO.2
9004A-46395

2NRVE..S403,413

 6
16572E - CLIP, RADIATOR HOSE, NO.2
9004A-46395

2NRVE..S403,413

 6
16572E - CLIP, RADIATOR HOSE, NO.2
9004A-46395

2NRVE..S403,413

 6
16573B - HOSE, RADIATOR, NO.3
16573-BZ080

2NRVE..S403,413

 1
16574 - HOSE, RADIATOR, NO.4
16574-BZ040

2NRVE..S403,413

 1
Common parts
90044-66009
91671-80616
96137-52501
Linked diagrams
5355
5852
8716

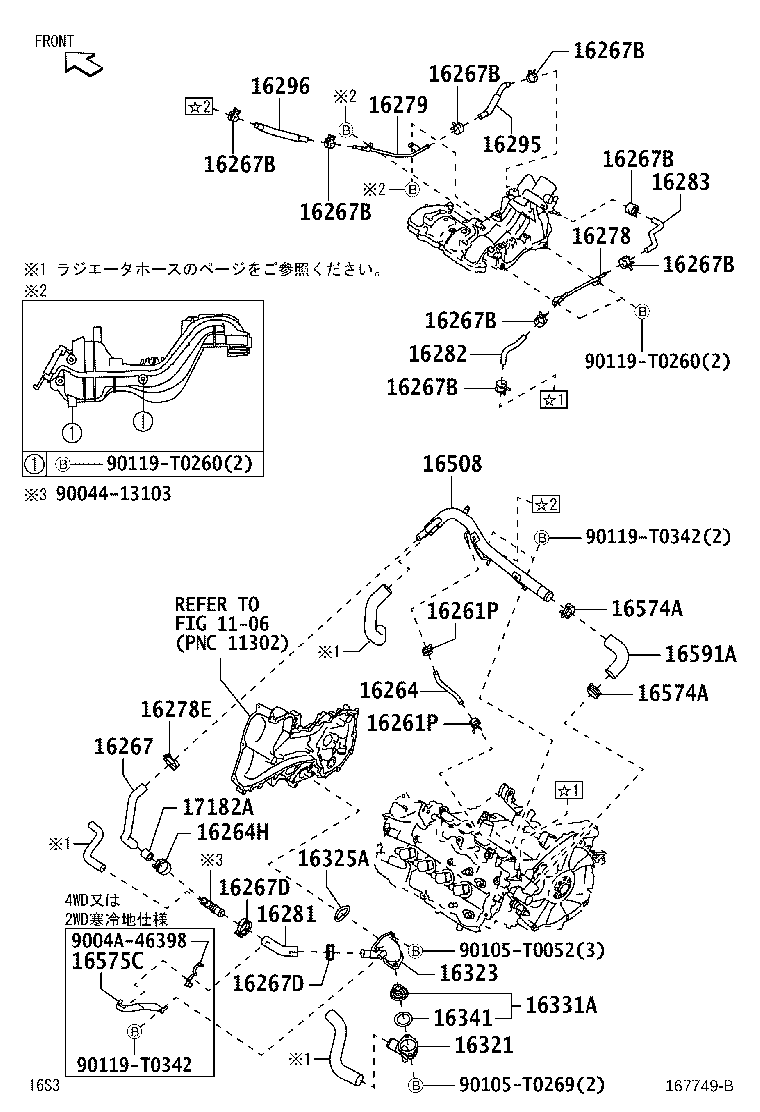

ILLUST NO. 3 OF 3(2007- )2NRVE..5F

Click highlighted areas on diagram

ｳｫｰﾀｰﾊﾞｲﾊﾟｽﾎｰｽ

diagram 1106 16261P 16261P 16264 16264H 16267 16267B 16267B 16267B 16267B 16267B 16267B 16267B 16267B 16267D 16267D 16278 16278E 16279 16281 16282 16283 16295 16296 16321 16323 16325A 16331A 16341 16508 16574A 16574A 16575C 16591A 17182A 9004413103 9004A46398 90105T0052 90105T0269 90119T0260 90119T0260 90119T0342 90119T0342
Part # Description Qty Price
16261P - CLIP(FOR WATER BY-PASS HOSE NO.2)
9004A-46345

2NRVE..S403,413

 2
16261P - CLIP(FOR WATER BY-PASS HOSE NO.2)
9004A-46345

2NRVE..S403,413

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-BZ150

2NRVE..S403,413

 1
16264H - CLIP(FOR WATER BY-PASS HOSE NO.3)
9004A-46348

2NRVE..S403,413

 1
16267 - HOSE, WATER BY-PASS, NO.3
16267-BZ220

2NRVE..S403,413..5F

 1
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-T0015

2NRVE..S403,413

 8
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-T0015

2NRVE..S403,413

 8
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-T0015

2NRVE..S403,413

 8
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-T0015

2NRVE..S403,413

 8
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-T0015

2NRVE..S403,413

 8
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-T0015

2NRVE..S403,413

 8
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-T0015

2NRVE..S403,413

 8
16267B - CLIP(FOR WATER BY-PASS HOSE)
90466-T0015

2NRVE..S403,413

 8
16267D - CLIP(FOR WATER BY-PASS HOSE NO.4)
90044-66054

2NRVE..S403,413

 2
16267D - CLIP(FOR WATER BY-PASS HOSE NO.4)
90044-66054

2NRVE..S403,413

 2
16278 - PIPE, WATER BY-PASS, NO.2
16278-BZ110

2NRVE..S403,413

 1
16278E - CLIP(FOR WATER BY-PASS HOSE)
90466-T0020

2NRVE..S403,413

 1
16279 - PIPE, WATER BY-PASS, NO.3
16279-BZ080

2NRVE..S403,413

 1
16281 - HOSE, WATER BY-PASS, NO.4
16281-BZ070

2NRVE..S403,413

 1
16282 - HOSE, WATER BY-PASS, NO.5
16282-BZ060

2NRVE..S403,413

 1
16283 - HOSE, WATER BY-PASS, NO.6
16283-BZ060

2NRVE..S403,413

 1
16295 - HOSE, WATER BY-PASS, NO.7
16295-BZ020

2NRVE..S403,413

 1
16296 - HOSE, WATER BY-PASS, NO.8
16296-BZ040

2NRVE..S403,413..5F

 1
16321 - INLET, WATER
16321-BZ090

2NRVE..S403,413

 1
16323 - HOUSING, WATER INLET
16323-BZ010

2NRVE..S403,413

 1
16325A - GASKET, WATER INLET HOUSING
16325-BZ020

2NRVE..S403,413

 1
16331A - THERMOSTAT
16340-B0010

2NRVE..S403,413

 1
16341 - GASKET, WATER OUTLET
16341-B2020

2NRVE..S403,413

 1
16508 - PIPE SUB-ASSY, RADIATOR, NO.2
16507-BZ310

2NRVE..S403,413..5F

 1
16574A - CLIP, RADIATOR HOSE, NO.4
9004A-46346

2NRVE..S403,413

 2
16574A - CLIP, RADIATOR HOSE, NO.4
9004A-46346

2NRVE..S403,413

 2
16575C - BRACKET, WATER HOSE CLAMP, NO.1
16575-BZ070

2NRVE..S413

 1
16591A - HOSE, RADIATOR(FOR RADIATOR PIPE)
16571-BZ390

2NRVE..S403,413

 1
17182A - ORIFICE, WATER
17182-BZ030

2NRVE..S403,413..5F

 1
Common parts
90044-13103
9004A-46398
90105-T0052
90105-T0269
90119-T0260
90119-T0342
Linked diagrams
1106
