S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

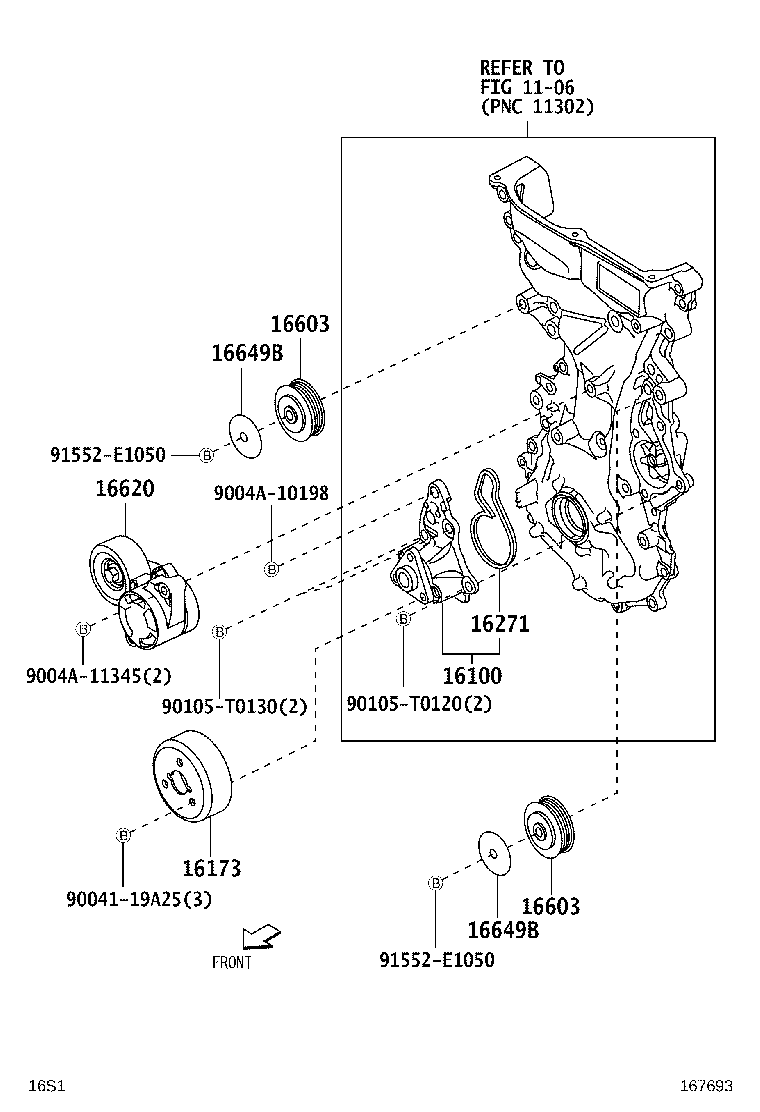

Click highlighted areas on diagram

diagram 1106 16100 16173 16271 16603 16603 16620 16649B 16649B 9004119A25 9004A10198 9004A11345 90105T0120 90105T0130 91552E1050 91552E1050
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-B9421

2NRVE..S403,413

 1
16173 - PULLEY, WATER PUMP
16173-BZ080

2NRVE..S403,413

 1
16271 - GASKET, WATER PUMP
16271-BZ060

2NRVE..S403,413

 1
16603 - PULLEY SUB-ASSY, IDLER, NO.1
16603-B0030

2NRVE..S403,413

 2
16603 - PULLEY SUB-ASSY, IDLER, NO.1
16603-B0030

2NRVE..S403,413

 2
16620 - TENSIONER ASSY, V-RIBBED BELT
16620-BZ010

2NRVE..S403,413

 1
16649B - PLATE, IDLER PULLEY COVER
16649-BZ050

2NRVE..S403,413

 2
16649B - PLATE, IDLER PULLEY COVER
16649-BZ050

2NRVE..S403,413

 2
Common parts
90041-19A25
9004A-10198
9004A-11345
90105-T0120
90105-T0130
91552-E1050
Linked diagrams
1106
