S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

Click highlighted areas on diagram

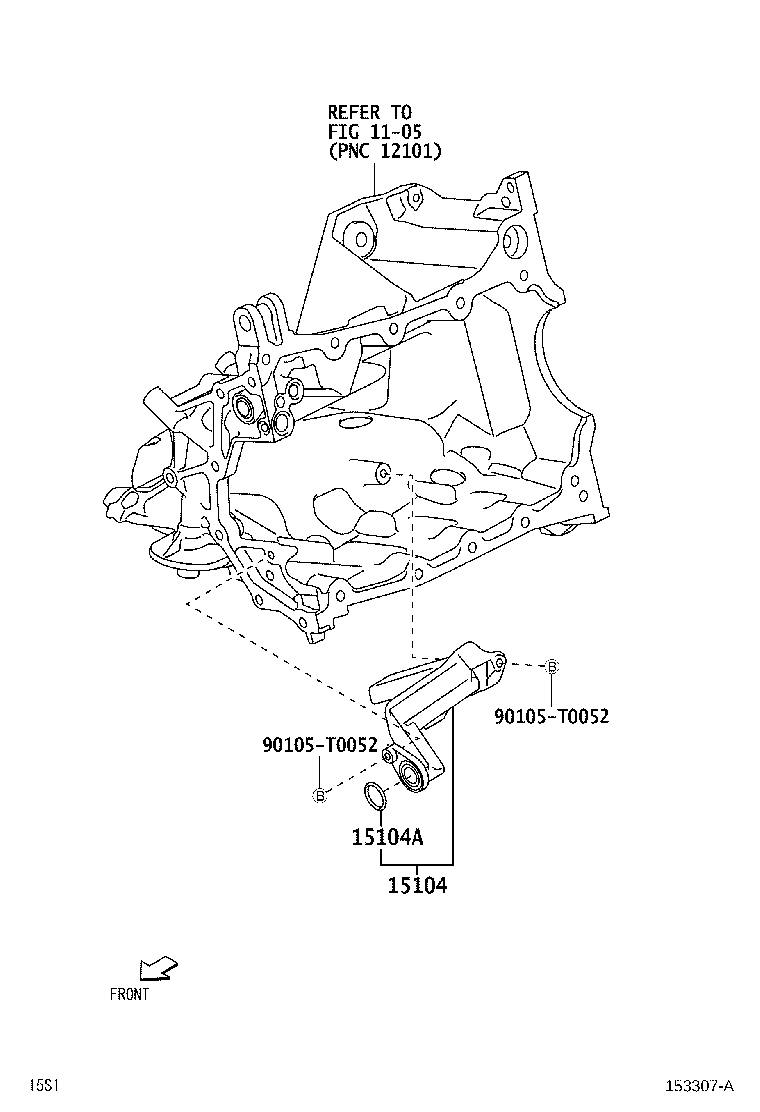

diagram 1105 15104 15104A 90105T0052 90105T0052
Part # Description Qty Price
15104 - STRAINER SUB-ASSY, OIL
15104-BZ050

2NRVE..S403,413

 1
15104A - RING, O(FOR OIL STRAINER)
9004A-30056

2NRVE..S403,413

 1
Common parts
90105-T0052
Linked diagrams
1105
