S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

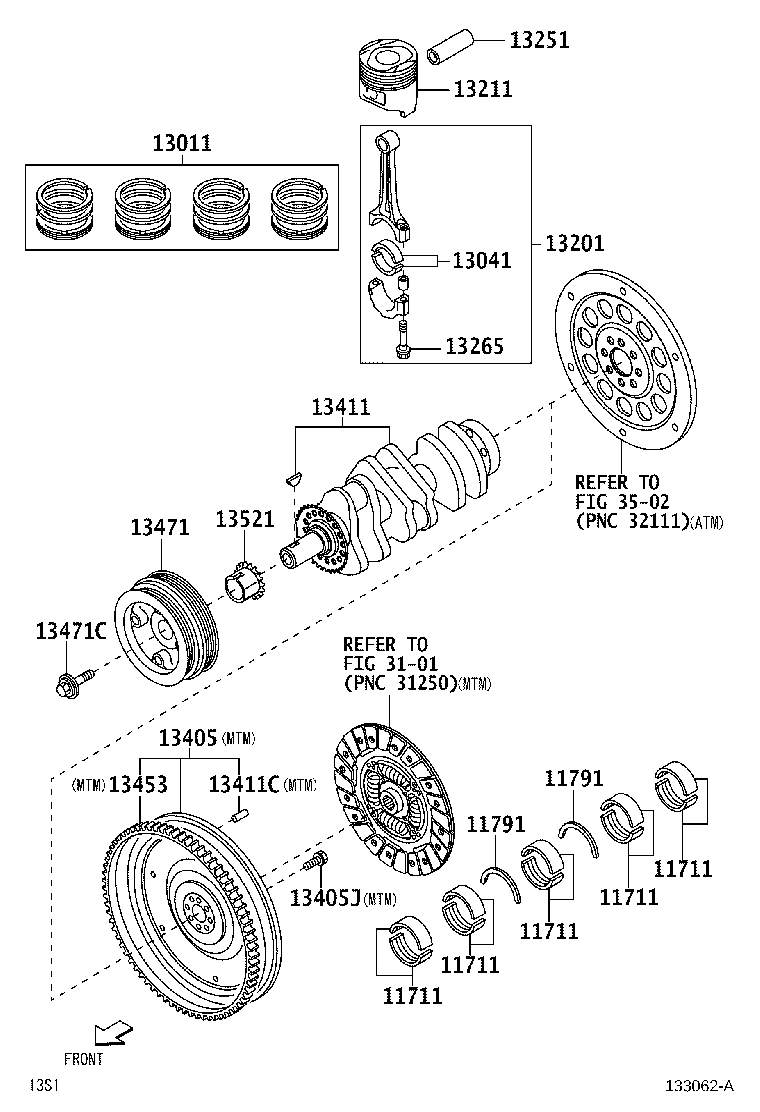

Click highlighted areas on diagram

diagram 11711 11711 11711 11711 11711 11791 11791 13011 13041 13201 13211 13251 13265 13405 13405J 13411 13411C 13453 13471 13471C 13521 3101 3502
Part # Description Qty Price
11711 - BEARING, CRANKSHAFT
11701-0Y03004

2NRVE..S403,413

MARK4

 5
11701-0Y03002

2NRVE..S403,413

MARK2

 5
11701-0Y03003

2NRVE..S403,413

MARK3

 5
11701-0Y03005

2NRVE..S403,413

MARK5

 5
11711 - BEARING, CRANKSHAFT
11701-0Y03004

2NRVE..S403,413

MARK4

 5
11701-0Y03002

2NRVE..S403,413

MARK2

 5
11701-0Y03003

2NRVE..S403,413

MARK3

 5
11701-0Y03005

2NRVE..S403,413

MARK5

 5
11711 - BEARING, CRANKSHAFT
11701-0Y03004

2NRVE..S403,413

MARK4

 5
11701-0Y03002

2NRVE..S403,413

MARK2

 5
11701-0Y03003

2NRVE..S403,413

MARK3

 5
11701-0Y03005

2NRVE..S403,413

MARK5

 5
11711 - BEARING, CRANKSHAFT
11701-0Y03004

2NRVE..S403,413

MARK4

 5
11701-0Y03002

2NRVE..S403,413

MARK2

 5
11701-0Y03003

2NRVE..S403,413

MARK3

 5
11701-0Y03005

2NRVE..S403,413

MARK5

 5
11711 - BEARING, CRANKSHAFT
11701-0Y03004

2NRVE..S403,413

MARK4

 5
11701-0Y03002

2NRVE..S403,413

MARK2

 5
11701-0Y03003

2NRVE..S403,413

MARK3

 5
11701-0Y03005

2NRVE..S403,413

MARK5

 5
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-B0010

2NRVE..S403,413

STD

 2
11791 - WASHER, CRANKSHAFT THRUST, UPPER
11791-B0010

2NRVE..S403,413

STD

 2
13011 - RING SET, PISTON
13011-0Y030

2NRVE..S403,413

STD

 1
13041 - BEARING, CONNECTING ROD
13041-0Y04002

2NRVE..S403,413

MARK2

 4
13041-0Y04003

2NRVE..S403,413

MARK3

 4
13041-0Y04001

2NRVE..S403,413

MARK1

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-B9095

2NRVE..S403,413

 4
13211 - PISTON
13211-0Y061

2NRVE..S403,413

 4
13251 - PIN, PISTON
13251-0Y030

2NRVE..S403,413

 4
13265 - BOLT, CONNECTING ROD
13265-21020

2NRVE..S403,413

 8
13405 - FLYWHEEL SUB-ASSY
13405-BZ170

2NRVE..S403,413..5F

 1
13405J - BOLT(FOR FLYWHEEL)
9004A-10200

2NRVE..S403,413..5F

M10,L=19.5

 8
13411 - CRANKSHAFT
13401-BZ100

2NRVE..S403,413

 1
13411C - PIN, STRAIGHT(FOR CRANKSHAFT)
9004A-25035

2NRVE..S403,413..5F

 3
13453 - GEAR, FLYWHEEL RING
13453-BZ110

2NRVE..S403,413..5F

 1
13471 - PULLEY, CRANKSHAFT
13470-BZ100

2NRVE..S403,413

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-T0444

2NRVE..S403,413

M14,L=45

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-0Y040

2NRVE..S403,413

 1
Linked diagrams
3101
3502
