S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

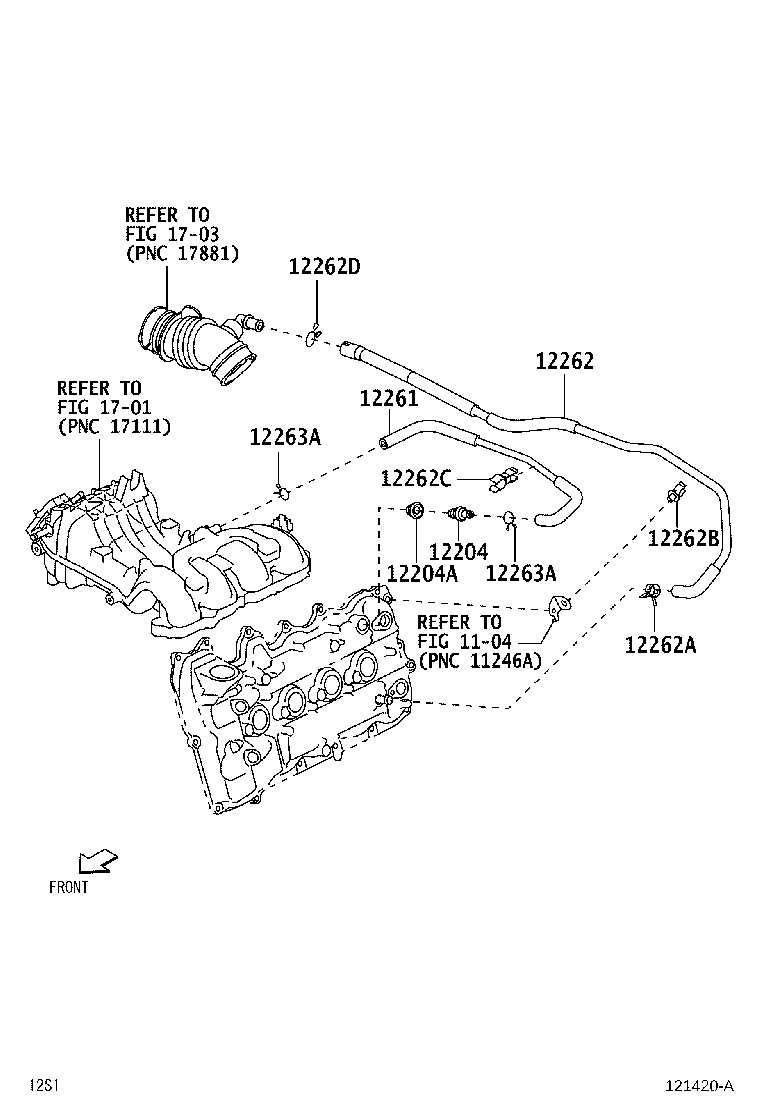

Click highlighted areas on diagram

diagram 1104 12204 12204A 12261 12262 12262A 12262B 12262C 12262D 12263A 12263A 1701 1703
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-BZ040

2NRVE..S403,413

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
9004A-48040

2NRVE..S403,413

 1
12261 - HOSE, VENTILATION
12261-BZ270

2NRVE..S403,413

 1
12262 - HOSE, VENTILATION, NO.2
12262-BZ180

2NRVE..S403,413

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90044-67240

2NRVE..S403,413

 1
12262B - CLAMP(FOR VENTILATION HOSE)
90044-60330

2NRVE..S403,413

 1
12262C - CLAMP, VENTILATION HOSE, NO.2
90044-64444

2NRVE..S403,413

 1
12262D - CLIP(FOR VENTILATION HOSE NO.2)
90466-T0063

2NRVE..S403,413

 1
12263A - CLIP(FOR VENTILATION HOSE)
90466-T0061

2NRVE..S403,413

 2
12263A - CLIP(FOR VENTILATION HOSE)
90466-T0061

2NRVE..S403,413

 2
Linked diagrams
1104
1701
1703
