S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )2NRVE..S413

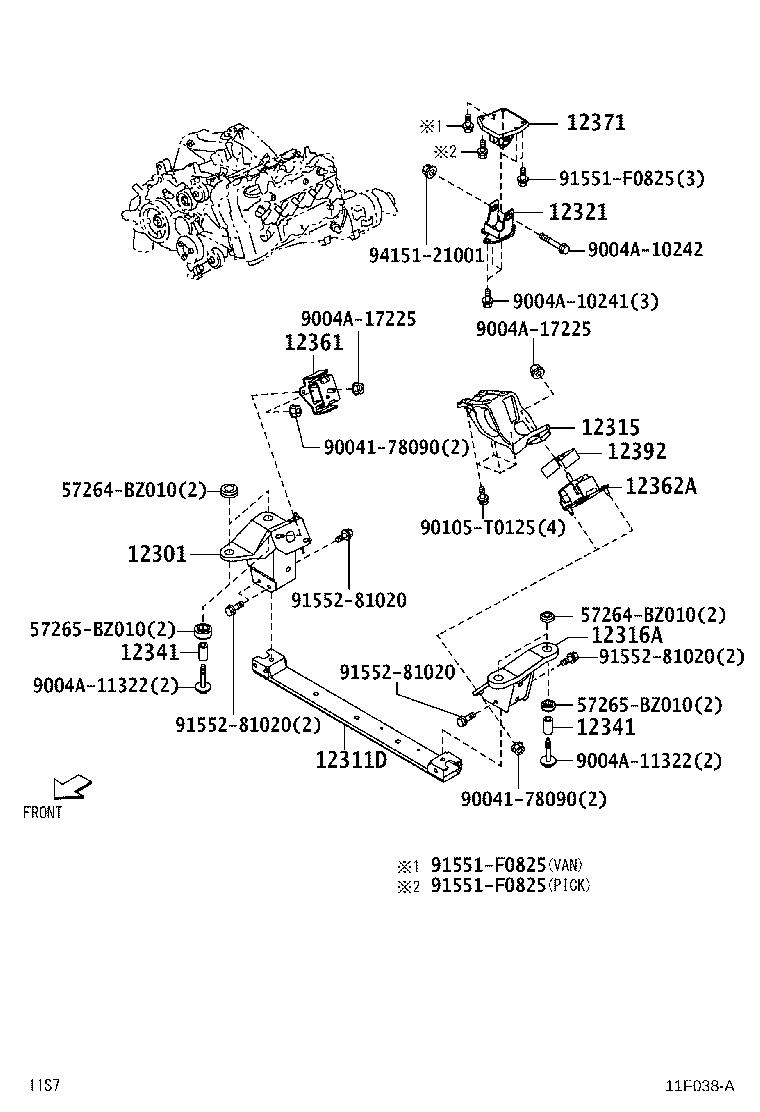

Click highlighted areas on diagram

4WD

diagram 12301 12311D 12315 12316A 12321 12341 12341 12361 12362A 12371 12392 57264BZ010 57264BZ010 57265BZ010 57265BZ010 9004178090 9004178090 9004A10241 9004A10242 9004A11322 9004A11322 9004A17225 9004A17225 90105T0125 91551F0825 91551F0825 91551F0825 9155281020 9155281020 9155281020 9155281020 9415121001
Part # Description Qty Price
12301 - BRACKET SUB-ASSY, ENGINE MOUNTING, FRONT RH
12301-BZ080

2NRVE..S403,413

 1
12311D - BRACKET, ENGINE MOUNTING
51204-BZ100

2NRVE..S403,413

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-BZ140

2NRVE..S403,413

 1
12316A - BRACKET, ENGINE MOUNTING, FR NO.2 LH
12302-BZ040

2NRVE..S403,413

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-BZ340

2NRVE..S413

 1
12341 - SPACER, ENGINE MOUNTING
12341-BZ010

2NRVE..S403,413

 4
12341 - SPACER, ENGINE MOUNTING
12341-BZ010

2NRVE..S403,413

 4
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-BZ190

2NRVE..S403,413

 1
12362A - INSULATOR, ENGINE MOUNTING, FRONT LH
12362-BZ150

2NRVE..S403,413

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-BZ150

2NRVE..S413

 1
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12392-BZ020

2NRVE..S403,413

 1
Common parts
57264-BZ010
57265-BZ010
90041-78090
9004A-10241
9004A-10242
9004A-11322
9004A-17225
90105-T0125
91551-F0825
91552-81020
94151-21001
