S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(2007- )

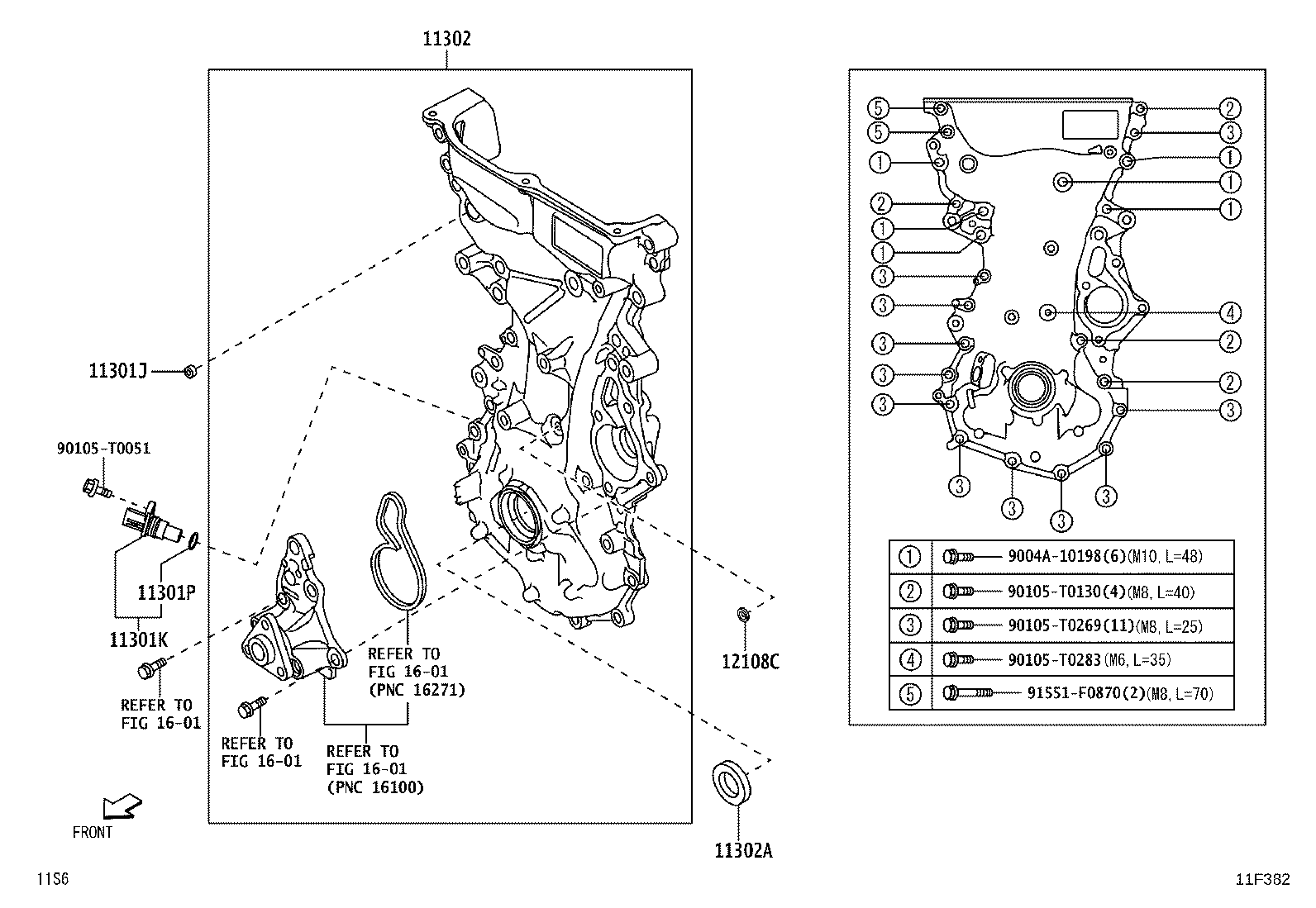

Click highlighted areas on diagram

diagram 11301J 11301K 11301P 11302 11302A 12108C 1601 1601 1601 1601 9004A10198 90105T0051 90105T0130 90105T0269 90105T0283 91551F0870
Part # Description Qty Price
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90043-44022

2NRVE..S403,413

 1
11301K - SENSOR, CRANK POSITION
9004A-19006

2NRVE..S403,413

 1
11301P - O RING, CRANK POSITION SENSOR
9004A-30059

2NRVE..S403,413

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-BZ120

2NRVE..S403,413

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-T0076

2NRVE..S403,413

 1
12108C - GASKET
16258-0Y010

2NRVE..S403,413

 1
Common parts
9004A-10198
90105-T0051
90105-T0130
90105-T0269
90105-T0283
91551-F0870
Linked diagrams
1601
