S413M-ZMDFJD (2020)

Toyota Lite/Townace

Production Jul 2020 - Sep 9999
Engine 2NRVE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

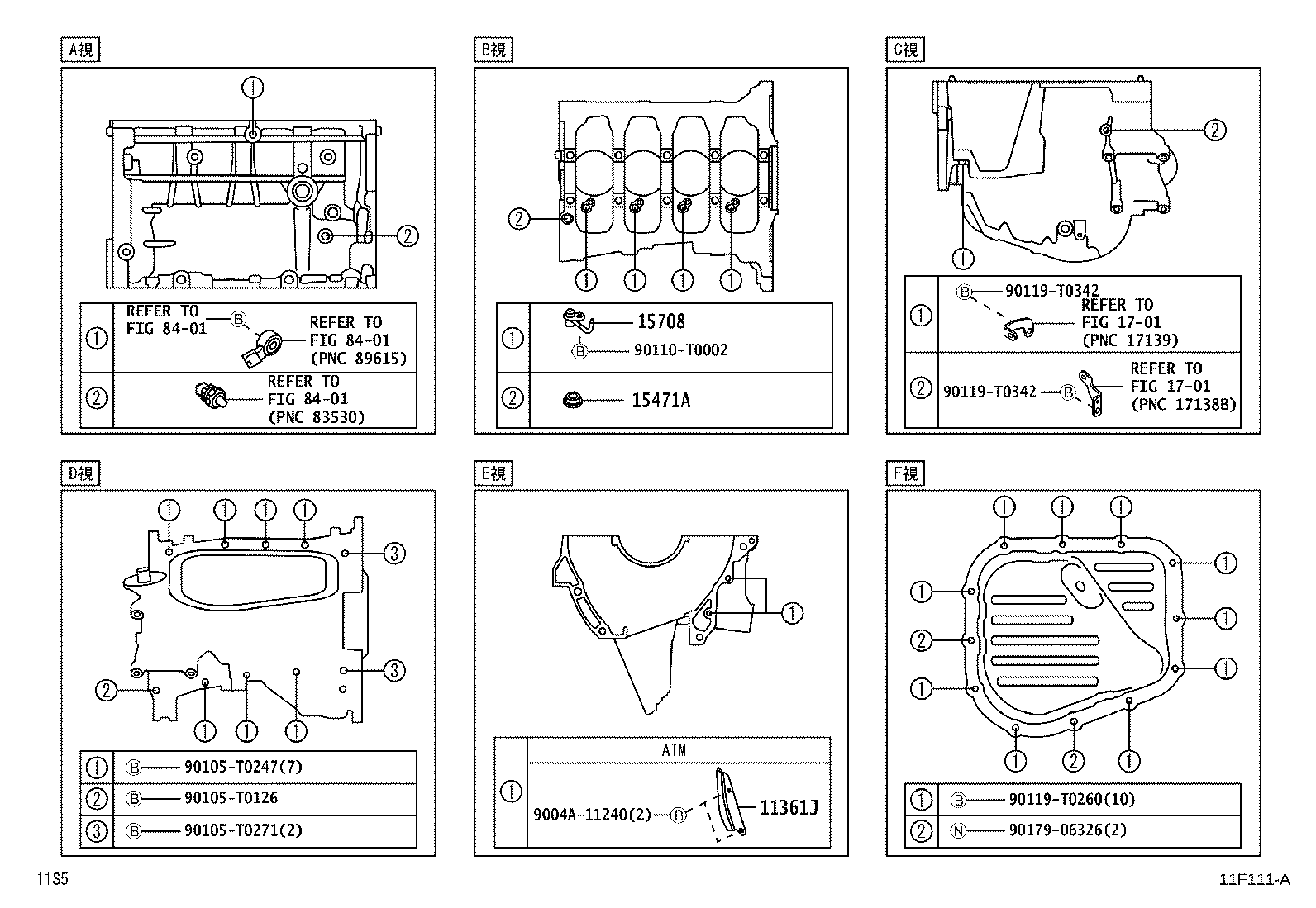

ILLUST NO. 2 OF 2(2007- )

Click highlighted areas on diagram

diagram 11361J 15471A 15708 1701 1701 8401 8401 8401 9004A11240 90105T0126 90105T0247 90105T0271 90110T0002 90119T0260 90119T0342 90119T0342 9017906326
Part # Description Qty Price
15471A - GASKET(FOR CLYINDER BLOCK)
90430-T0023

2NRVE..S403,413

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-0Y040

2NRVE..S403,413

 4
Common parts
9004A-11240
90105-T0126
90105-T0247
90105-T0271
90110-T0002
90119-T0260
90119-T0342
90179-06326
Linked diagrams
1701
8401

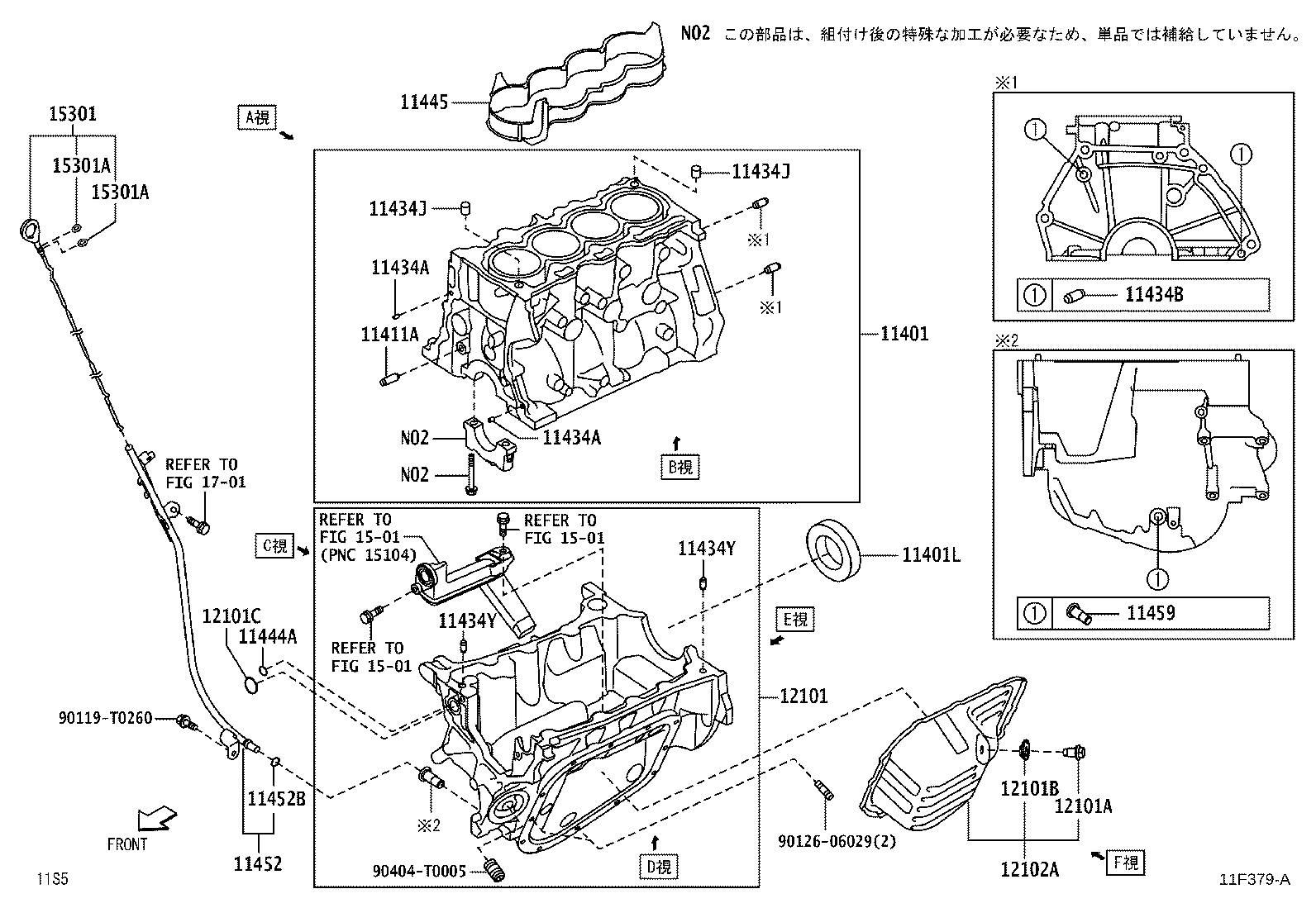

ILLUST NO. 1 OF 2(2007- )

Click highlighted areas on diagram

diagram 11401 11401L 11411A 11434A 11434A 11434B 11434J 11434J 11434Y 11434Y 11444A 11445 11452 11452B 11459 12101 12101A 12101B 12101C 12102A 1501 1501 1501 15301 15301A 15301A 1701 90119T0260 9012606029 90404T0005
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11410-B9070

2NRVE..S403,413

 1
11401L - SEAL, ENGINE REAR OIL
90311-T0074

2NRVE..S403,413

 1
11411A - PIN, RING(FOR CYLINDER BLOCK NO.1 )
90250-10030

2NRVE..S403,413

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097

2NRVE..S403,413

長さ=12,外径=4.0

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-04097

2NRVE..S403,413

長さ=12,外径=4.0

 2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

2NRVE..S403,413

長さ=22,外径=10

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

2NRVE..S403,413

 2
11434J - PIN, RING (FOR CYLINDER HEAD SET)
90253-13017

2NRVE..S403,413

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
9004A-25044

2NRVE..S403,413

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
9004A-25044

2NRVE..S403,413

 2
11444A - RING, O
9004A-30060

2NRVE..S403,413

 1
11445 - SPACER, CYLINDER BLOCK WATER JACKET
11445-0Y020

2NRVE..S403,413

 1
11452 - GUIDE, OIL LEVEL GAGE
11409-BZ160

2NRVE..S403,413

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
9004A-30058

2NRVE..S403,413

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
11459-BZ020

2NRVE..S403,413

 1
12101 - PAN SUB-ASSY, OIL
12101-BZ130

2NRVE..S403,413

 1
12101A - PLUG(FOR OIL PAN DRAIN)
9004A-34015

2NRVE..S403,413

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
9004A-43022

2NRVE..S403,413

 1
12101C - RING, O(FOR OIL PAN)
9004A-30061

2NRVE..S403,413

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-BZ040

2NRVE..S403,413

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-BZ140

2NRVE..S403,413

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
9004A-30048

2NRVE..S403,413

 2
15301A - RING, O(FOR OIL LEVEL GAGE)
9004A-30048

2NRVE..S403,413

 2
Common parts
90119-T0260
90126-06029
90404-T0005
Linked diagrams
1501
1701
