Toyota Lite/townace S412U ALTERNATOR

S412U-TQRFJD (2010)

Toyota Lite/Townace

Production Jun 2010 - Jul 2020

Engine 3SZVE

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

(0801-1404)

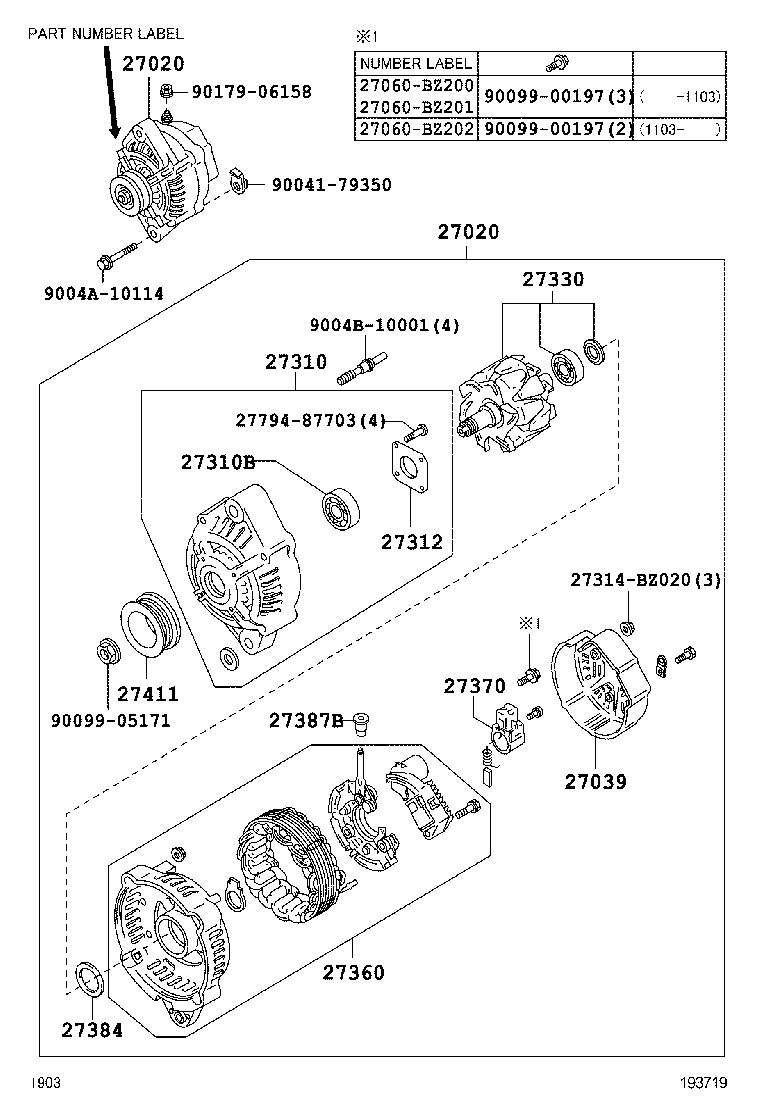

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-BZ202	3SZVE..S402,412 12V 80A,品番ﾗﾍﾞﾙ有り	03/2011 - 03/2014	1
27060-BZ290	3SZVE..S402,412 12V 80A,品番ﾗﾍﾞﾙ有り	04/2014 - 07/2020	1
27020 - ALTERNATOR ASSY
27060-BZ202	3SZVE..S402,412 12V 80A,品番ﾗﾍﾞﾙ有り	03/2011 - 03/2014	1
27060-BZ290	3SZVE..S402,412 12V 80A,品番ﾗﾍﾞﾙ有り	04/2014 - 07/2020	1
27039 - COVER, ALTERNATOR REAR END
27039-BZ030	3SZVE..S402,412 ASSY,NO.27060BZ202	03/2011 - 04/2014	1
27039-BZ040	3SZVE..S402,412 ASSY,NO.27060BZ290	04/2014 - 07/2020	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-BZ080	3SZVE..S402,412 ASSY,NO.27060BZ202	03/2011 - 04/2014	1
27310-BZ110	3SZVE..S402,412 ASSY,NO.27060BZ290	04/2014 - 07/2020	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
9004C-37008	3SZVE..S402,412 ASSY,NO.27060BZ290	04/2014 - 01/2015	1
9004C-37002	3SZVE..S402,412 ASSY,NO.27060BZ202	03/2011 - 04/2014	1
9004B-37012	3SZVE..S402,412	01/2015 - 02/2019	1
9004B-37016	3SZVE..S402,412	02/2019 - 07/2020	1
27312 - PLATE, RETAINER
27312-87704	3SZVE..S402,412	01/2008 - 07/2020	1
27330 - ROTOR ASSY, ALTERNATOR
27330-BZ030	3SZVE..S402,412 ASSY,NO.27060BZ202	03/2011 - 04/2014	1
27330-BZ060	3SZVE..S402,412 ASSY,NO.27060BZ290	04/2014 - 07/2020	1
27360 - COIL ASSY, ALTERNATOR
27360-BZ020	3SZVE..S402,412 ASSY,NO.27060BZ202	03/2011 - 04/2014	1
27360-BZ050	3SZVE..S402,412 ASSY,NO.27060BZ290	04/2014 - 07/2020	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-BZ030	3SZVE..S402,412	01/2008 - 07/2020	1
27384 - WASHER
27384-87702	3SZVE..S402,412	01/2008 - 04/2014	1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-BZ040	3SZVE..S402,412	01/2008 - 01/2015	1
27387-B1010	3SZVE..S402,412	01/2015 - 07/2020	1
27411 - PULLEY, ALTERNATOR
27411-BZ050	3SZVE..S402,412	01/2008 - 07/2020	1
Common parts
27314-BZ020
27794-87703
90041-79350
9004A-10114
9004B-10001
90099-00197
90099-05171
90179-06158

(1404-2007)

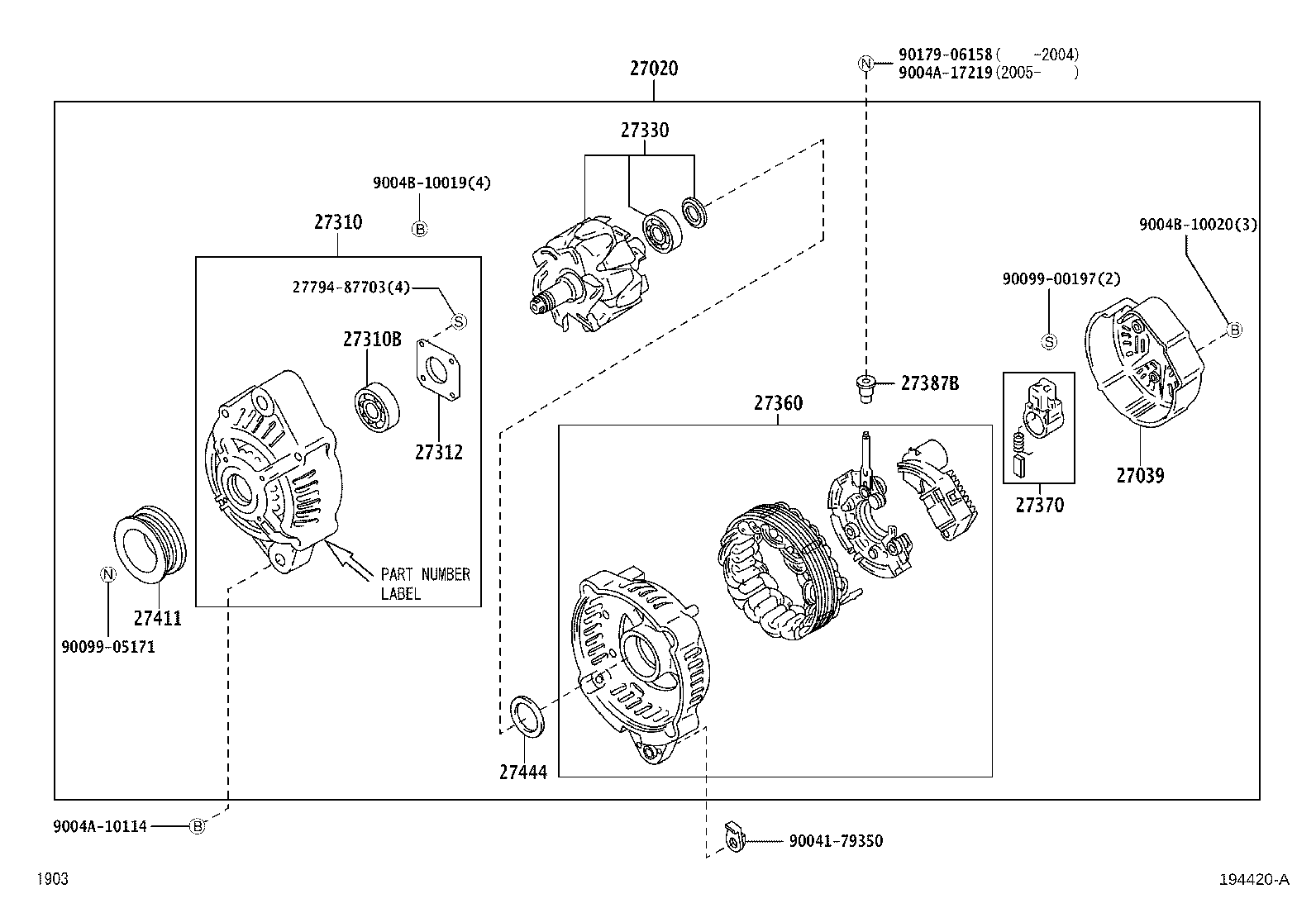

Click highlighted areas on diagram

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-BZ202	3SZVE..S402,412 12V 80A,品番ﾗﾍﾞﾙ有り	03/2011 - 03/2014	1
27060-BZ290	3SZVE..S402,412 12V 80A,品番ﾗﾍﾞﾙ有り	04/2014 - 07/2020	1
27039 - COVER, ALTERNATOR REAR END
27039-BZ030	3SZVE..S402,412 ASSY,NO.27060BZ202	03/2011 - 04/2014	1
27039-BZ040	3SZVE..S402,412 ASSY,NO.27060BZ290	04/2014 - 07/2020	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-BZ080	3SZVE..S402,412 ASSY,NO.27060BZ202	03/2011 - 04/2014	1
27310-BZ110	3SZVE..S402,412 ASSY,NO.27060BZ290	04/2014 - 07/2020	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
9004C-37008	3SZVE..S402,412 ASSY,NO.27060BZ290	04/2014 - 01/2015	1
9004C-37002	3SZVE..S402,412 ASSY,NO.27060BZ202	03/2011 - 04/2014	1
9004B-37012	3SZVE..S402,412	01/2015 - 02/2019	1
9004B-37016	3SZVE..S402,412	02/2019 - 07/2020	1
27312 - PLATE, RETAINER
27312-87704	3SZVE..S402,412	01/2008 - 07/2020	1
27330 - ROTOR ASSY, ALTERNATOR
27330-BZ030	3SZVE..S402,412 ASSY,NO.27060BZ202	03/2011 - 04/2014	1
27330-BZ060	3SZVE..S402,412 ASSY,NO.27060BZ290	04/2014 - 07/2020	1
27360 - COIL ASSY, ALTERNATOR
27360-BZ020	3SZVE..S402,412 ASSY,NO.27060BZ202	03/2011 - 04/2014	1
27360-BZ050	3SZVE..S402,412 ASSY,NO.27060BZ290	04/2014 - 07/2020	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-BZ030	3SZVE..S402,412	01/2008 - 07/2020	1
27387B - INSULATOR, ALTERNATOR TERMINAL
27387-BZ040	3SZVE..S402,412	01/2008 - 01/2015	1
27387-B1010	3SZVE..S402,412	01/2015 - 07/2020	1
27411 - PULLEY, ALTERNATOR
27411-BZ050	3SZVE..S402,412	01/2008 - 07/2020	1
27444 - PACKING, ALTERNATOR BEARING COVER
27444-BZ010	3SZVE..S402,412	04/2014 - 07/2020	1
Common parts
27794-87703
90041-79350
9004A-10114
9004A-17219
9004B-10019
9004B-10020
90099-00197
90099-05171
90179-06158
