S412U-TMRFJD (2010)
Toyota Lite/Townace
Production
Jun 2010
-
Jul 2020
Engine
3SZVE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0801-2007)

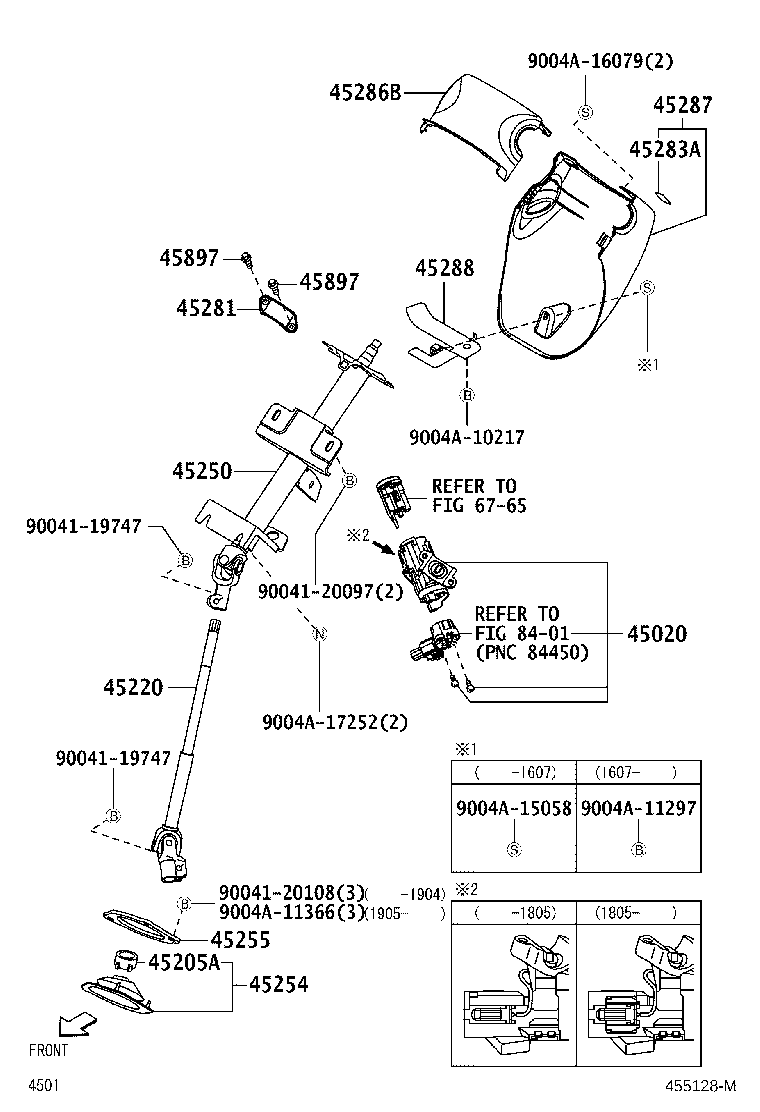

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020 - BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH | ||||
| 45020-BZ042 |
S402,412..5F |
1 | ||
| 45020-BZ040 |
S402,412..5F |
1 | ||
| 45020-BZ041 |
S402,412..5F |
1 | ||
| 45205A - BUSH(FOR STEERING COLUMN TUBE) | ||||
| 45273-B0040 |
S402,412 |
1 | ||
| 90043-85186 |
S402,412 |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-B5011 |
S402,412 |
1 | ||
| 45220-B5010 |
S402,412 |
1 | ||
| 45250 - COLUMN ASSY, STEERING | ||||
| 45250-BZ080 |
S402,412 |
1 | ||
| 45250-BZ081 |
S402,412 |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-BZ080 |
S402,412 |
1 | ||
| 45254-BZ081 |
S402,412 |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45223-BZ010 |
S402,412 |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45281-BZ110 |
S402,412 |
1 | ||
| 45281-B0010 |
S402,412 |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-BZ010 |
S402,412 |
1 | ||
| 45286B - COVER, STEERING COLUMN, UPR | ||||
| 45286-BZ090B0 |
S402,412 DK.GRAY,TRIM1# |
1 | ||
| 45287 - COVER, STEERING COLUMN, LWR | ||||
| 45287-BZ100B0 |
S402,412 DK.GRAY,TRIM1# |
1 | ||
| 45288 - PLATE, STEERING COLUMN COVER | ||||
| 76616-BZ010 |
S402,412 ｳｪﾙﾄﾞ ﾅｯﾄ 無し |
1 | ||
| 76616-BZ011 |
S402,412 ｳｪﾙﾄﾞ ﾅｯﾄ 有り |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-B2010 |
S402,412 |
2 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-B2010 |
S402,412 |
2 | ||
| Common parts | ||||
| 90041-19747 | ||||
| 90041-20097 | ||||
| 90041-20108 | ||||
| 9004A-10217 | ||||
| 9004A-11297 | ||||
| 9004A-11366 | ||||
| 9004A-15058 | ||||
| 9004A-16079 | ||||
| 9004A-17252 | ||||
| Linked diagrams | ||||
| 6765 | ||||
| 8401 | ||||
